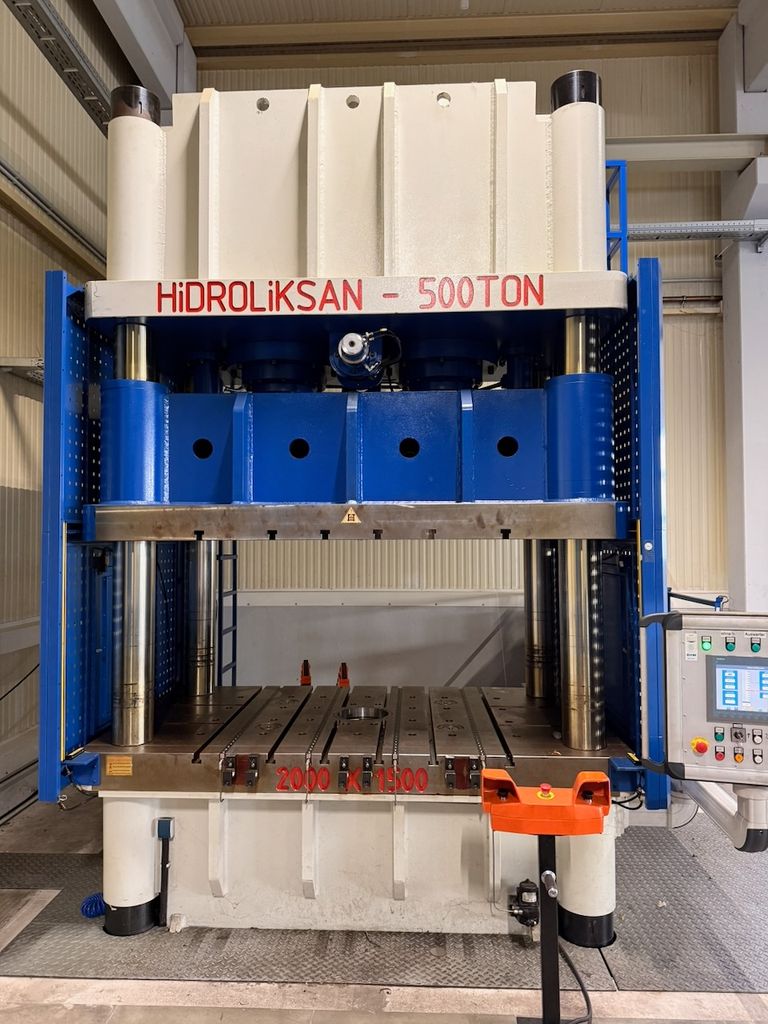

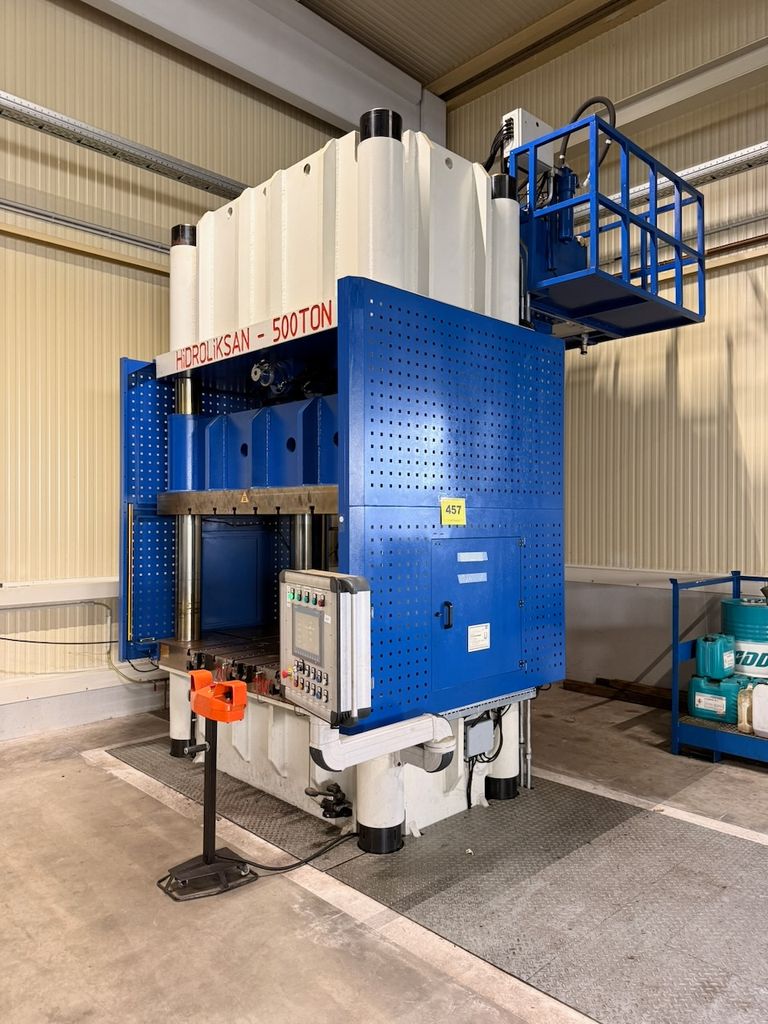

HIDROLIKSAN HCFP – 500-t Hydraulic Tryout / Test Press for Toolmaking and Forming Technology
The machine is a tryout/test press for tools in the field of forming, deep drawing, and toolmaking. It is fully functional, operational, and can be inspected and tested under power.

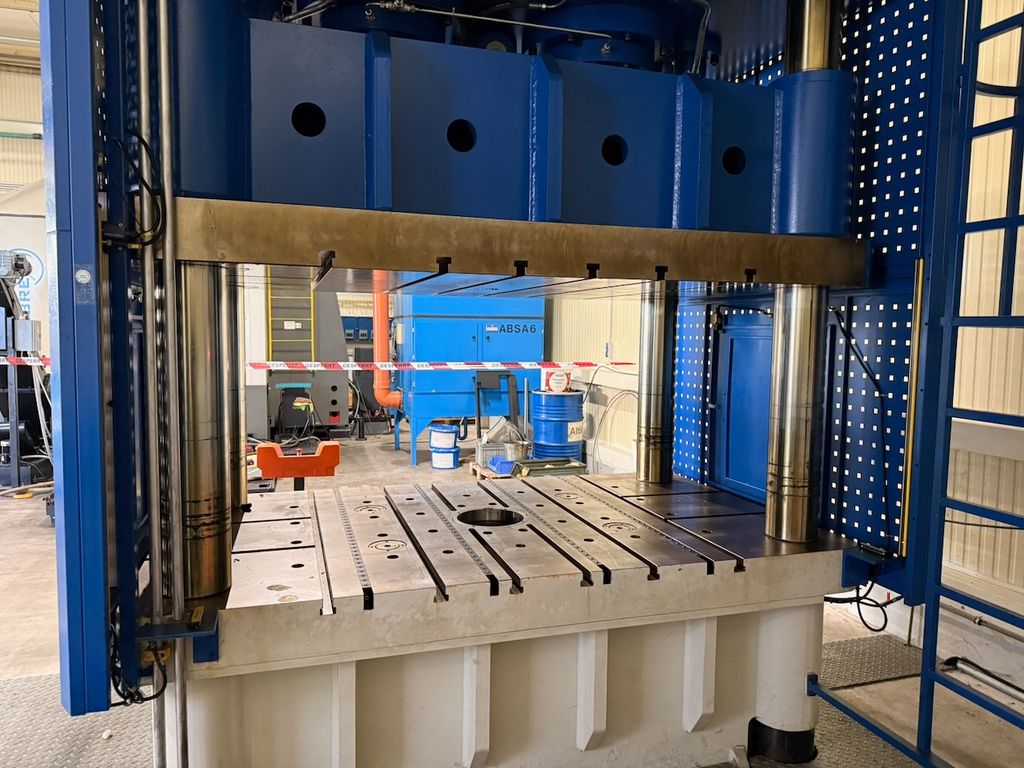

The press structure consists of a 4-column construction, a spacious working area, and a hydraulic system with REXROTH pump technology. Control is via SIEMENS S7-1200 with a touch panel and extensive parameterization options.
Scope of delivery & accessories
Tool sliding and lifting ball system GÜTHLE
Hydraulic foot pedal (GÜTHLE)

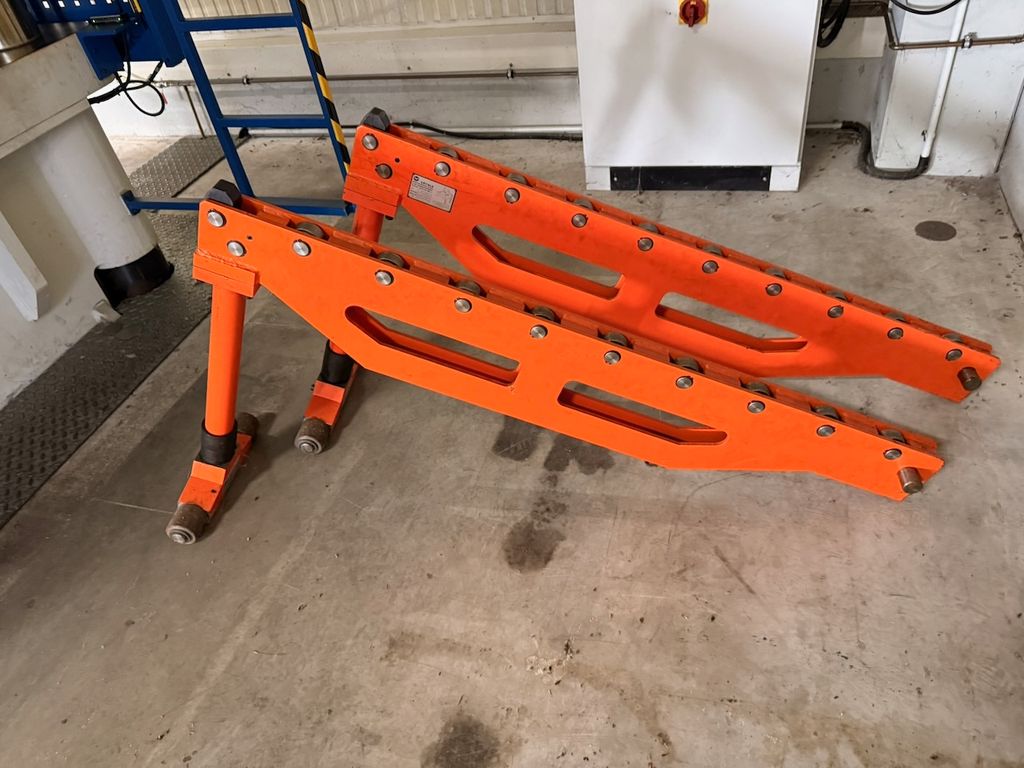

Roller block/carrier console 10 t (GÜTHLE)
4-channel tool holding system (length 1500 mm, 2 t per channel)
Complete REXROTH hydraulic unit
Air cooler
Foundation plans / manufacturer documentation
Condition of the machine
Fully functional
Hydraulic system tight and smooth running

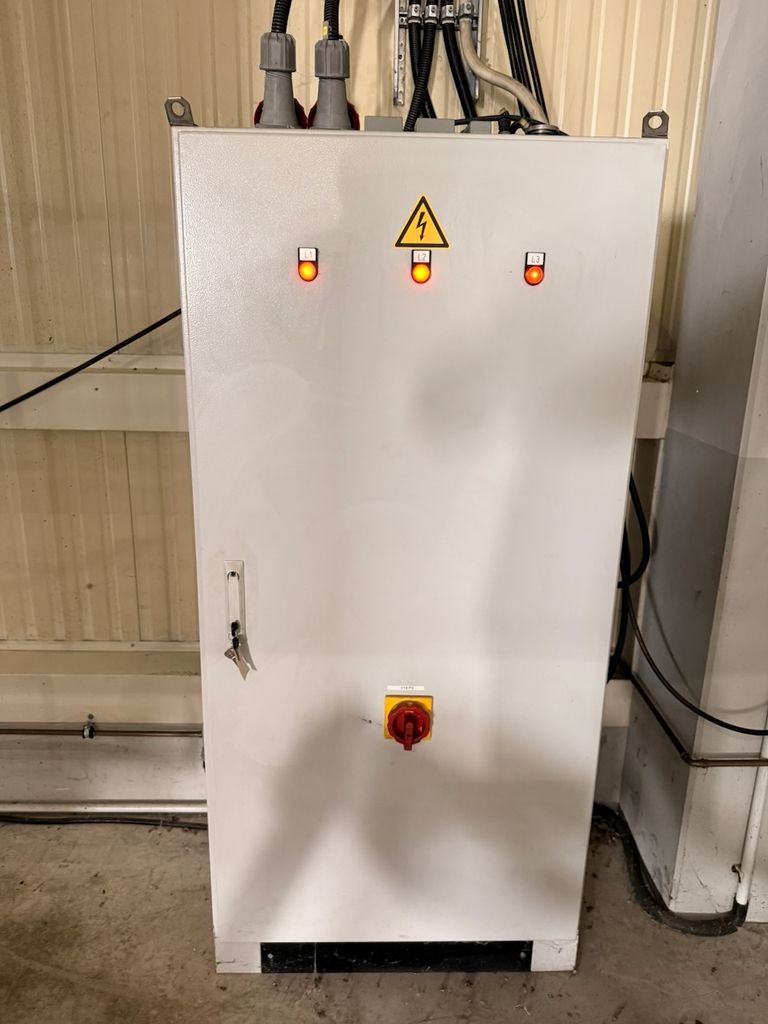

Control & electrical in good condition
Mechanically solid, no visible damage
Machine is in assembled condition and can be demonstrated under power.
International notice block (DE/EN)
German
Dismantling, deinstallation, loading, and transport are the sole responsibility of the buyer and at the buyer’s cost and risk. The seller does not provide personnel, equipment, lifting devices, or loading assistance. Pickup only by prior appointment.
English
Dismantling, deinstallation, loading, and transport are the sole responsibility of the buyer and at the buyer’s cost and risk. The seller does not provide personnel, equipment, lifting devices, or loading assistance. Pickup must be scheduled in advance. Sale is EXW (Incoterms 2020).
Location: Saxony/ Germany
The machine is a tryout/test press for tools in the field of forming, deep drawing, and toolmaking. It is fully functional, operational, and can be inspected and tested under power.
The press structure consists of a 4-column construction, a spacious working area, and a hydraulic system with REXROTH pump technology. Control is via SIEMENS S7-1200 with a touch panel and extensive parameterization options.
Scope of delivery & accessories
Tool sliding and lifting ball system GÜTHLE
Hydraulic foot pedal (GÜTHLE)
Roller block/carrier console 10 t (GÜTHLE)
4-channel tool holding system (length 1500 mm, 2 t per channel)
Complete REXROTH hydraulic unit
Air cooler
Foundation plans / manufacturer documentation
Condition of the machine
Fully functional
Hydraulic system tight and smooth running
Control & electrical in good condition
Mechanically solid, no visible damage
Machine is in assembled condition and can be demonstrated under power.
International notice block (DE/EN)
German
Dismantling, deinstallation, loading, and transport are the sole responsibility of the buyer and at the buyer’s cost and risk. The seller does not provide personnel, equipment, lifting devices, or loading assistance. Pickup only by prior appointment.
English
Dismantling, deinstallation, loading, and transport are the sole responsibility of the buyer and at the buyer’s cost and risk. The seller does not provide personnel, equipment, lifting devices, or loading assistance. Pickup must be scheduled in advance. Sale is EXW (Incoterms 2020).
Location: Saxony/ Germany
Press force:
Nominal force: 500 t
Max. press force at 250 bar: approx. 510 t
Dimensions & Weight:
Overall dimensions approx.: 3500 × 2400 × 6000 mm
Total weight: approx. 45,000 kg

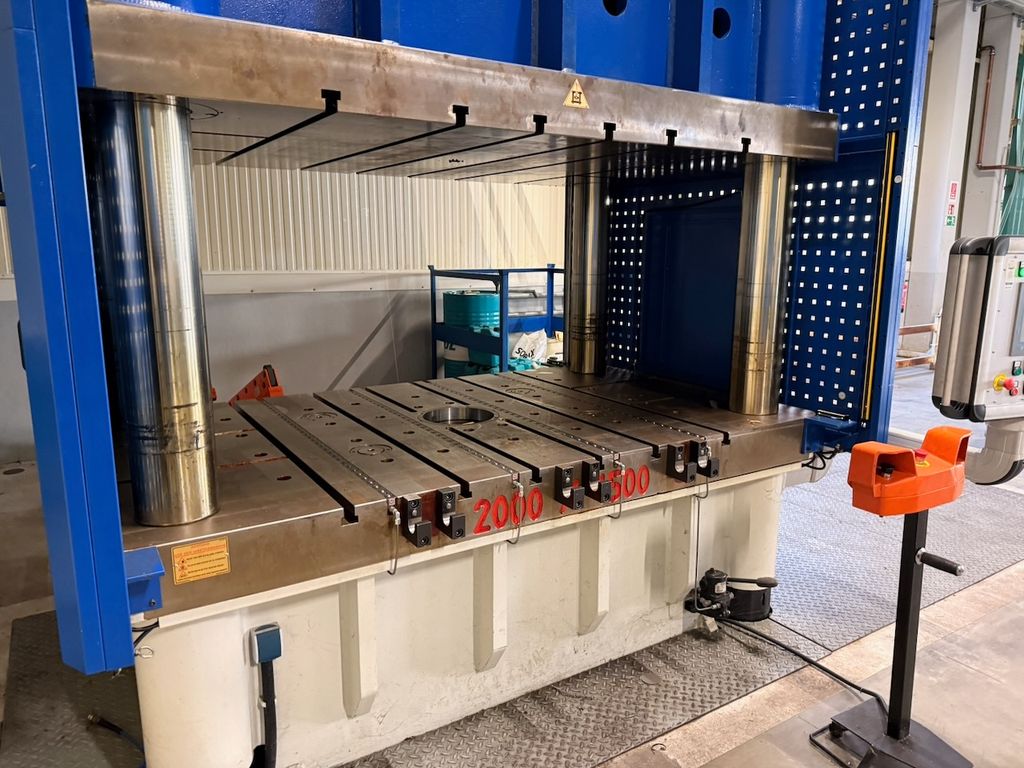

Working area:

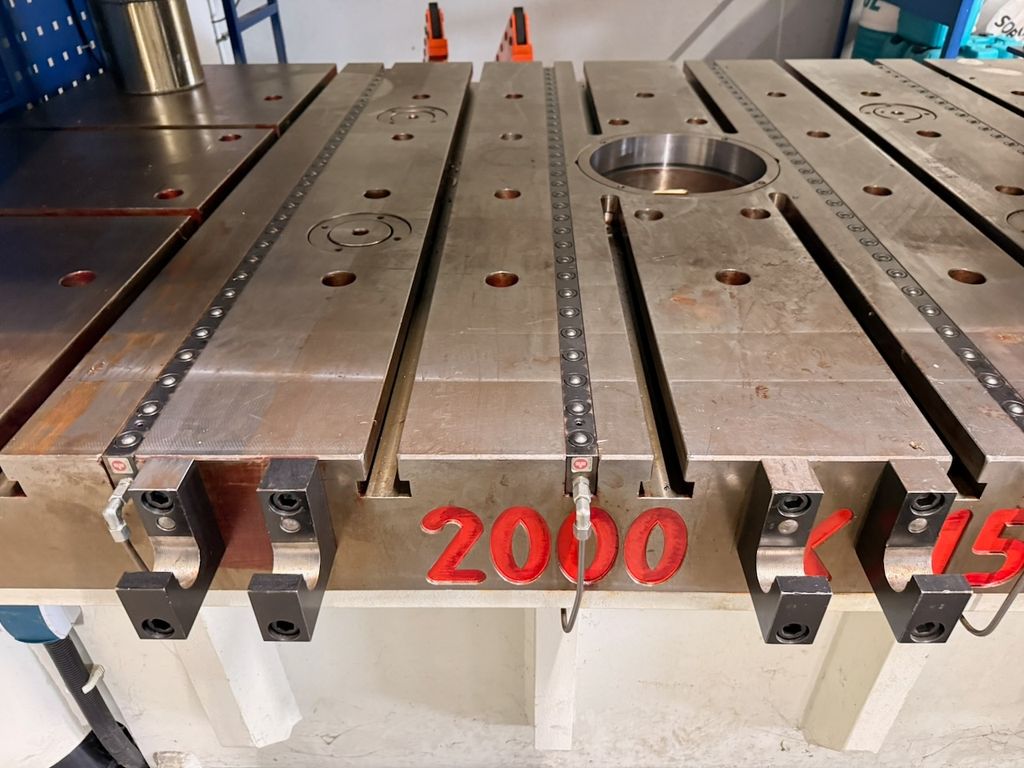

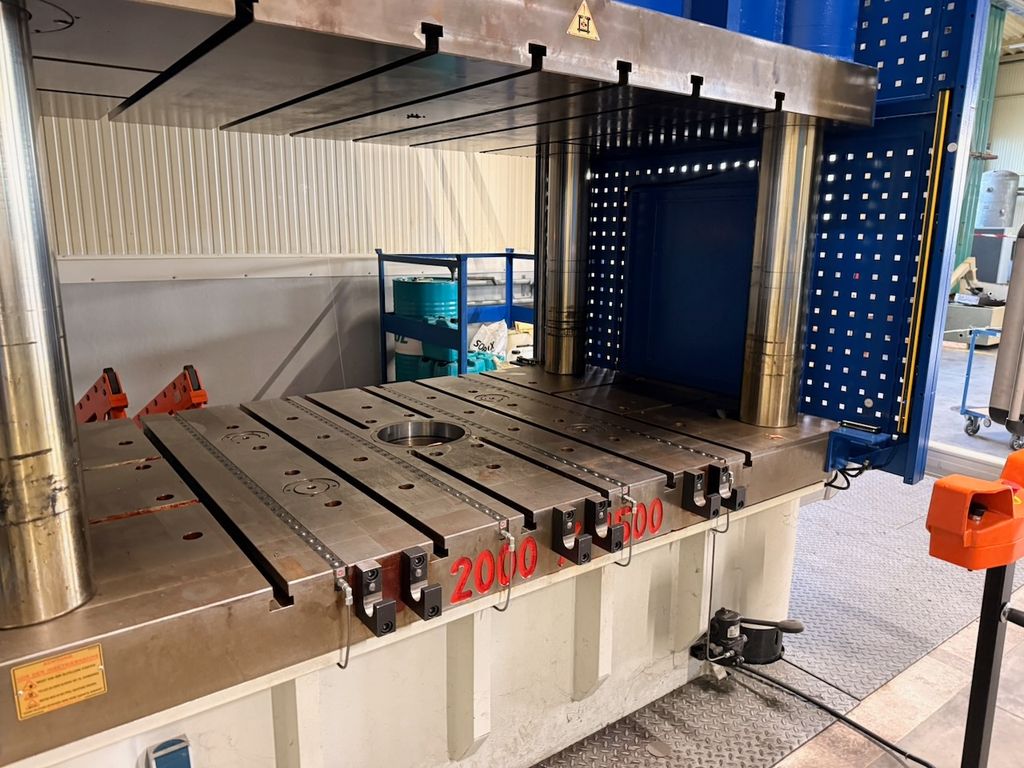

Table surface: 2000 × 1500 mm
Column distance inside: 2000 × 900 mm
Installation height: 1000 mm
Stroke: 800 mm (linearly adjustable via linear measurement system)
T-slots available (receptacles defined by customer)
Hydraulic system:

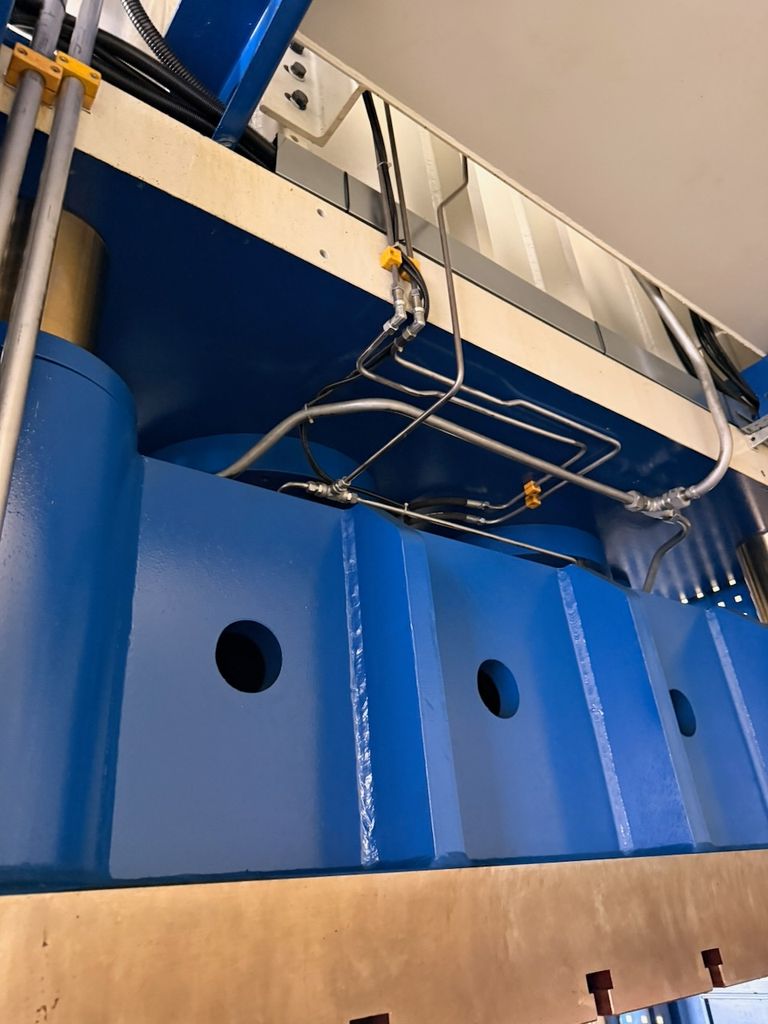

Main cylinder
Number: 2
Piston Ø: 340 mm
Rod Ø: 280 mm
Auxiliary/plan cylinder
Number: 2
Piston Ø: 120 mm
Rod Ø: 70 mm

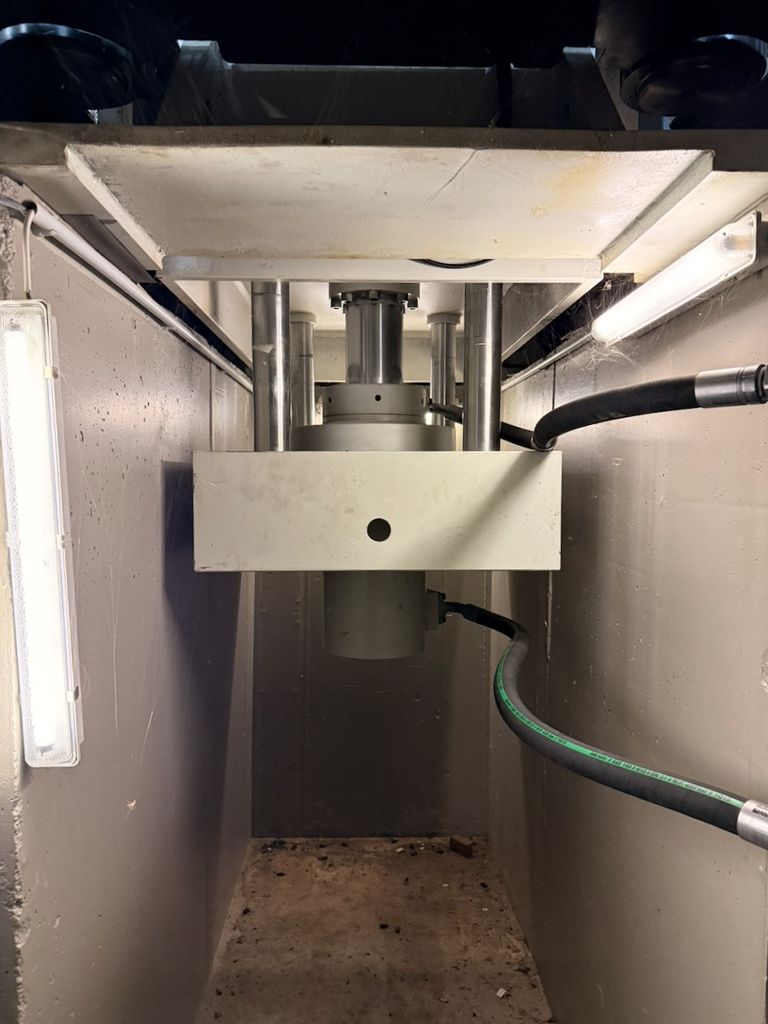

Draw cushion (Die Cushion)
Force: 150 t
Cylinder: 2 × Ø 310 × 210 mm
Stroke: 400 mm
Pumps and tank

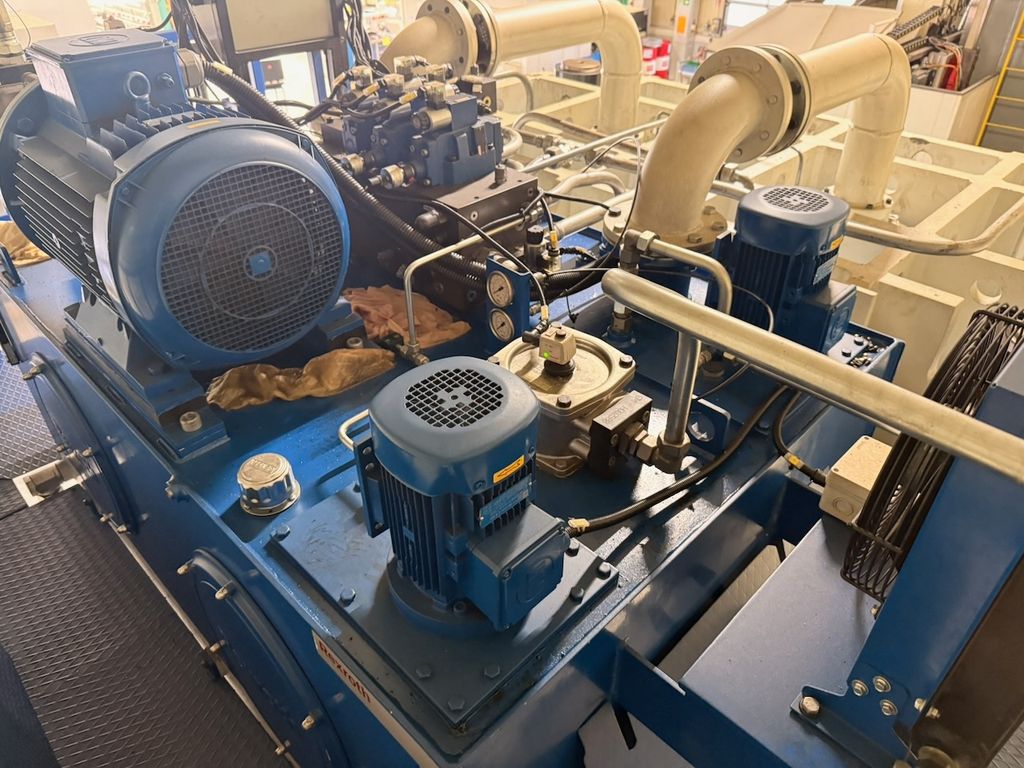

Pump: REXROTH axial piston pump, 100 ccm, approx. 150 L/min
Hydraulic tank: 1200 L
Oil system: 1000 L capacity
Speeds
Forward stroke: 120 mm/s
Return stroke: 150 mm/s
Working/pressure stroke: 12 mm/s
Control & Safety:

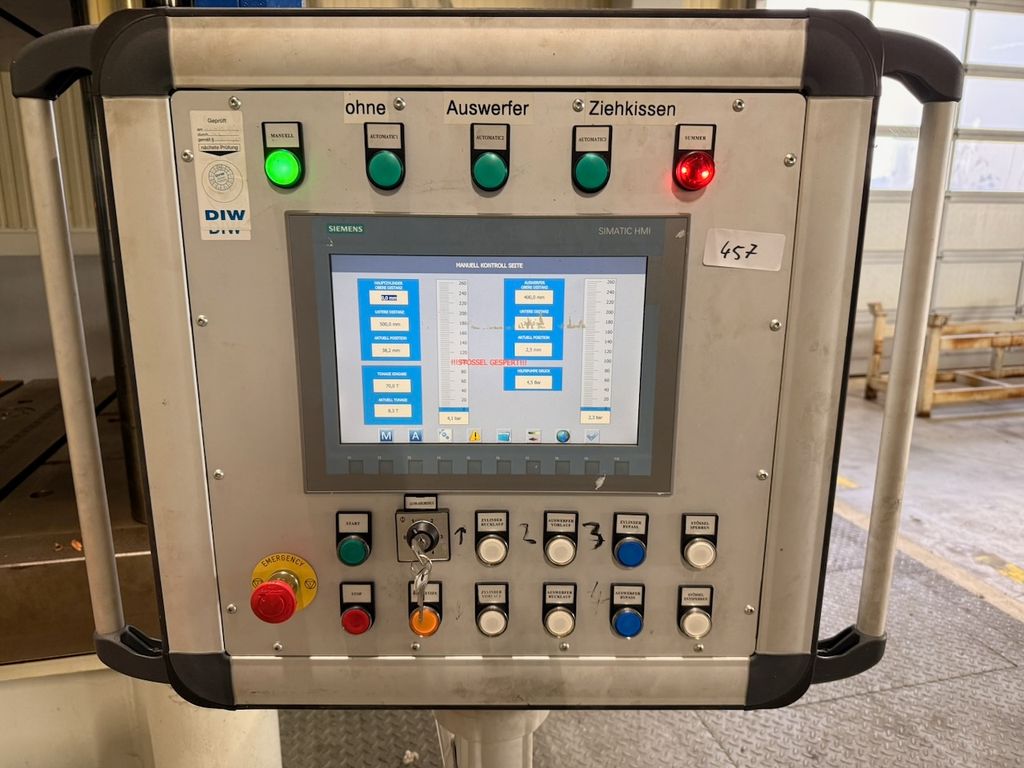

Control
SIEMENS S7-1200 + ET200S

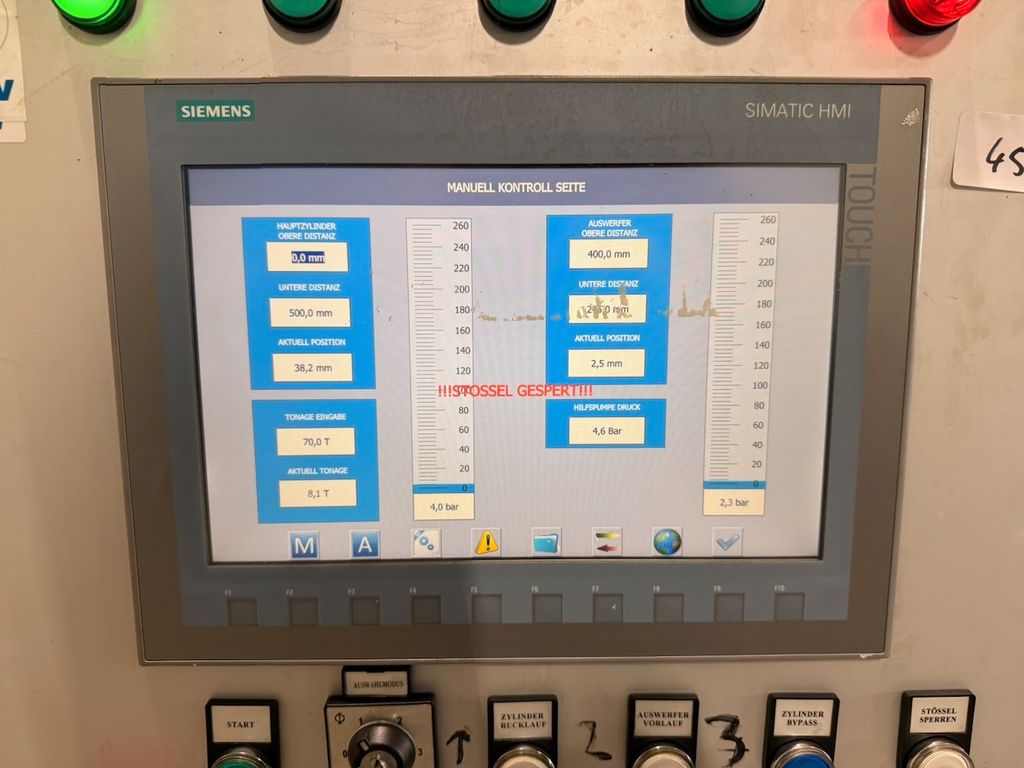

12" Touch Panel Schneider Electric
Operating modes:
Two-hand automatic
Setup mode
Single stroke
Stroke without draw cushion
Deep drawing mode with draw cushion
Measurement & safety components
Linear measurement system Novatechnik (63 Bit) for ram & draw cushion

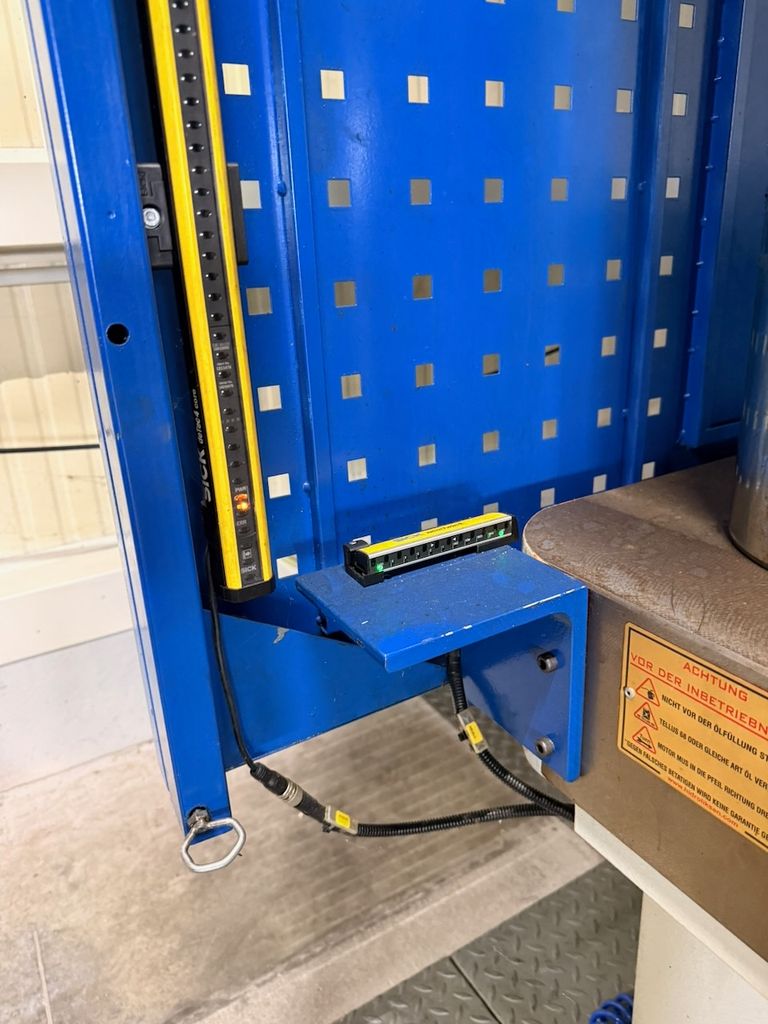

Light barriers SICK front and rear (Height: 1050 mm)
Side protective grids with limit switch
Remote maintenance via Ethernet possible
Movable control panel
Nominal force: 500 t
Max. press force at 250 bar: approx. 510 t
Dimensions & Weight:
Overall dimensions approx.: 3500 × 2400 × 6000 mm
Total weight: approx. 45,000 kg
Working area:
Table surface: 2000 × 1500 mm
Column distance inside: 2000 × 900 mm
Installation height: 1000 mm
Stroke: 800 mm (linearly adjustable via linear measurement system)
T-slots available (receptacles defined by customer)
Hydraulic system:
Main cylinder
Number: 2
Piston Ø: 340 mm
Rod Ø: 280 mm
Auxiliary/plan cylinder
Number: 2
Piston Ø: 120 mm
Rod Ø: 70 mm
Draw cushion (Die Cushion)
Force: 150 t
Cylinder: 2 × Ø 310 × 210 mm
Stroke: 400 mm
Pumps and tank
Pump: REXROTH axial piston pump, 100 ccm, approx. 150 L/min
Hydraulic tank: 1200 L
Oil system: 1000 L capacity
Speeds
Forward stroke: 120 mm/s
Return stroke: 150 mm/s
Working/pressure stroke: 12 mm/s
Control & Safety:
Control
SIEMENS S7-1200 + ET200S
12" Touch Panel Schneider Electric
Operating modes:
Two-hand automatic
Setup mode
Single stroke
Stroke without draw cushion
Deep drawing mode with draw cushion
Measurement & safety components
Linear measurement system Novatechnik (63 Bit) for ram & draw cushion
Light barriers SICK front and rear (Height: 1050 mm)
Side protective grids with limit switch
Remote maintenance via Ethernet possible
Movable control panel
| Technical characteristic | Value |
|---|---|
| Condition | Used |
| Age rating | No age restriction |
| Model | HCFP |
| Manufacturer | HIDROLIKSAN |
| Content | 1 piece |
| Weight | 45000000 g |
| Dimensions | 3500×2400×6000mm |
| Item ID | 1234598303 |
| Item ID | 1234598303 |
HIDROLIKSAN
HIDROLIKSAN HCFP hydraulic press 500 t, tryout / test press
Item number MPT-014
EAN
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 80,000.00
*
Content
1 piece
immediately available
