Nanometer multi-channel system
Capacitive displacement sensors are designed for measurement tasks with the highest resolutions. The capacitive multi-channel system capaNCDT 6500 is suitable for stable measurements in the sub-nanometer range. The controller offers a maximum data rate of 7.8 kHz (digital, with up to four channels) or 8.5 kHz cutoff frequency. In addition to the analog output, EtherCAT(R) is available as an interface. EtherCAT enables error-free data transmission in real time, quick integration into the existing measurement environment, and synchronization of two systems. The configuration of the capaNCDT 6500 is easily done via a web browser.
Capacitive displacement sensors are designed for measurement tasks with the highest resolutions. The capacitive multi-channel system capaNCDT 6500 is suitable for stable measurements in the sub-nanometer range. The controller offers a maximum data rate of 7.8 kHz (digital, with up to four channels) or 8.5 kHz cutoff frequency. In addition to the analog output, EtherCAT(R) is available as an interface. EtherCAT enables error-free data transmission in real time, quick integration into the existing measurement environment, and synchronization of two systems. The configuration of the capaNCDT 6500 is easily done via a web browser.
Measuring ranges (mm): 0.05 | 0.2 | 0.5 | 0.8 | 1 | 2 | 3 | 5 | 10 Resolution max 0.0375 nm Linearity max 0.01 µm Cut-off frequency 8.5 kHz (-3dB) Data rate (digital output) 7.8 kHz Analog output (voltage / current) Ethernet, EtherCAT Modular - up to eight measuring channels External or internal preamplifier Easy configuration via web interface
| Technical characteristic | Value |
|---|---|
| Condition | Used |
| Age rating | No age restriction |
| Model | capaNCDT6500 |
| Manufacturer | MICRO-EPSILON-MESSTECHNIK GmbH & Co. KG |
| Content | 1 piece |
| Weight | 1400 g |
| Item ID | 1234585867 |
| Item ID | 1234585867 |
MICRO-EPSILON-MESSTECHNIK GmbH & Co. KG

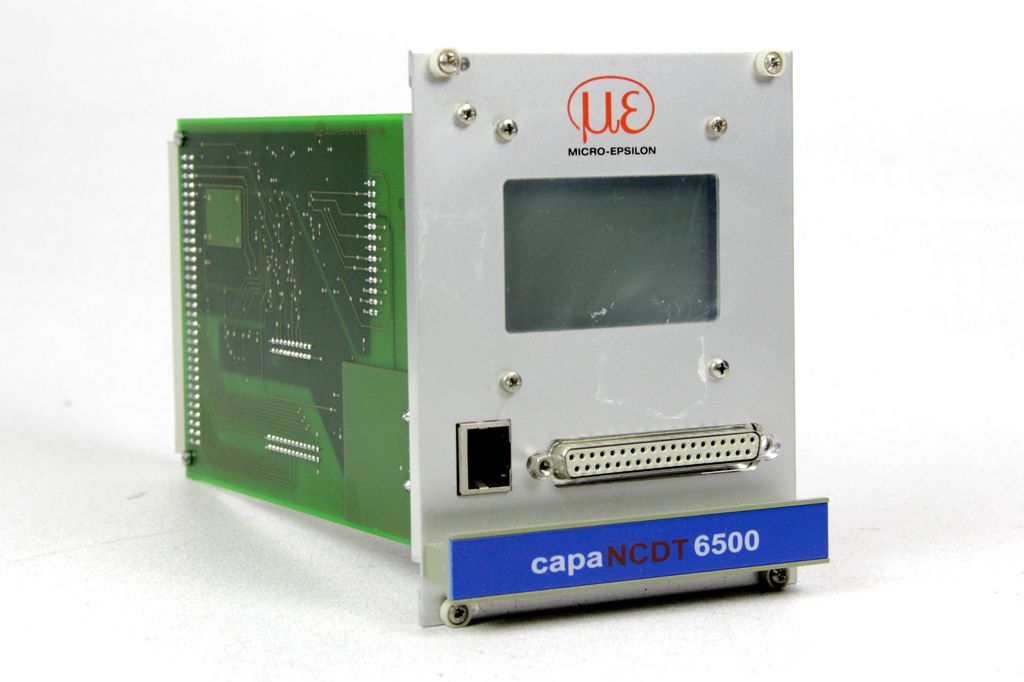

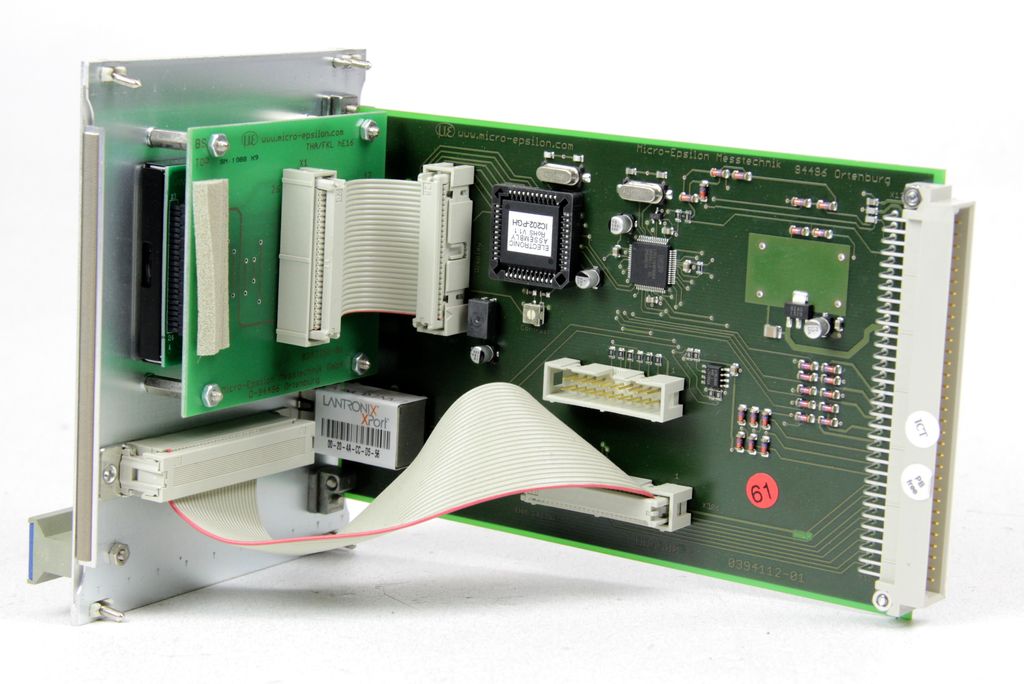

Micro-Epsilon Capacitive Multichannel System capaNCDT 6500
Item number VN-17641
EAN
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 167.23
*
Content
1 piece
immediately available
