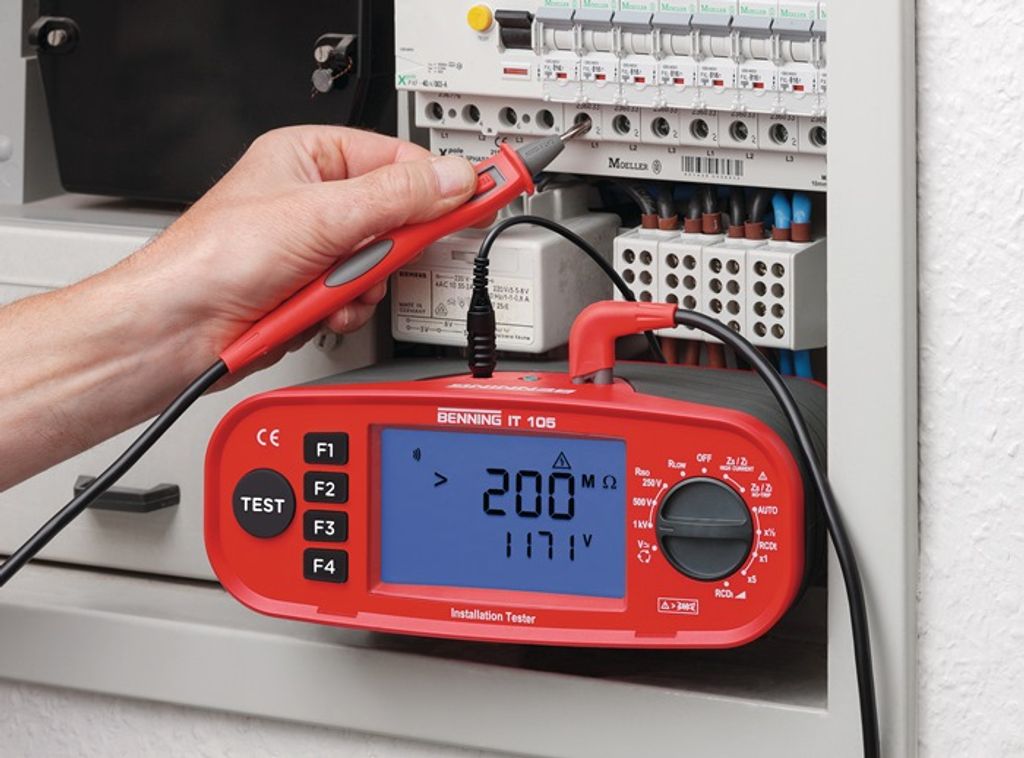

For simple and efficient safety inspections of electrical installations after installation, modification, or as regular repeat inspections, according to DIN VDE 0100-600 (IEC 60364-6) and DIN VDE 0105-100 (EN 50110)
Measurements:
Low resistance (200 mA test current) · Insulation resistance (250 V/ 500 V/ 1000 V test voltage) · Line impedance (L-N/ L) and short-circuit current (PSC) · Loop impedance (L-PE) without FI/ RCD tripping and fault current (PFC) · Testing of FI/ RCD circuit breakers with tripping time (Auto, ½ x, 1 x, 5 x IdN) and tripping current (Ramp) · Test current sinusoidal (AC) and pulsating direct current (A), standard and delayed (S) · Voltage up to 440 V · Frequency · Rotating field
Special product advantages:
extra large graphic display (95 x 55 mm) with backlight · Test probe with TEST button to start the measurement process · AUTO-start function for low resistance, loop, and line impedance measurement · LOCK function (continuous measurement) of insulation resistance · Compensation (zero adjustment) of the measuring lines up to 10 Ω for RPE measurement
Scope of delivery:

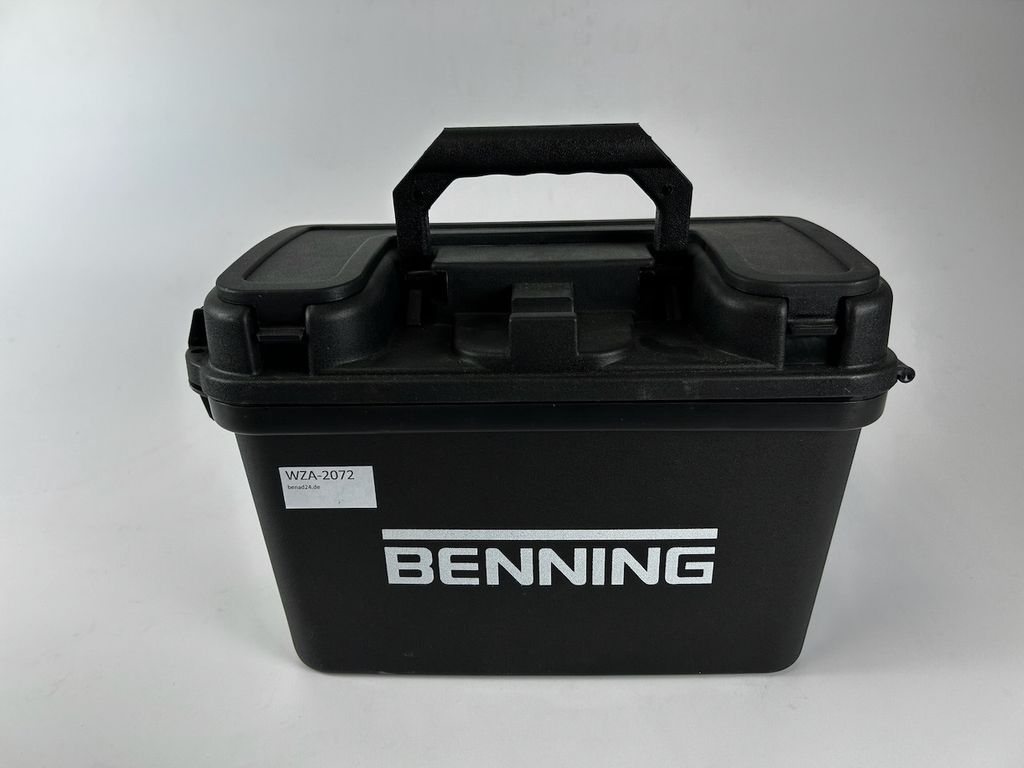

Robust hard-shell case
Test probe with TEST button
Set of test probes/crocodile clips
Test lead with protective contact plug
Shoulder strap
6 x 1.5 V AA batteries
Measurements:
Low resistance (200 mA test current) · Insulation resistance (250 V/ 500 V/ 1000 V test voltage) · Line impedance (L-N/ L) and short-circuit current (PSC) · Loop impedance (L-PE) without FI/ RCD tripping and fault current (PFC) · Testing of FI/ RCD circuit breakers with tripping time (Auto, ½ x, 1 x, 5 x IdN) and tripping current (Ramp) · Test current sinusoidal (AC) and pulsating direct current (A), standard and delayed (S) · Voltage up to 440 V · Frequency · Rotating field
Special product advantages:
extra large graphic display (95 x 55 mm) with backlight · Test probe with TEST button to start the measurement process · AUTO-start function for low resistance, loop, and line impedance measurement · LOCK function (continuous measurement) of insulation resistance · Compensation (zero adjustment) of the measuring lines up to 10 Ω for RPE measurement

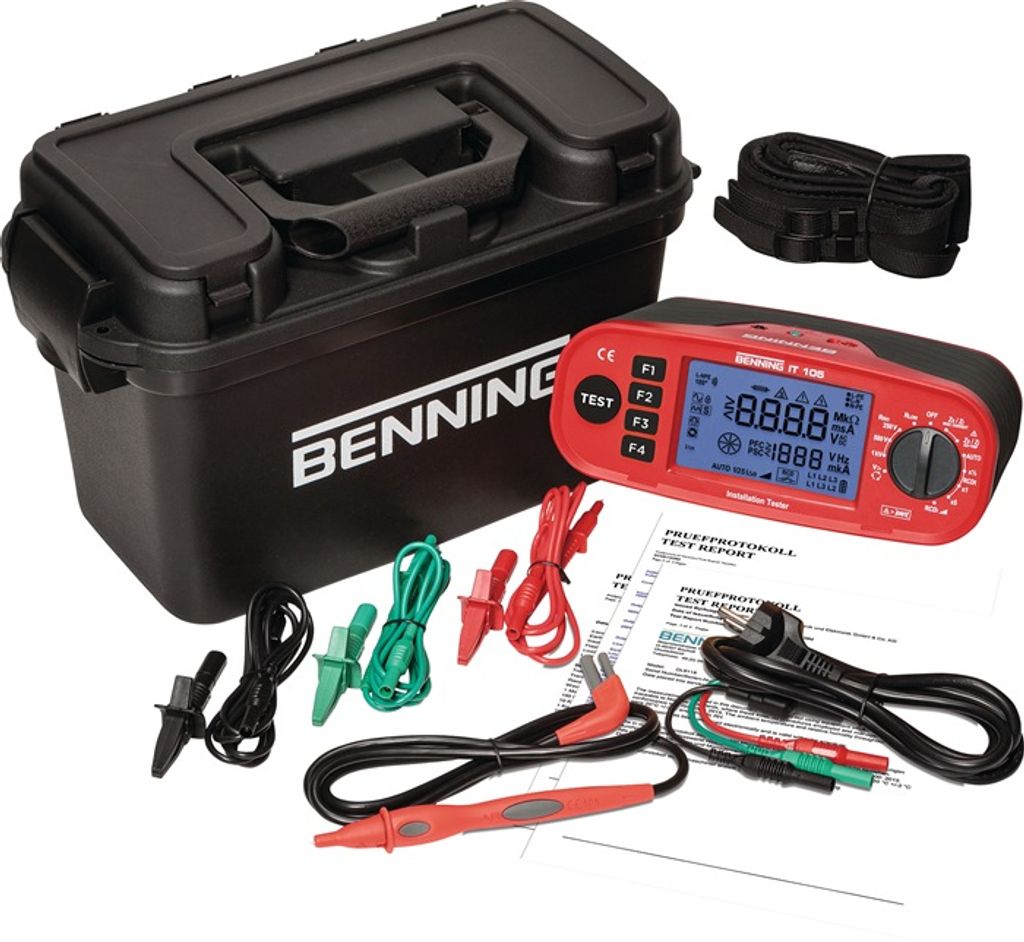

Scope of delivery:

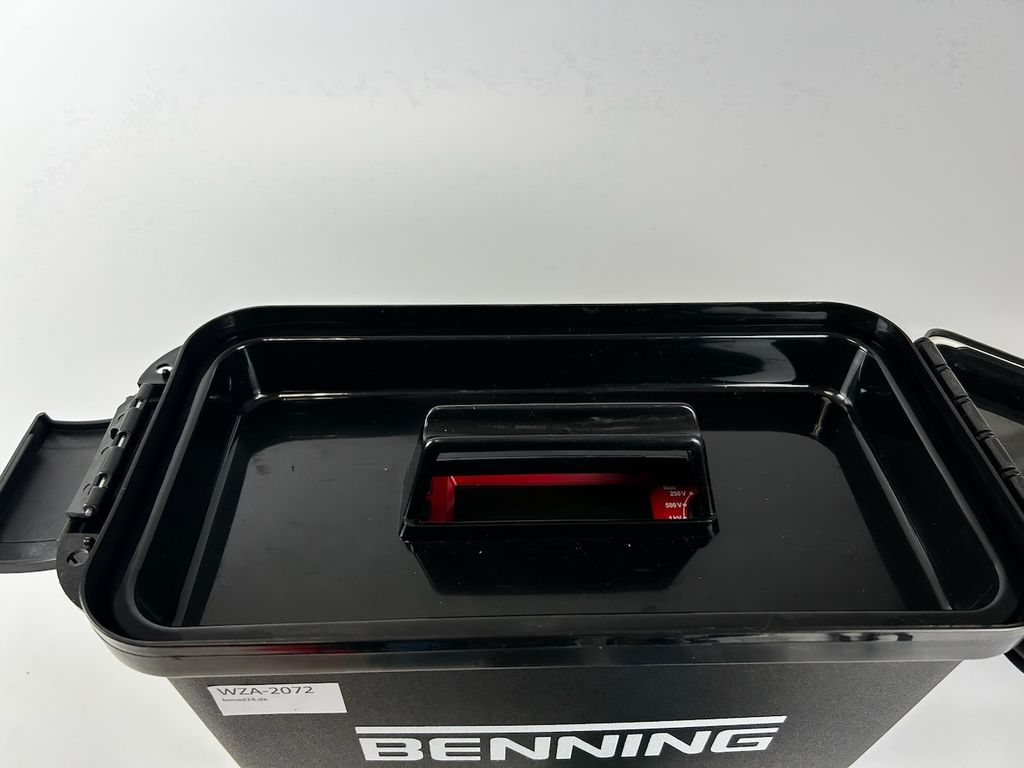

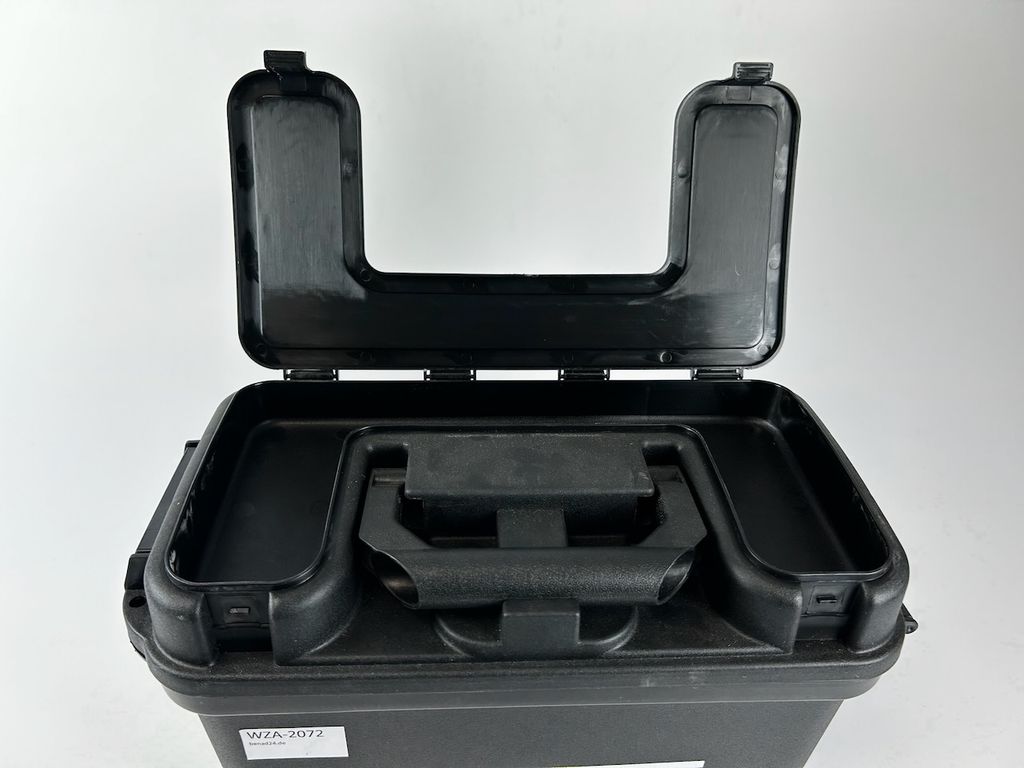

Robust hard-shell case
Test probe with TEST button

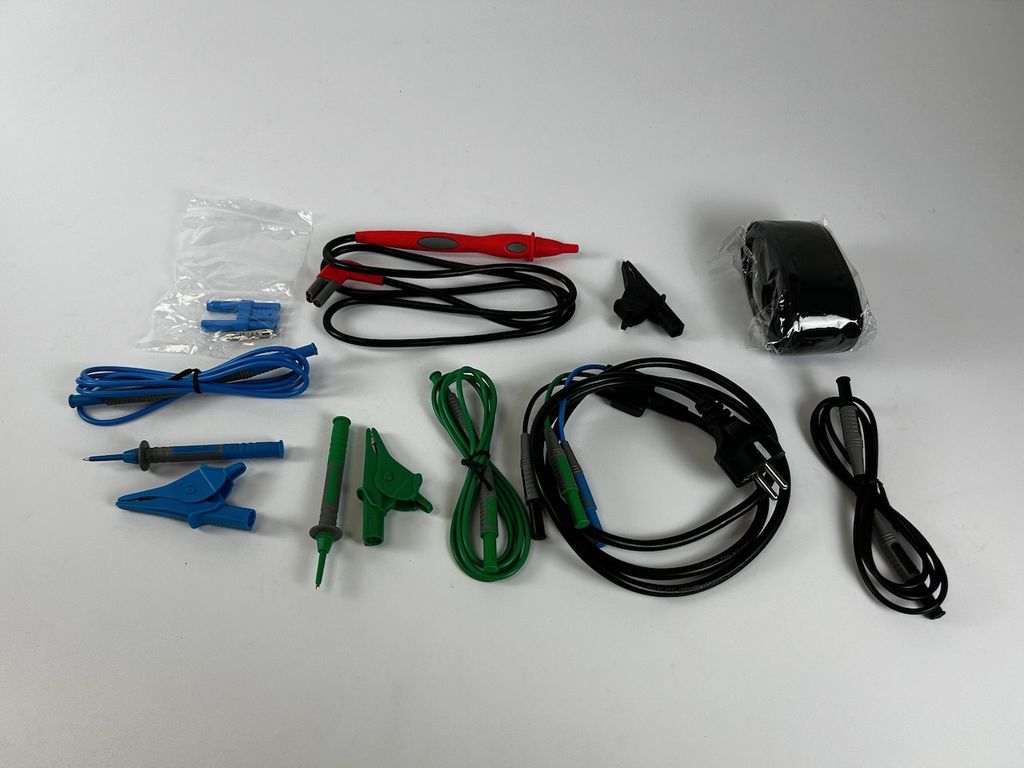

Set of test probes/crocodile clips
Test lead with protective contact plug
Shoulder strap
6 x 1.5 V AA batteries
Display: Extra large graphic display (95 x 55 mm) with backlight
Measurement functions:
Low resistance of protective conductor and equipotential bonding connections (test current: 200 mA)
Insulation resistance with test voltage of 250 V, 500 V, and 1000 V
Loop impedance (L-PE) without RCD tripping (NO-TRIP) with simultaneous display of fault current (PFC)
Line impedance (L-N/L) with high test current (HIGH CURRENT) with simultaneous display of short-circuit current (PSC)
Testing of RCDs (standard and delayed) with sinusoidal (AC) and pulsating test current (A)
Automatic measurement of trip time (½ x, 1 x, and 5 x IΔN) and trip current using ramp method
Voltage and frequency measurement up to 440 V
Phase rotation direction testing in three-phase networks (L1-L2-L3)
Special functions:
Test probe with TEST button to start the measurement process
AUTO-start function for low resistance, loop, and line impedance measurement
LOCK function (continuous measurement) of insulation resistance
Compensation (zero adjustment) of the measuring leads up to 10 Ω
Measurement functions:
Low resistance of protective conductor and equipotential bonding connections (test current: 200 mA)
Insulation resistance with test voltage of 250 V, 500 V, and 1000 V
Loop impedance (L-PE) without RCD tripping (NO-TRIP) with simultaneous display of fault current (PFC)
Line impedance (L-N/L) with high test current (HIGH CURRENT) with simultaneous display of short-circuit current (PSC)
Testing of RCDs (standard and delayed) with sinusoidal (AC) and pulsating test current (A)
Automatic measurement of trip time (½ x, 1 x, and 5 x IΔN) and trip current using ramp method
Voltage and frequency measurement up to 440 V
Phase rotation direction testing in three-phase networks (L1-L2-L3)
Special functions:
Test probe with TEST button to start the measurement process
AUTO-start function for low resistance, loop, and line impedance measurement
LOCK function (continuous measurement) of insulation resistance
Compensation (zero adjustment) of the measuring leads up to 10 Ω
| Condition | New |
| Age rating | No age restriction |
| Variation ID | |
| Model | IT 105 |
| Manufacturer | Benning |
| Content | 1 piece |
| Weight | 350000 g |
| Dimensions | 390×210×270mm |
| Item ID | 1234595929 |
| Item ID | 1234595929 |
Benning

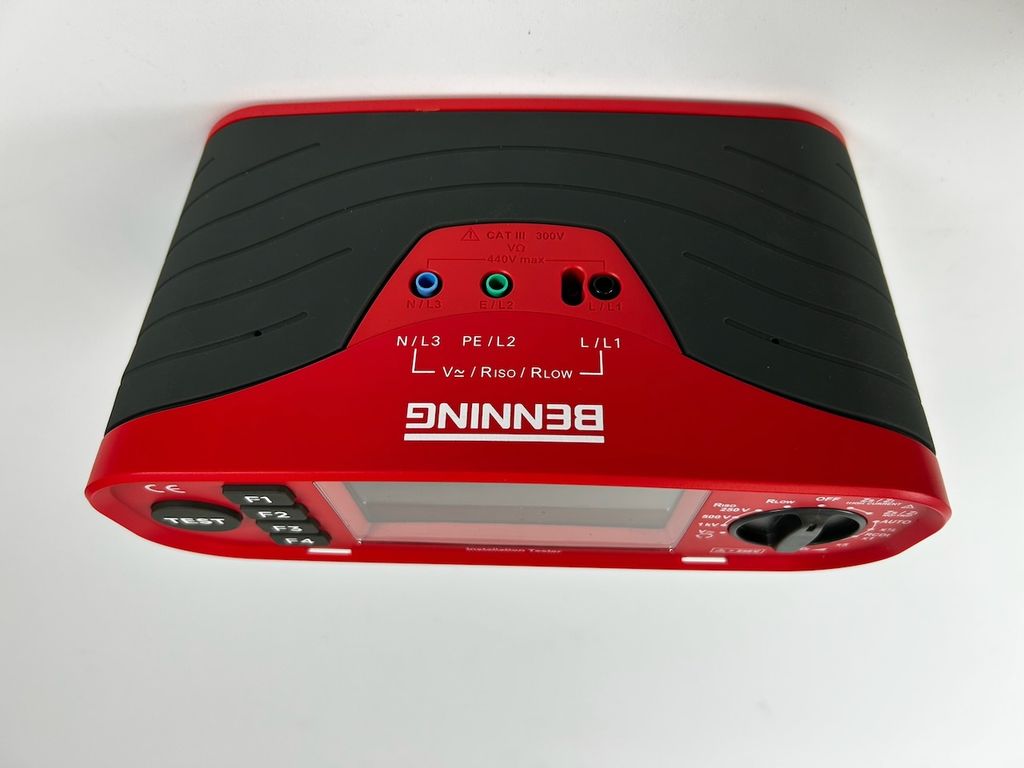

BENNING IT 105 Installation Tester for Testing Electrical Systems
Item number WZA-2072
EAN 4014651441057
Condition New
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 587.39
*
Content
1 piece
immediately available
