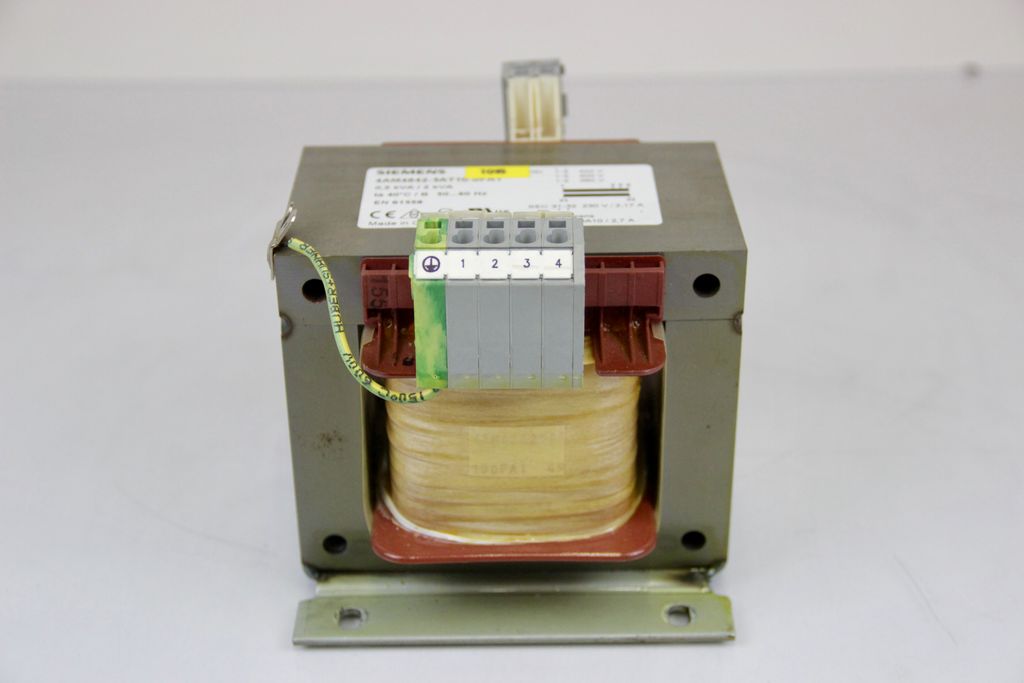

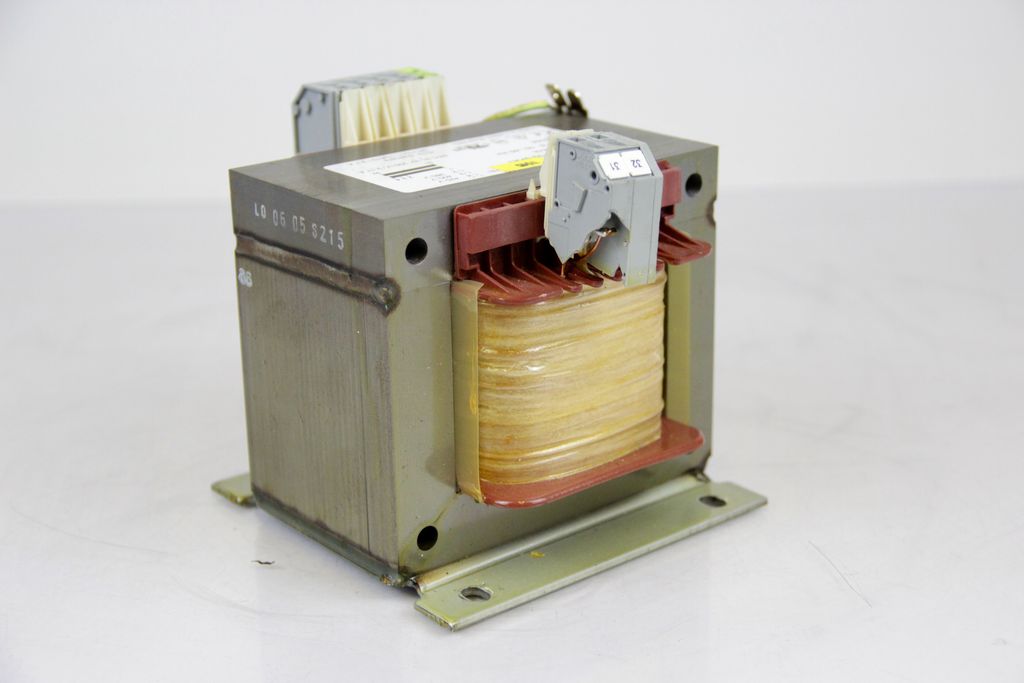

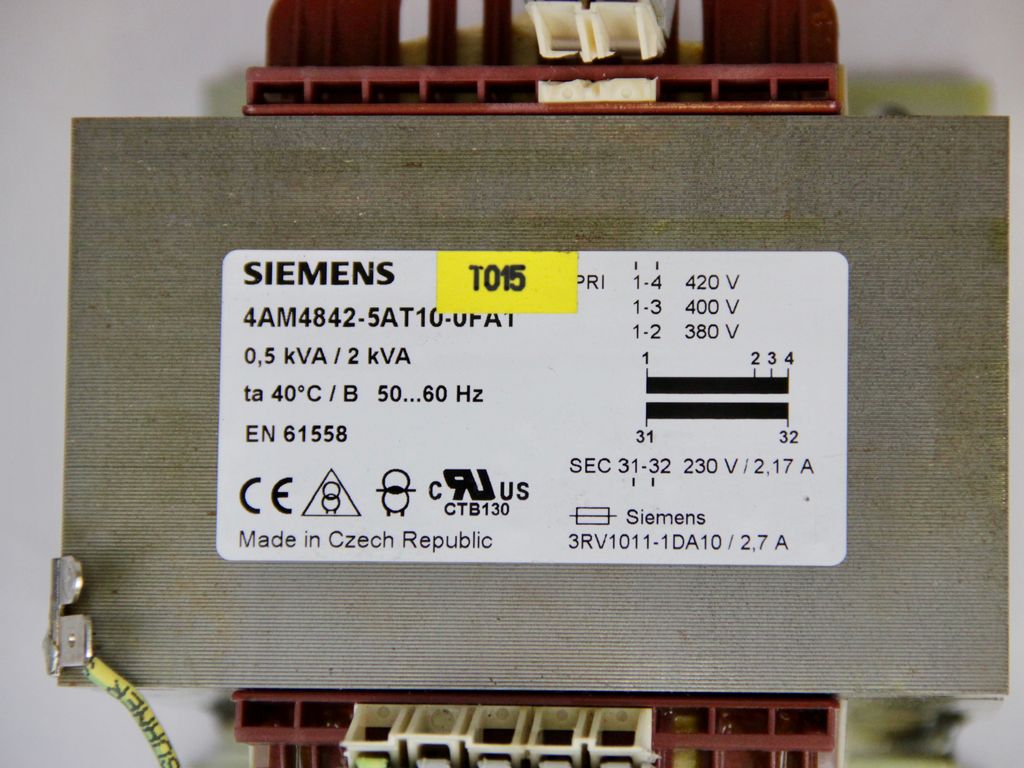

The Siemens 4AM4842-5AT10-0FA1 is a single-phase control and isolation transformer from the 4AM/SIDAC series. It is used for safe voltage conversion and galvanic isolation in control circuits and industrial applications.
Features
• Manufacturer: Siemens AG
• Type: Control and isolation transformer
• Series: 4AM SIDAC
• Design: Compact, easy to install
• Connection: Screw or spring terminals (depending on version)
• Standards: EN 61558-2-1, -2-2, -2-4, UL/CSA recognized
• Insulation class: B (40 °C ambient temperature)
• Protection class: IP00
Features
• Manufacturer: Siemens AG
• Type: Control and isolation transformer
• Series: 4AM SIDAC
• Design: Compact, easy to install
• Connection: Screw or spring terminals (depending on version)
• Standards: EN 61558-2-1, -2-2, -2-4, UL/CSA recognized
• Insulation class: B (40 °C ambient temperature)
• Protection class: IP00
Phases: 1
Rated power: 500 VA (0.5 kVA)
Short-term apparent power: 2000 VA (2 kVA)
Primary voltage: 400 V +5% (also 380/420 V)
Secondary voltage: 230 V
Secondary current: 2.17 A
Frequency: 50-60 Hz
Efficiency: approx. 91%
Short-circuit voltage: 3.8%
Circuit type: lio
Rated power: 500 VA (0.5 kVA)
Short-term apparent power: 2000 VA (2 kVA)
Primary voltage: 400 V +5% (also 380/420 V)
Secondary voltage: 230 V
Secondary current: 2.17 A
Frequency: 50-60 Hz
Efficiency: approx. 91%
Short-circuit voltage: 3.8%
Circuit type: lio
| Technical characteristic | Value |
|---|---|
| Condition | Used |
| Age rating | No age restriction |
| Model | 4AM4842-5AT10-0FA1 |
| Manufacturer | SIEMENS |
| Content | 1 piece |
| Weight | 6640 g |
| Dimensions | 120×120×125mm |
| Item ID | 1234598082 |
| Item ID | 1234598082 |
SIEMENS
Siemens 4AM4842-5AT10-0FA1 Transformer 1-Phase 0.5kVA/2kVA 400V→230V
Item number KKK-1595
EAN
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 70.00
*
Content
1 piece
Unit price
EUR 70.00 / piece
immediately available
