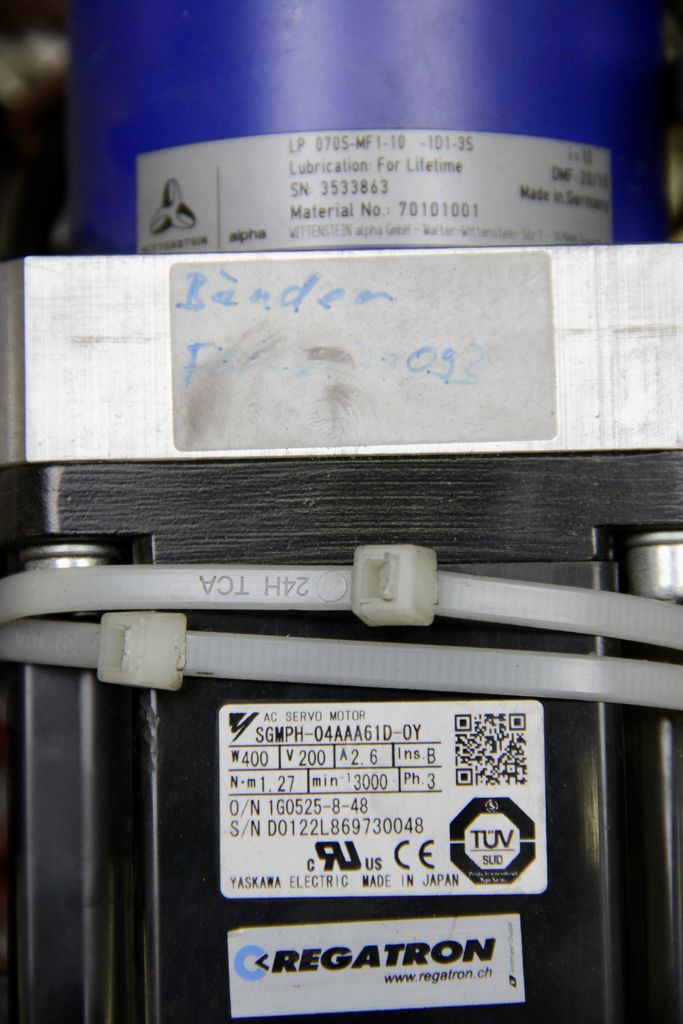

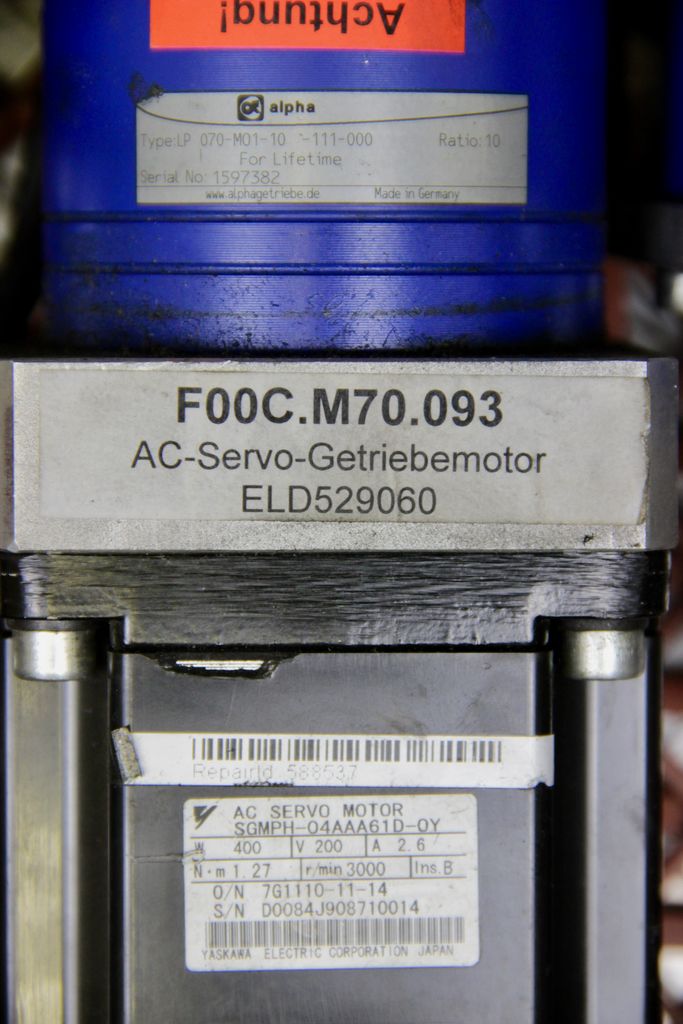

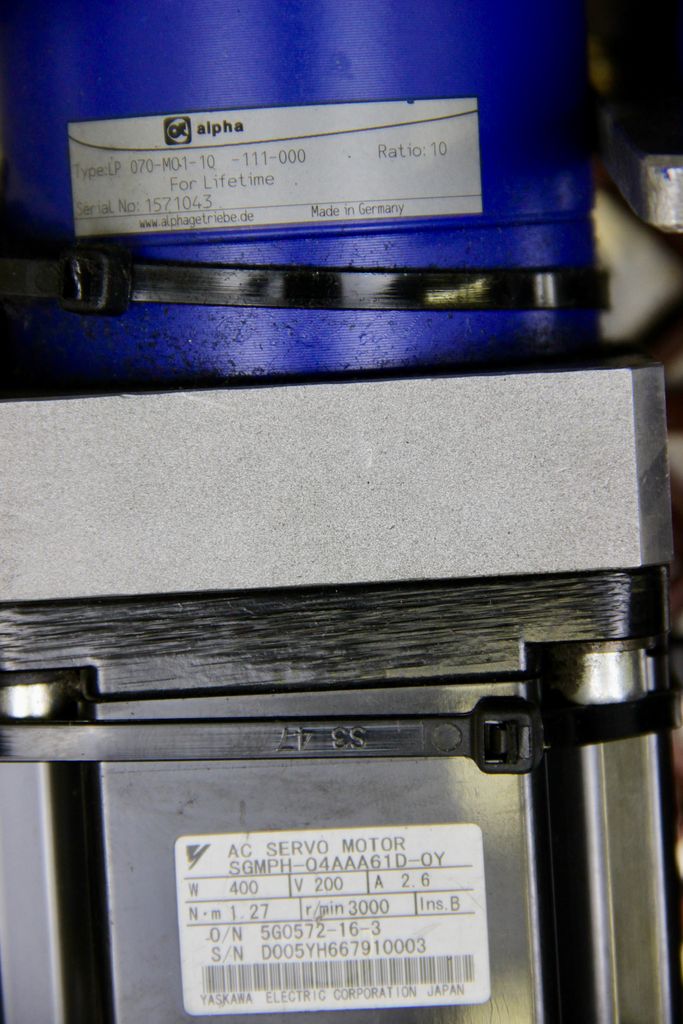

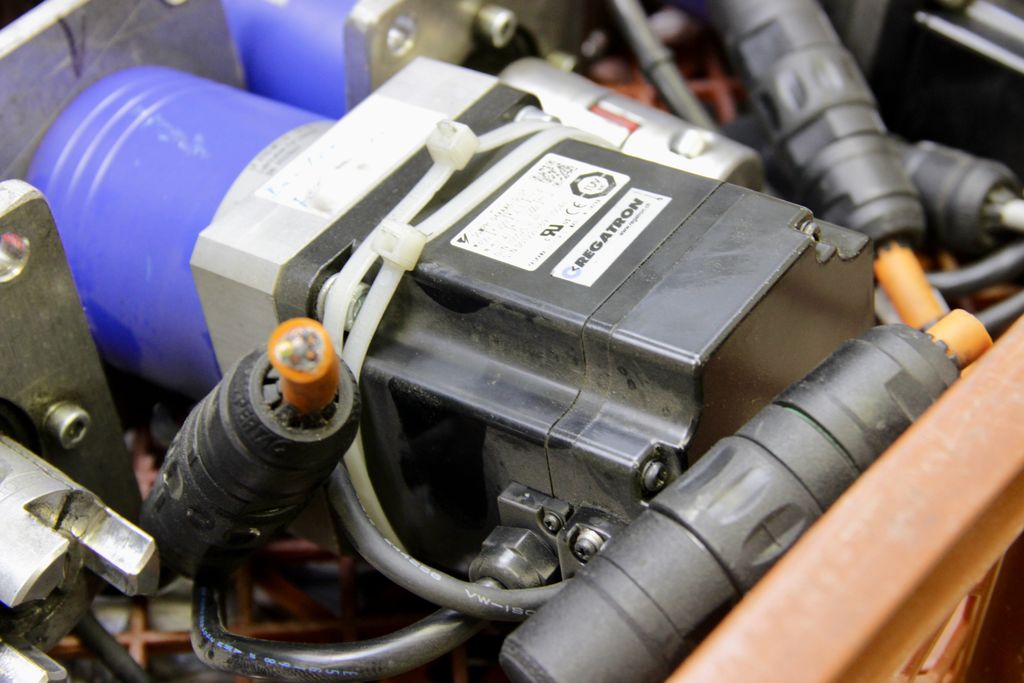

The Yaskawa SGMPH-04AAA61D-0Y is a compact AC servo motor from the Sigma II series with a rated power of 400 W and a rated speed of 3000 RPM. It is designed for precise motion control in automation, robotics, and CNC applications.

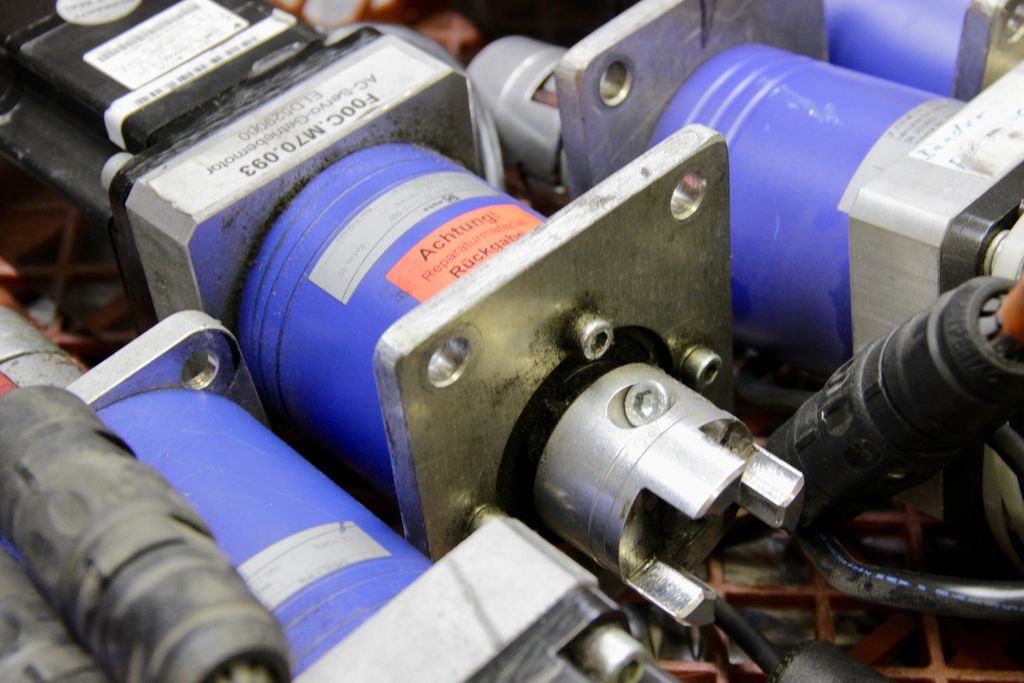

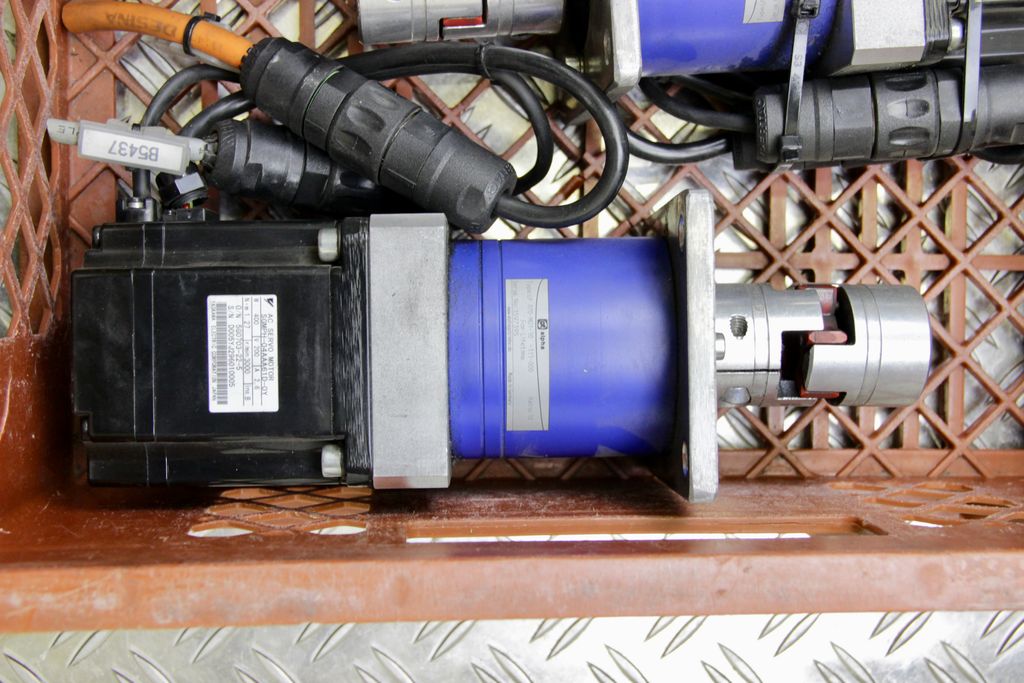

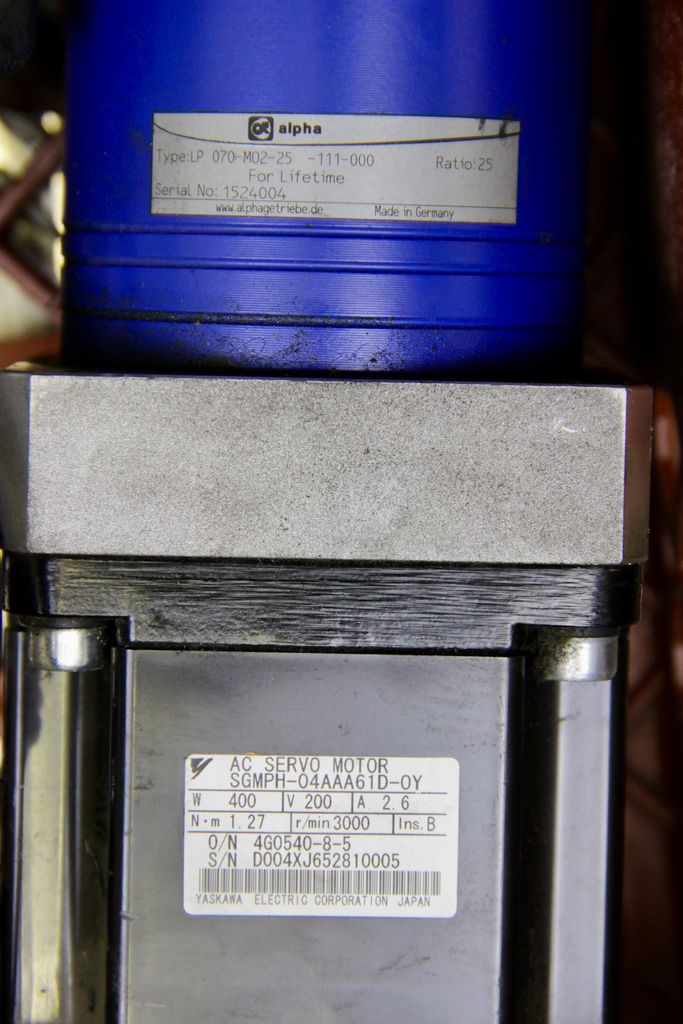

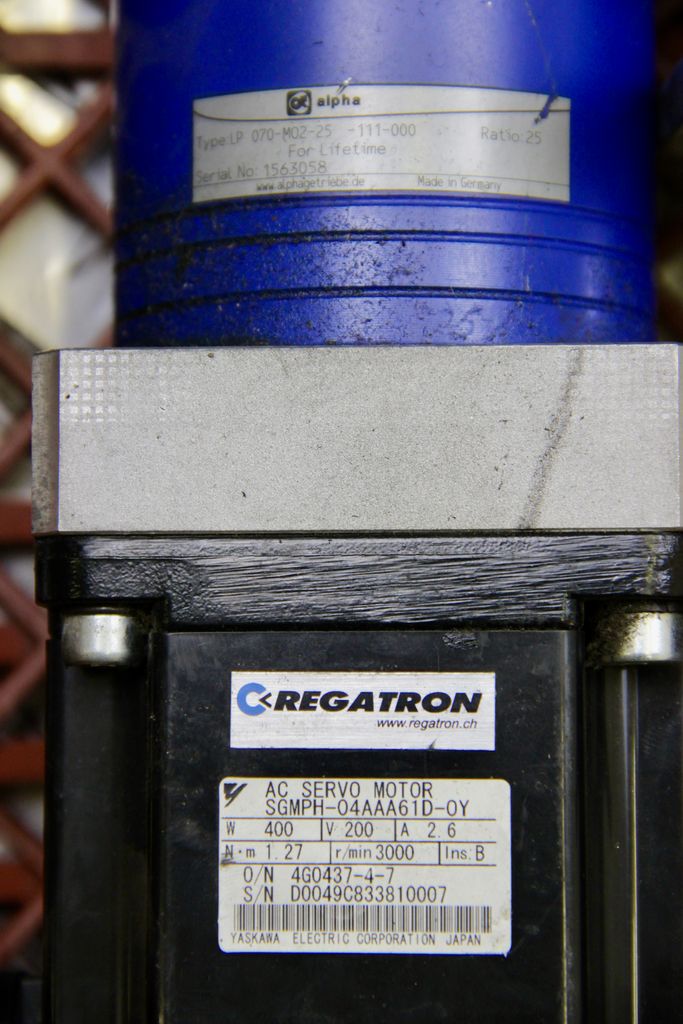

This motor is equipped with a Wittenstein alpha LP 070-M02-25-111-000 planetary gearbox. This gearbox reduces the speed with a ratio of 25:1 and significantly increases the torque. The combination of the Yaskawa servo motor and alpha gearbox offers a robust, durable, and highly precise drive solution for demanding applications.
This motor is equipped with a Wittenstein alpha LP 070-M02-25-111-000 planetary gearbox. This gearbox reduces the speed with a ratio of 25:1 and significantly increases the torque. The combination of the Yaskawa servo motor and alpha gearbox offers a robust, durable, and highly precise drive solution for demanding applications.
Rated power: 400 W
Rated speed: 3000 rpm
Rated current: approx. 2.6 A
Rated voltage: 200 V AC
Torque (rated): 1.27 Nm
Peak torque: 3.82 Nm
Moment of inertia: 0.00041 kg m²
Weight: approx. 2.6 kg
Feedback: Absolute encoder (17-bit)
Protection class: IP65 (front), IP44 (housing)
Cooling: Self-cooling
Size: 070
Gear ratio: 25:1
Rated torque: approx. 60-70 Nm
Max. torque: up to 90 Nm
Backlash: < 10 arcmin
Weight: approx. 3 kg
Lubrication: lifetime lubricated
Rated speed: 3000 rpm
Rated current: approx. 2.6 A
Rated voltage: 200 V AC
Torque (rated): 1.27 Nm
Peak torque: 3.82 Nm
Moment of inertia: 0.00041 kg m²
Weight: approx. 2.6 kg
Feedback: Absolute encoder (17-bit)
Protection class: IP65 (front), IP44 (housing)
Cooling: Self-cooling
Size: 070
Gear ratio: 25:1
Rated torque: approx. 60-70 Nm
Max. torque: up to 90 Nm
Backlash: < 10 arcmin
Weight: approx. 3 kg
Lubrication: lifetime lubricated
| Technical characteristic | Value |
|---|---|
| Condition | Used |
| Age rating | No age restriction |
| Model | SGMPH-04AAA61D-0Y |
| Manufacturer | YASKAWA |
| Content | 1 piece |
| Weight | 31000 g |
| Dimensions | 600×400×300mm |
| Item ID | 1234598090 |
| Item ID | 1234598090 |
YASKAWA

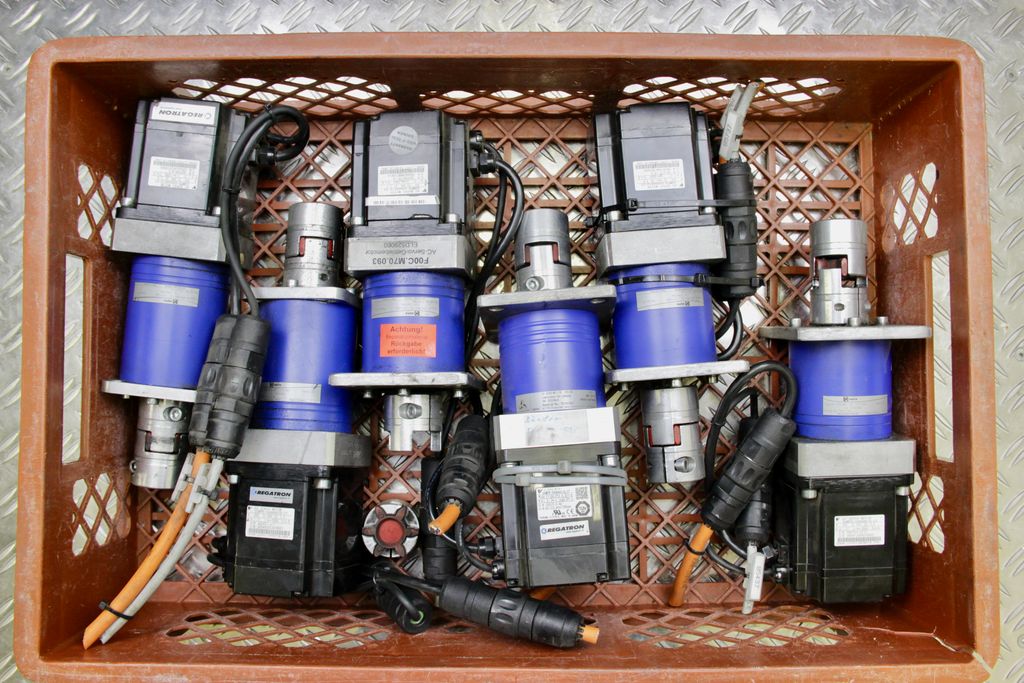

YASKAWA SGMPH-04AAA61D-0Y Lot (4x) Servo Motor AC 400W 3000rpm + Gearbox LP 070-M02-25-111-000
Item number KKK-1603
EAN
Condition Used
Available quantity
EUR 1,999.00
*
Content
1 piece
immediately available
* Incl. VAT excl. Shipping
