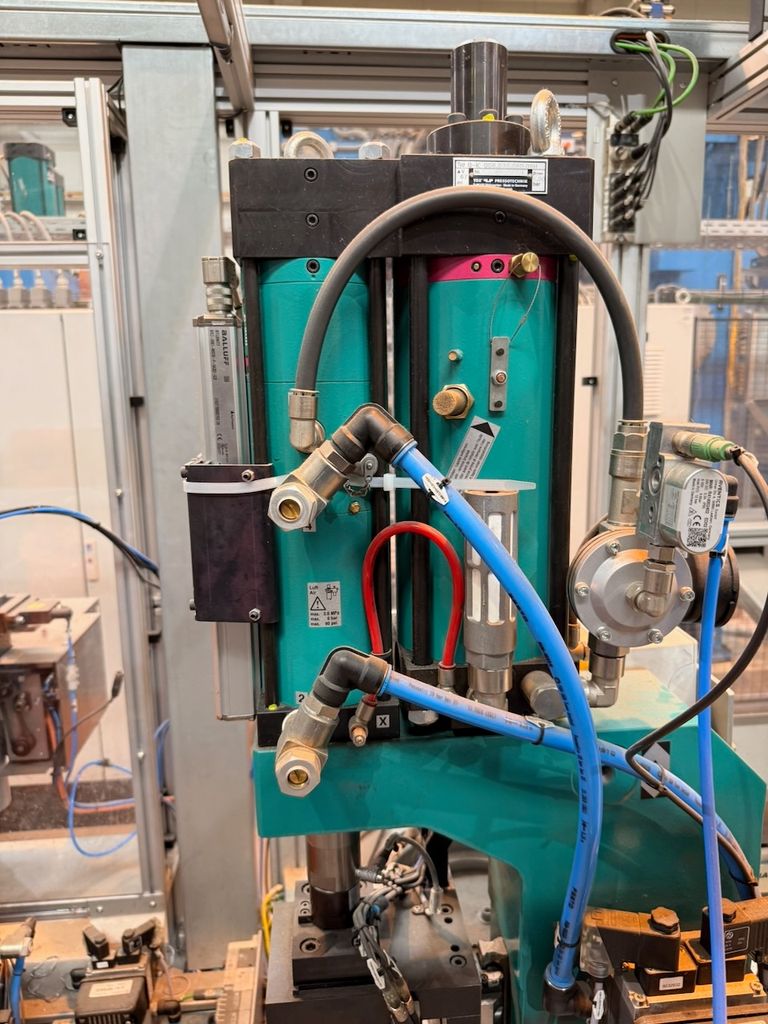

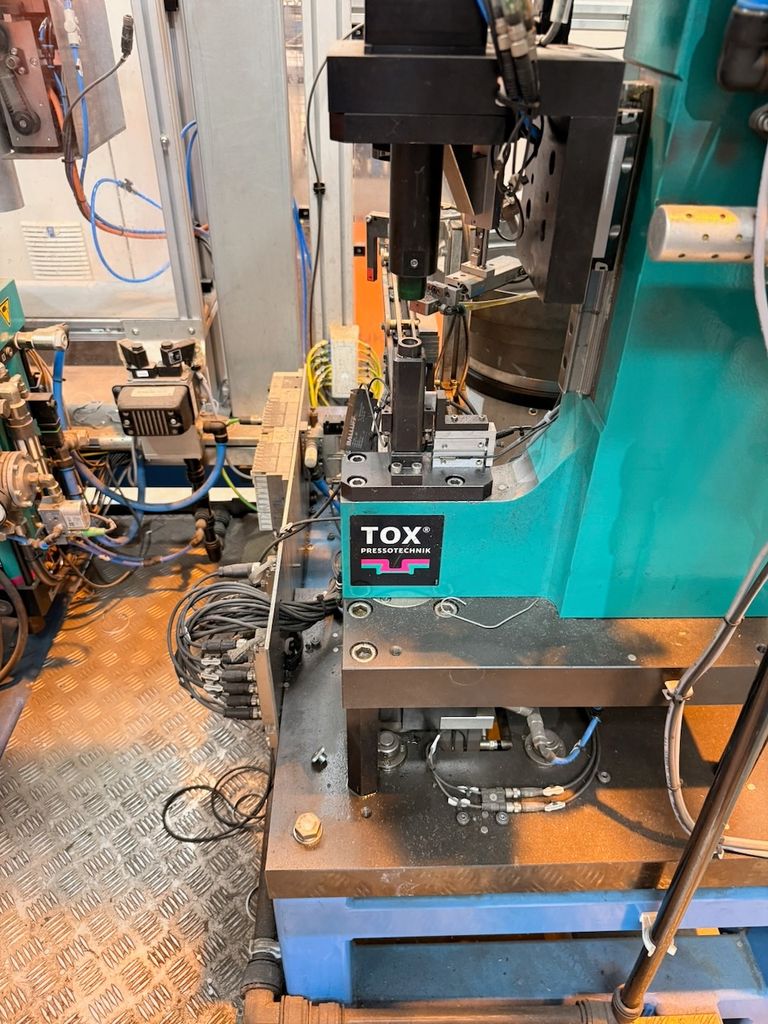

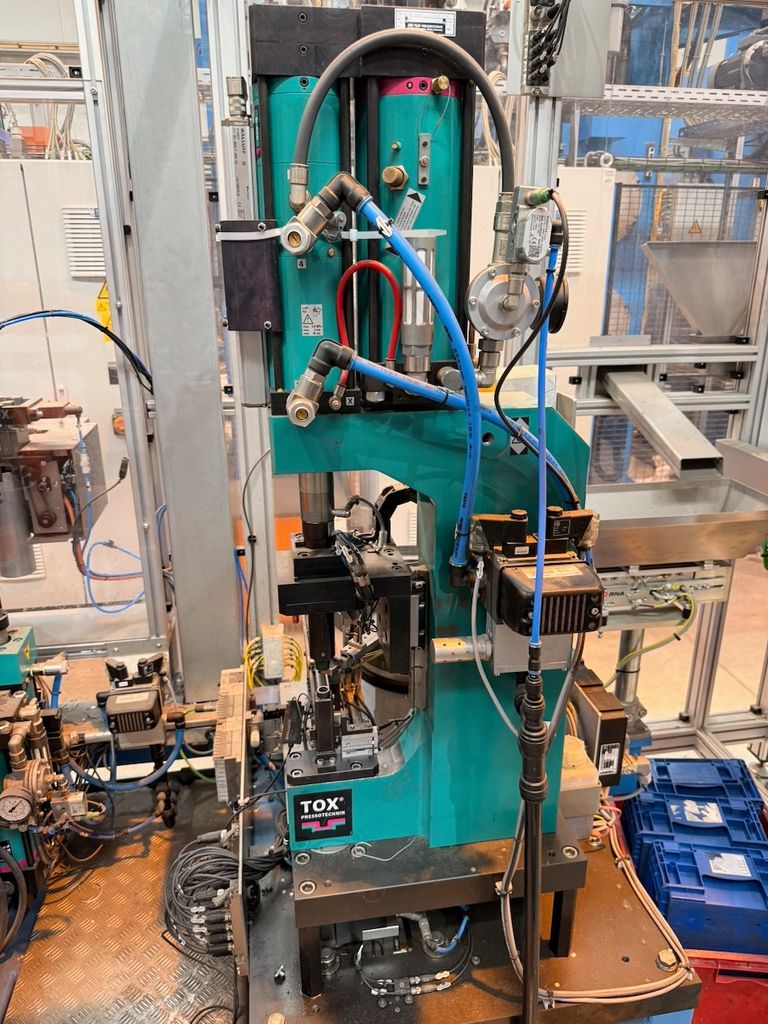

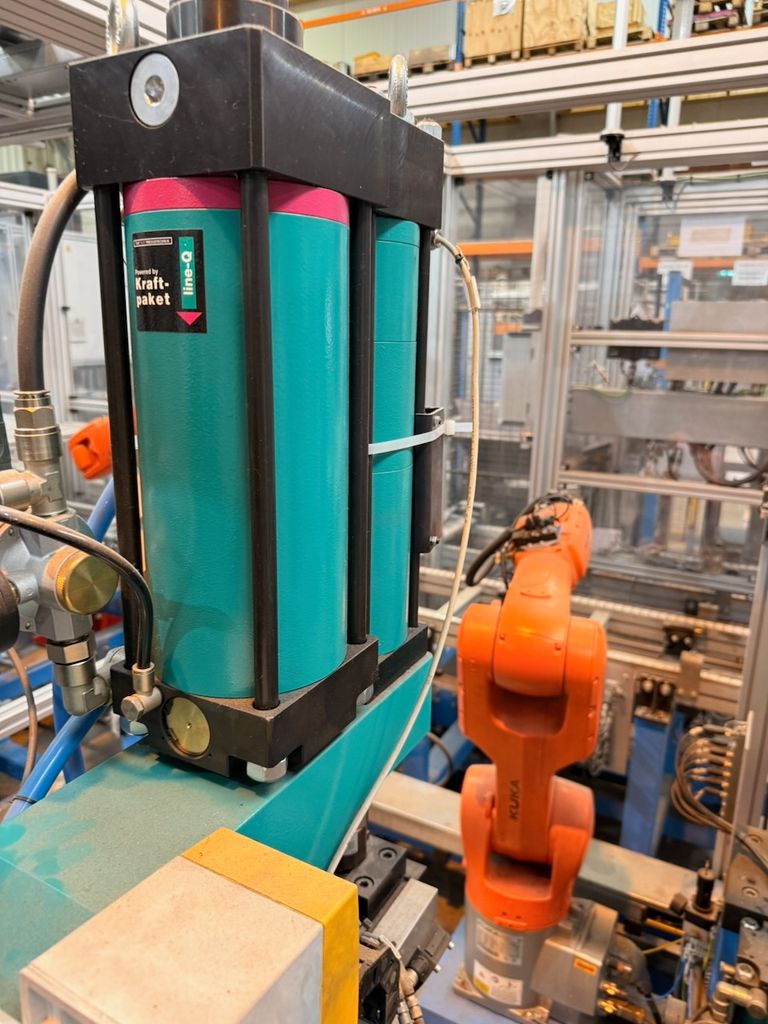

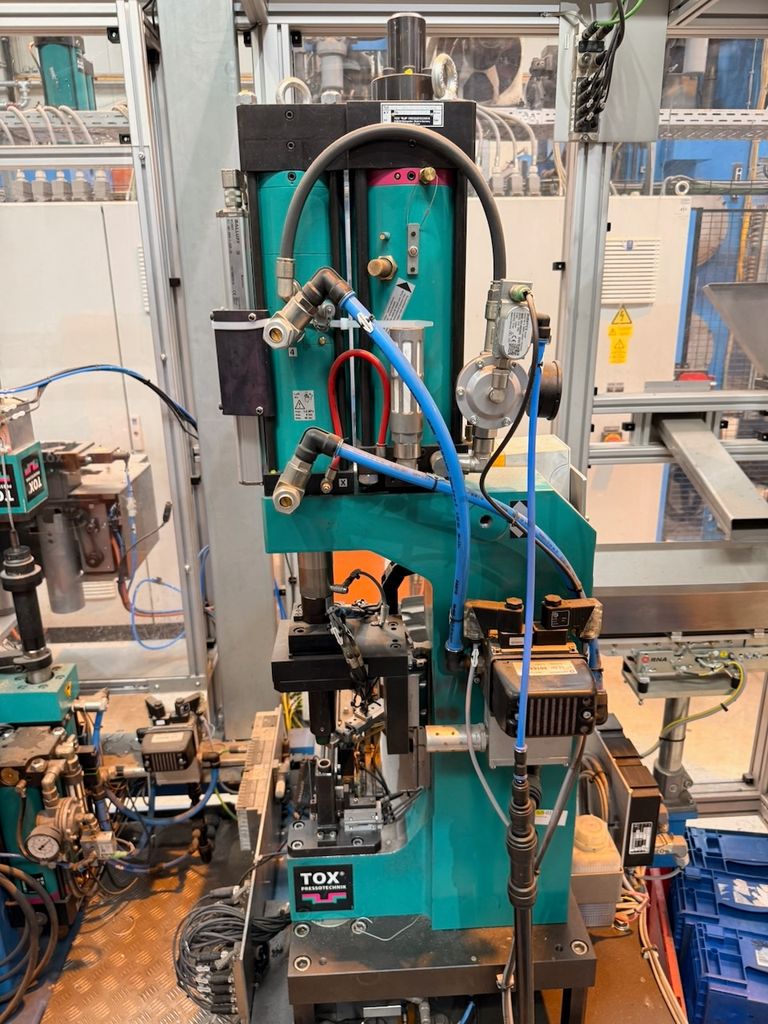

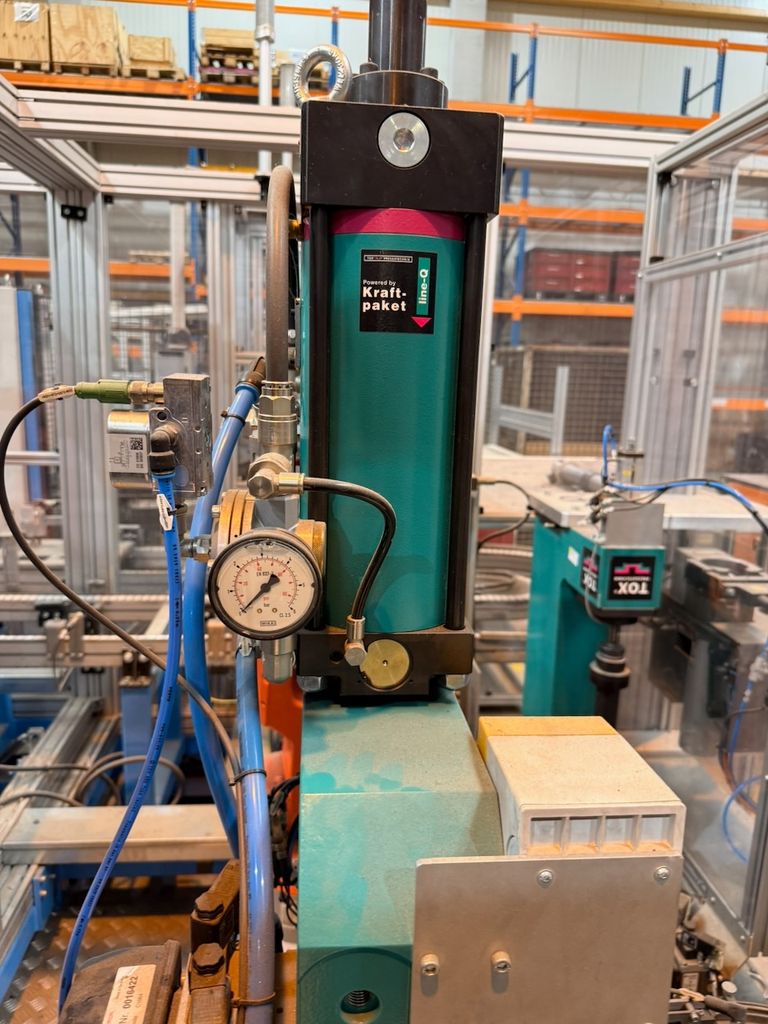

Pneumo-hydraulic TOX power package of the reinforced Q-K series, installed in a stationary joining station. The unit combines a pneumatic pre-stroke with a hydraulically generated power stroke and is used for pressing, joining, insertion, or clinching processes. The robust Q series enables high repeat accuracy, stable force development, and is suitable for permanent industrial applications in multi-shift operation.
Type: Q-K 008.3030.080.08H
Series: Q-K (reinforced pneumo-hydraulic power package series)
Type: Q-K 008.3030.080.08H
Series: Q-K (reinforced pneumo-hydraulic power package series)
Power level: 008
Pressing force typically approx. 15–30 kN (at 6 bar, model-dependent)
Stroke lengths:
Pre-stroke (rapid stroke): 30 mm
Power stroke: 30 mm
Total stroke: 60 mm
Piston rod/mechanics variant:
080 = extended piston/mechanics unit

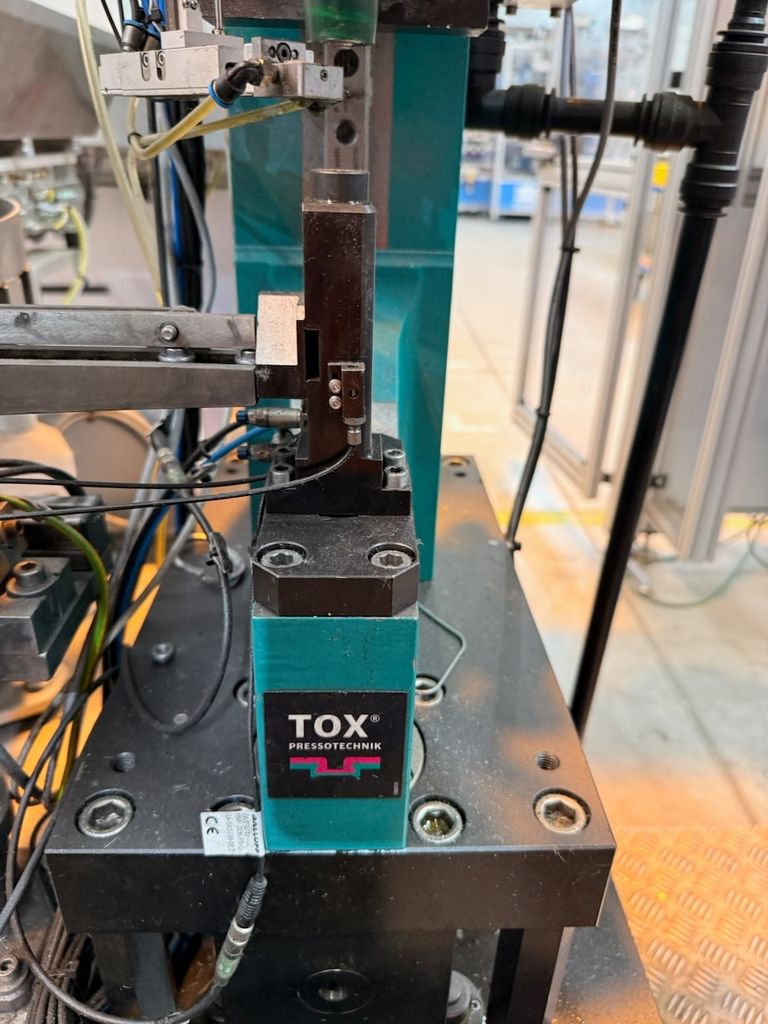

Tool connection:
08 = tool holder version 08
(defines thread, centering, clamping geometry)
Special version:
H = customer-specific variant (heavy-duty / modified mounting / special seal)

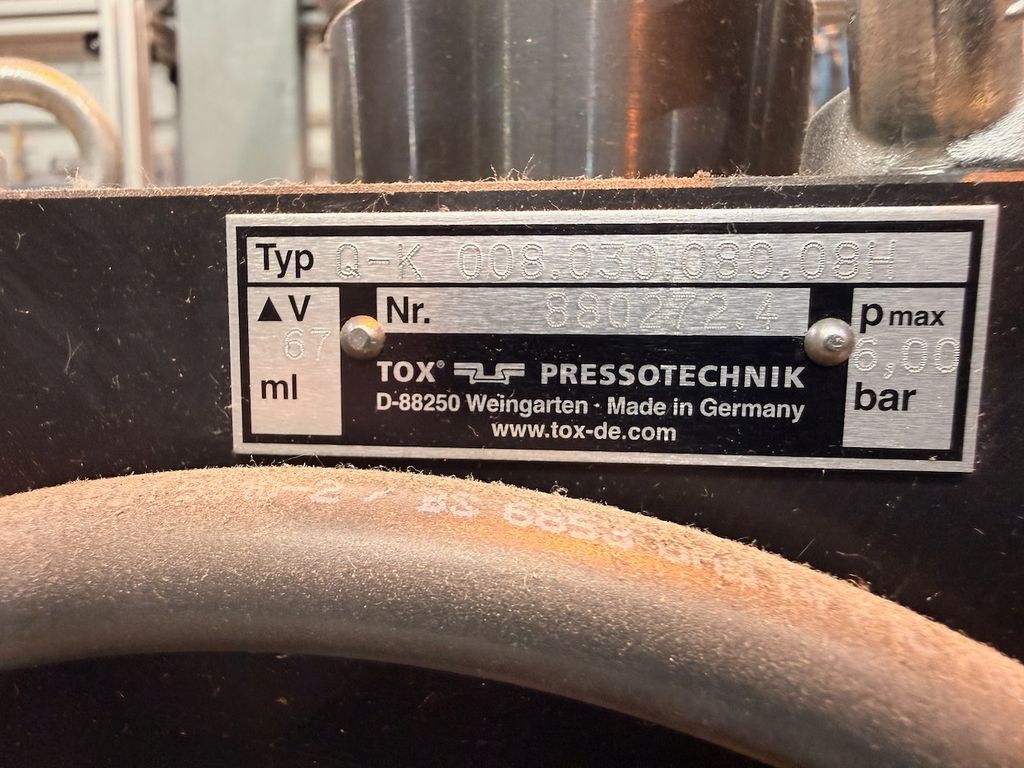

Oil volume per stroke (according to label): 67 ml
Max. pressure: 6 bar
Serial number: 8802722.4
Manufacturer: TOX Pressotechnik, Weingarten, Germany
Pressing force typically approx. 15–30 kN (at 6 bar, model-dependent)
Stroke lengths:
Pre-stroke (rapid stroke): 30 mm
Power stroke: 30 mm
Total stroke: 60 mm
Piston rod/mechanics variant:
080 = extended piston/mechanics unit
Tool connection:
08 = tool holder version 08
(defines thread, centering, clamping geometry)
Special version:
H = customer-specific variant (heavy-duty / modified mounting / special seal)
Oil volume per stroke (according to label): 67 ml
Max. pressure: 6 bar
Serial number: 8802722.4
Manufacturer: TOX Pressotechnik, Weingarten, Germany
| Technical characteristic | Value |
|---|---|
| Condition | Used |
| Age rating | No age restriction |
| Variation ID | |
| Model | Q-K 008.3030.080.08H |
| Manufacturer | TOX |
| Content | 1 piece |
| Weight | 220000 g |

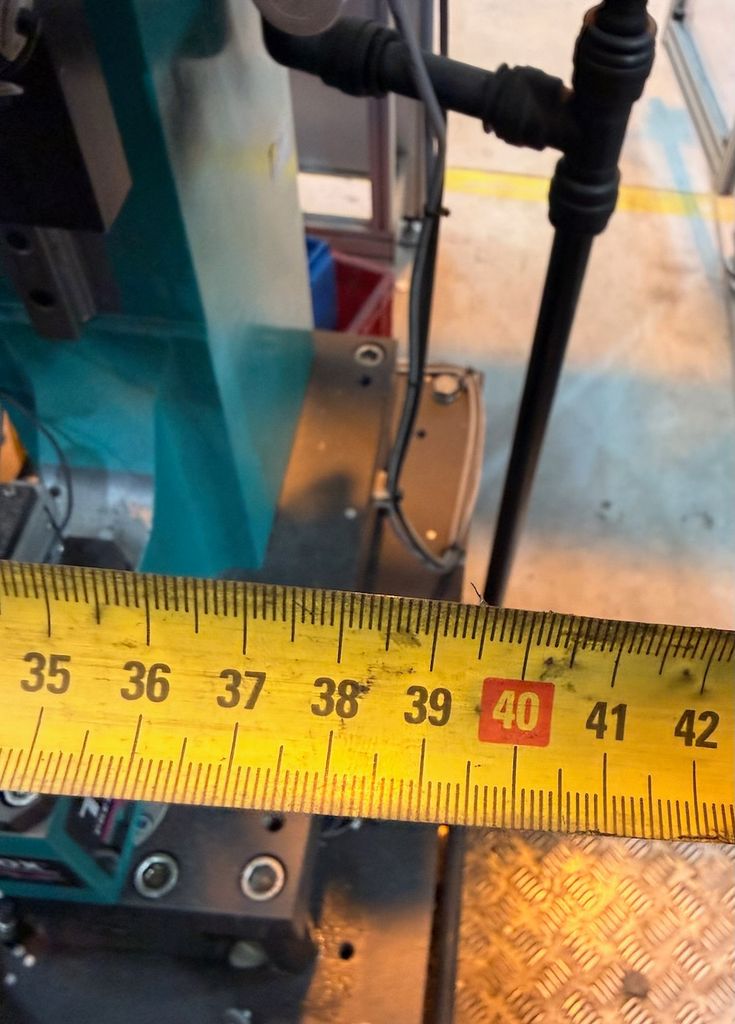

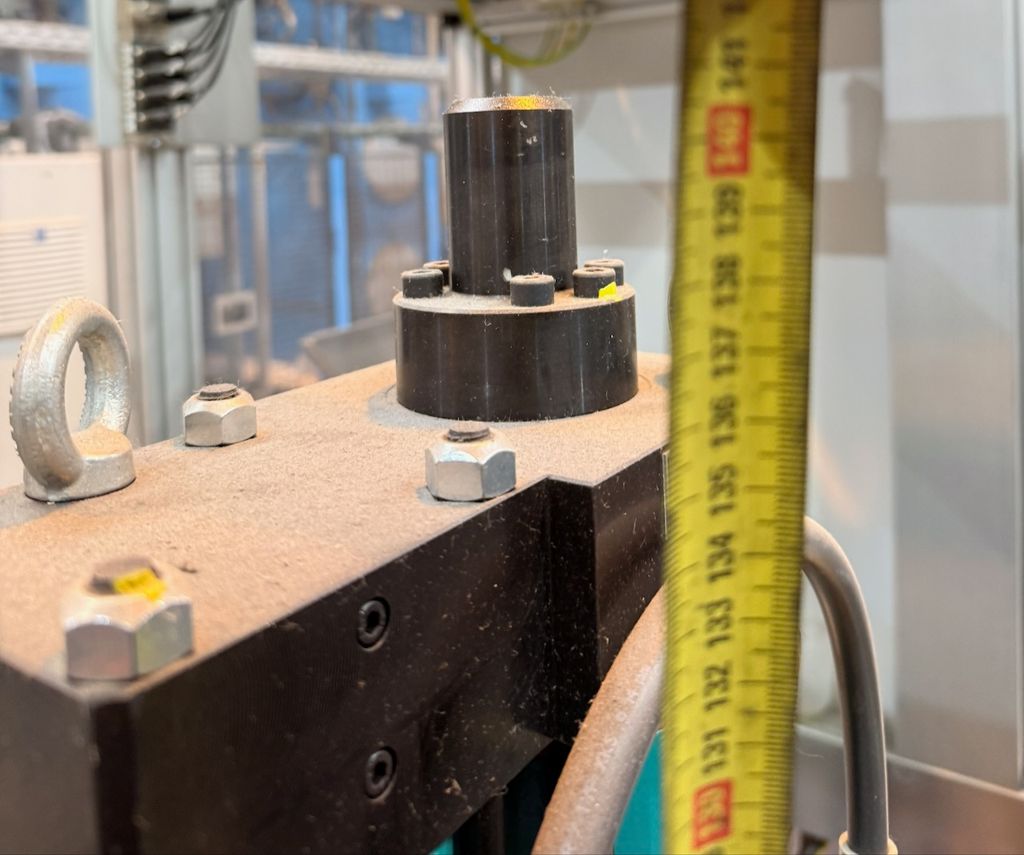

| Dimensions | 1200×800×1500mm |
| Item ID | 1234598242 |
| Item ID | 1234598242 |
TOX
TOX Q-K 008.3030.080.08H Pneumohydraulic Press Power Pack
Item number JUS-013
EAN
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 4,000.00
*
Content
1 piece
immediately available
