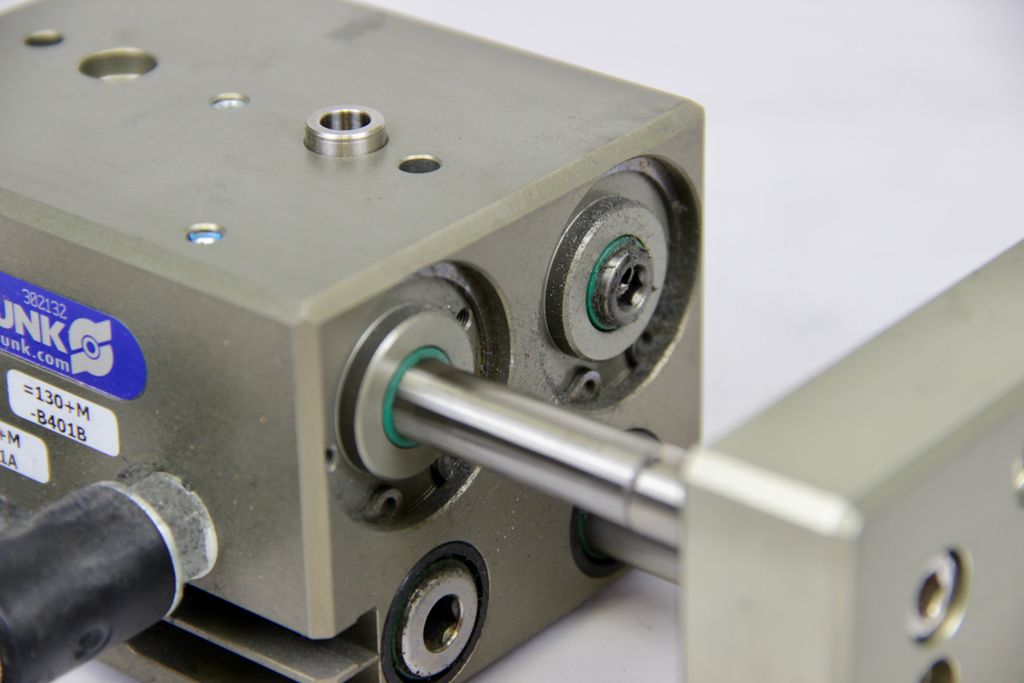

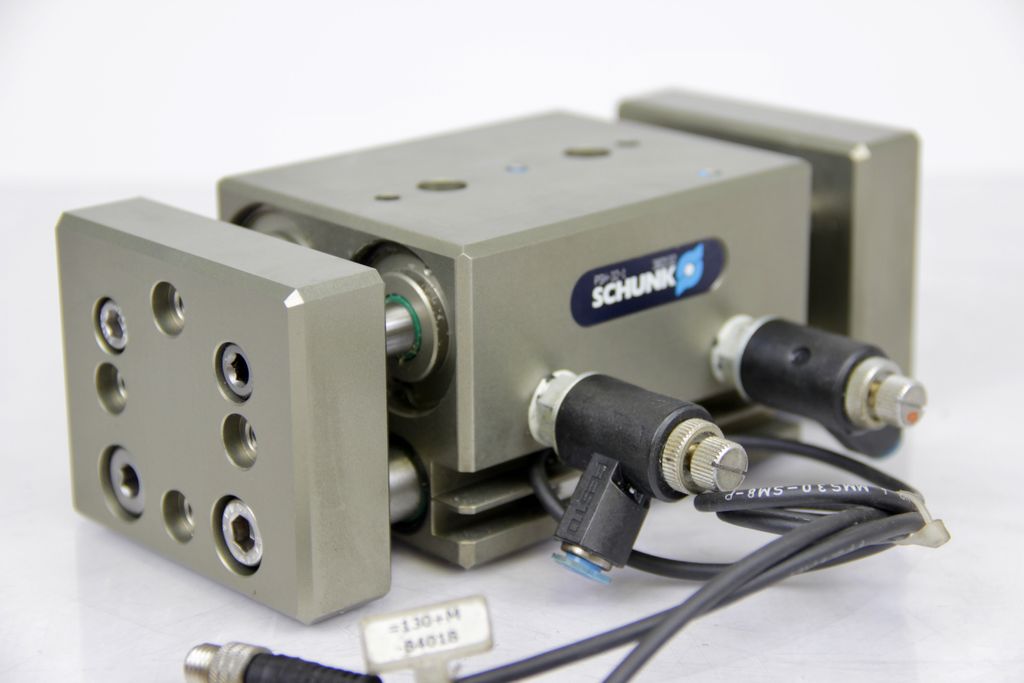

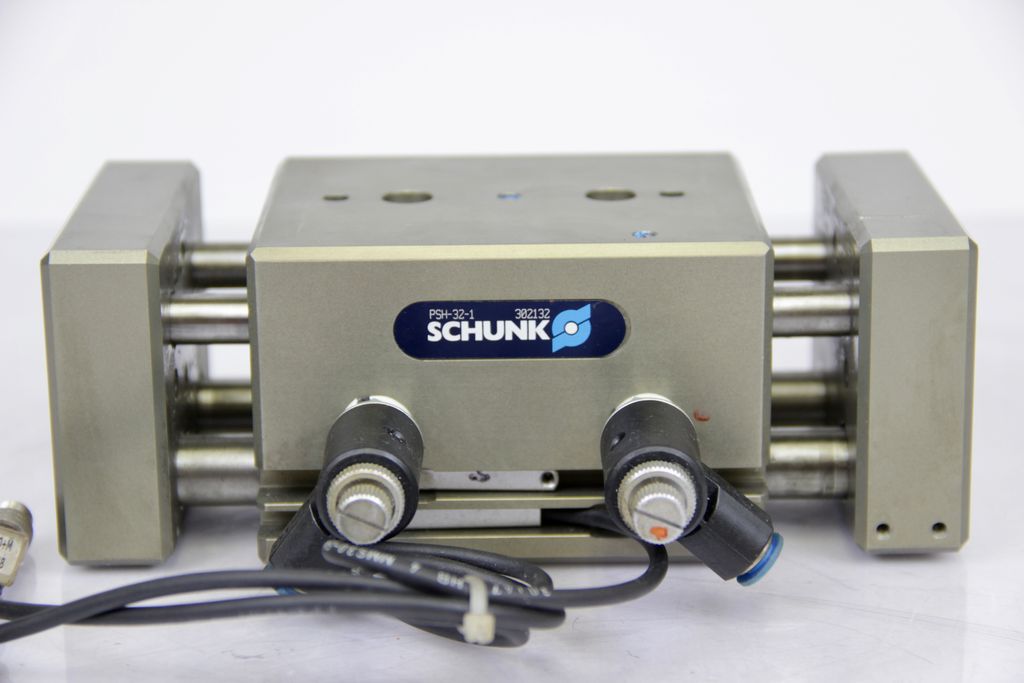

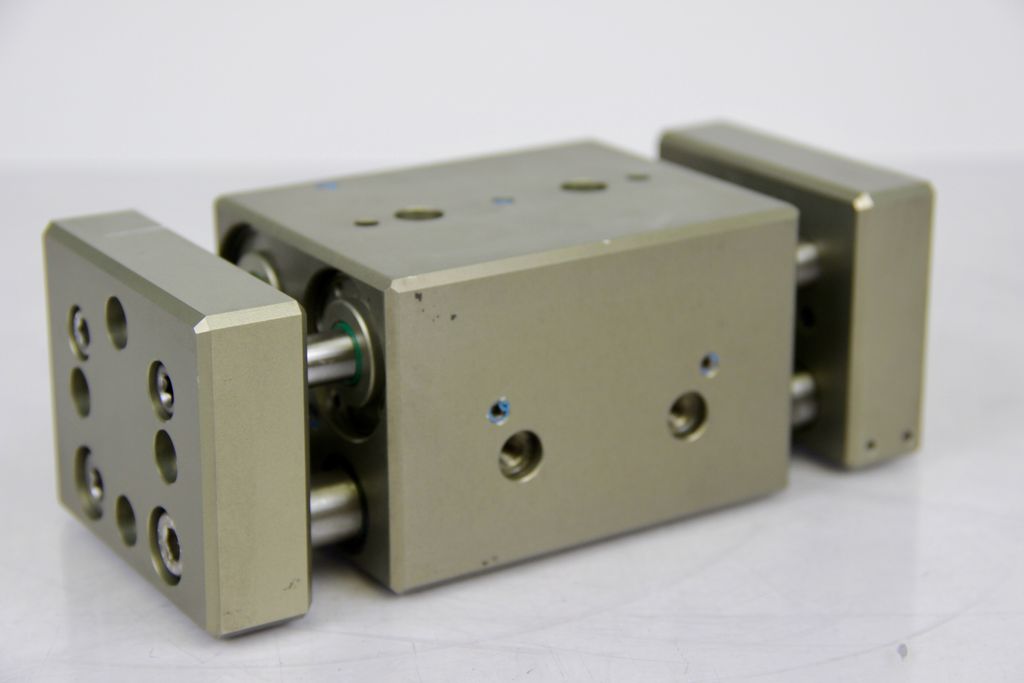

The SCHUNK PSH-32-1 belongs to the series of PSH large stroke grippers and is a compact, fully encapsulated 2-finger parallel gripper. It is particularly suitable for applications with a wide range of parts and dirty working environments. Due to its robust design with round guides and rack-and-pinion kinematics, it offers high reliability and long service life.
Features
• Manufacturer: SCHUNK GmbH & Co. KG
• Model: PSH-32-1
• Type: Large stroke parallel gripper, pneumatic
• Size: 32
• Operating principle: Rack-and-pinion kinematics for centric clamping
• Protection class: IP67 (dust and waterproof)
• Application area: Automation, robotics, handling of workpieces with large stroke requirements
Features
• Manufacturer: SCHUNK GmbH & Co. KG
• Model: PSH-32-1
• Type: Large stroke parallel gripper, pneumatic
• Size: 32
• Operating principle: Rack-and-pinion kinematics for centric clamping
• Protection class: IP67 (dust and waterproof)
• Application area: Automation, robotics, handling of workpieces with large stroke requirements

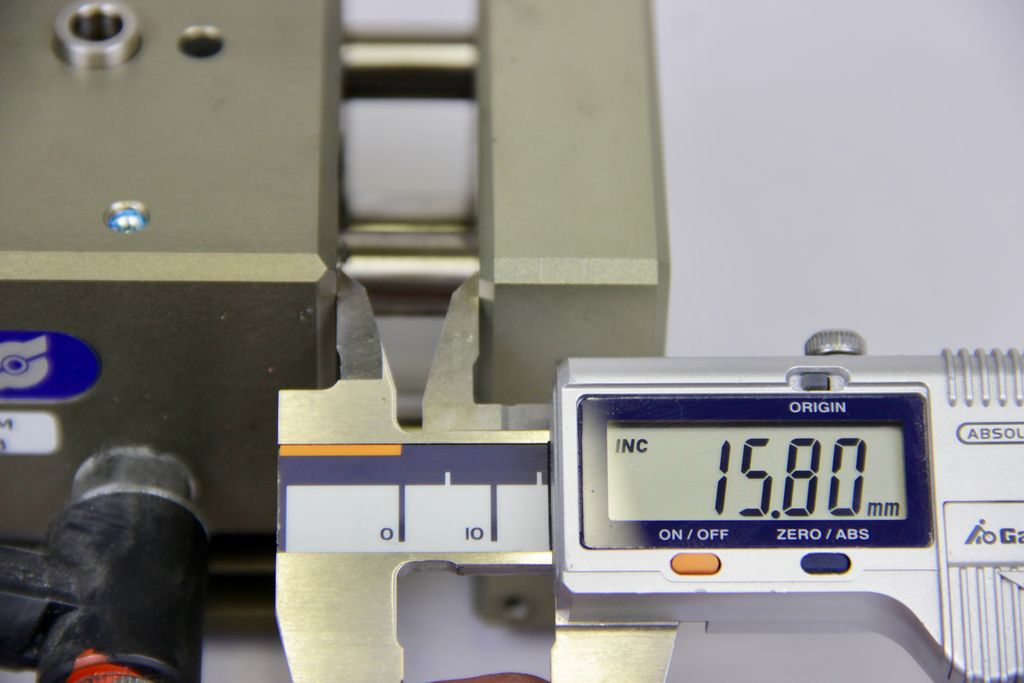

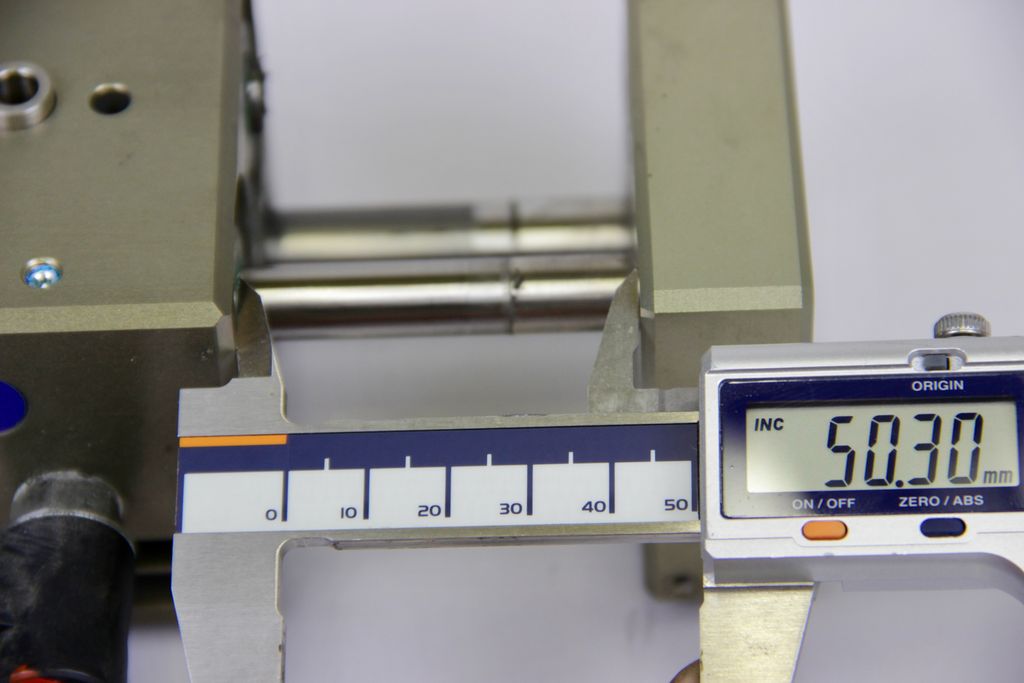

Stroke per jaw: 35 mm
Closing force: 750 N
Opening force: 750 N
Closing/opening force (finger length 0 mm): 810 N
Net weight: 2.05 kg
Recommended workpiece weight: up to 3.75 kg
Cylinder volume per double stroke: 101 cm
Operating pressure min./max.: 3-8 bar
Nominal operating pressure: 6 bar
Closing/opening time: approx. 0.2 s
Max. permissible finger length: 170 mm
Max. permissible mass per finger: 1.5 kg
Max. ambient temperature: 90 °C
Protection class: IP67
Closing force: 750 N
Opening force: 750 N
Closing/opening force (finger length 0 mm): 810 N
Net weight: 2.05 kg
Recommended workpiece weight: up to 3.75 kg
Cylinder volume per double stroke: 101 cm
Operating pressure min./max.: 3-8 bar
Nominal operating pressure: 6 bar
Closing/opening time: approx. 0.2 s
Max. permissible finger length: 170 mm
Max. permissible mass per finger: 1.5 kg
Max. ambient temperature: 90 °C
Protection class: IP67
| Technical characteristic | Value |
|---|---|
| Condition | Used |
| Age rating | No age restriction |
| Variation ID | |
| Model | PSH-32-1 |
| Manufacturer | SCHUNK |
| Content | 1 piece |
| Weight | 2100 g |
| Dimensions | 170×120×65mm |
| Item ID | 1234598088 |
| Item ID | 1234598088 |
SCHUNK
SCHUNK PSH-32-1 large stroke parallel gripper pneumatic 2-finger size 32
Item number KKK-1601
EAN
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 349.00
*
Content
1 piece
immediately available
