The PILZ PNOZ m B1 (article number 772101) is a powerful base unit of the modular safety control series PNOZmulti 2. It is ideally suited for complex safety applications in machinery and plants, where the highest demands on functional safety are required.
With 20 safe digital inputs, 4 safe semiconductor outputs, and integrated interfaces (USB & Ethernet), the device offers maximum flexibility and connectivity. Configuration is done via the PNOZmulti Configurator software, allowing safety functions such as emergency stop, safety gate monitoring, or two-hand control to be easily implemented.
The device meets the safety standards PL e according to EN ISO 13849-1 and SIL CL 3 according to IEC 62061, making it well-suited for use in safety-critical areas.
Features
• Configurable safety control for modular expansion
• 20 safe digital inputs, 4 safe outputs
• Integrated USB port and 2x Ethernet interface with switch
• LED status indicator and illuminated display
• Compatible with PNOZmulti Configurator software
• Modularly expandable with input and output modules
• Includes USB storage (512 MB) for project transfer
With 20 safe digital inputs, 4 safe semiconductor outputs, and integrated interfaces (USB & Ethernet), the device offers maximum flexibility and connectivity. Configuration is done via the PNOZmulti Configurator software, allowing safety functions such as emergency stop, safety gate monitoring, or two-hand control to be easily implemented.
The device meets the safety standards PL e according to EN ISO 13849-1 and SIL CL 3 according to IEC 62061, making it well-suited for use in safety-critical areas.
Features
• Configurable safety control for modular expansion
• 20 safe digital inputs, 4 safe outputs
• Integrated USB port and 2x Ethernet interface with switch
• LED status indicator and illuminated display
• Compatible with PNOZmulti Configurator software
• Modularly expandable with input and output modules
• Includes USB storage (512 MB) for project transfer
Manufacturer: PILZ GmbH & Co. KG
Model: PNOZ m B1
Article number: 772101
EAN: 4250738127180
Supply voltage: 24 V DC
Power consumption: 18.5 W
Inputs: 20 safe digital inputs
Outputs: 4 safe semiconductor outputs
Interfaces: USB, 2x Ethernet 10/100 MBit/s
Mounting type: DIN rail
Dimensions (WxHxD): 45x101.4x120.2 mm
Approvals: CE, cULus, TÜV, EAC, UKCA, KOSHA
Safety level: PLe / SIL CL 3
Model: PNOZ m B1
Article number: 772101
EAN: 4250738127180
Supply voltage: 24 V DC
Power consumption: 18.5 W
Inputs: 20 safe digital inputs
Outputs: 4 safe semiconductor outputs
Interfaces: USB, 2x Ethernet 10/100 MBit/s
Mounting type: DIN rail
Dimensions (WxHxD): 45x101.4x120.2 mm
Approvals: CE, cULus, TÜV, EAC, UKCA, KOSHA
Safety level: PLe / SIL CL 3
| Technical characteristic | Value |
|---|---|
| Condition | Used |
| Age rating | No age restriction |
| Model | PNOZ m B1 |
| Manufacturer | Pilz |
| Content | 1 piece |
| Weight | 400 g |
| Dimensions | 105×5×10mm |
| Item ID | 1234598099 |
| Item ID | 1234598099 |
Pilz

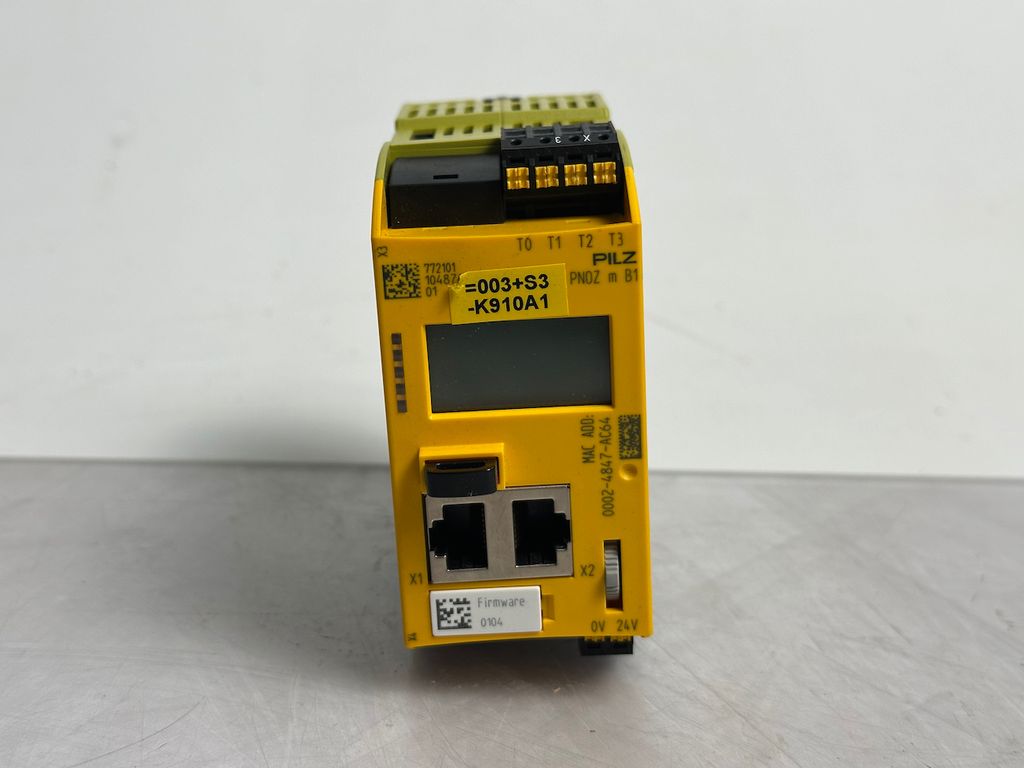

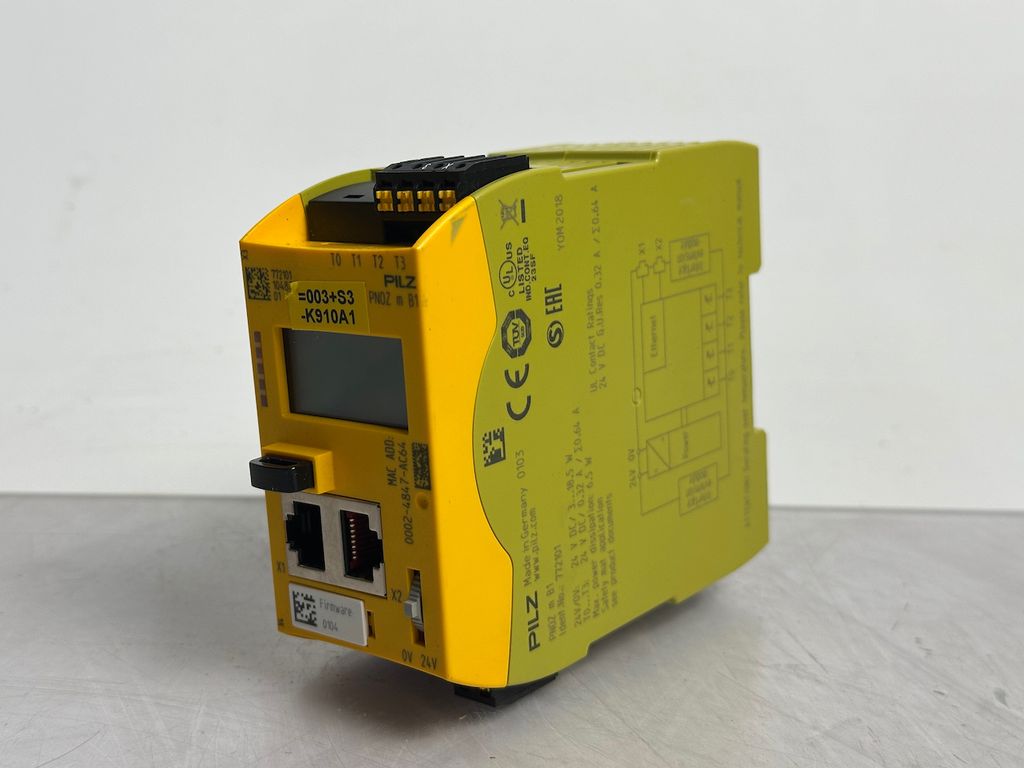

PILZ PNOZ m B1 safety controller for PNOZmulti 2 with Ethernet & USB 772101
Item number KKK-1611
EAN
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 259.00
*
Content
1 piece
immediately available
