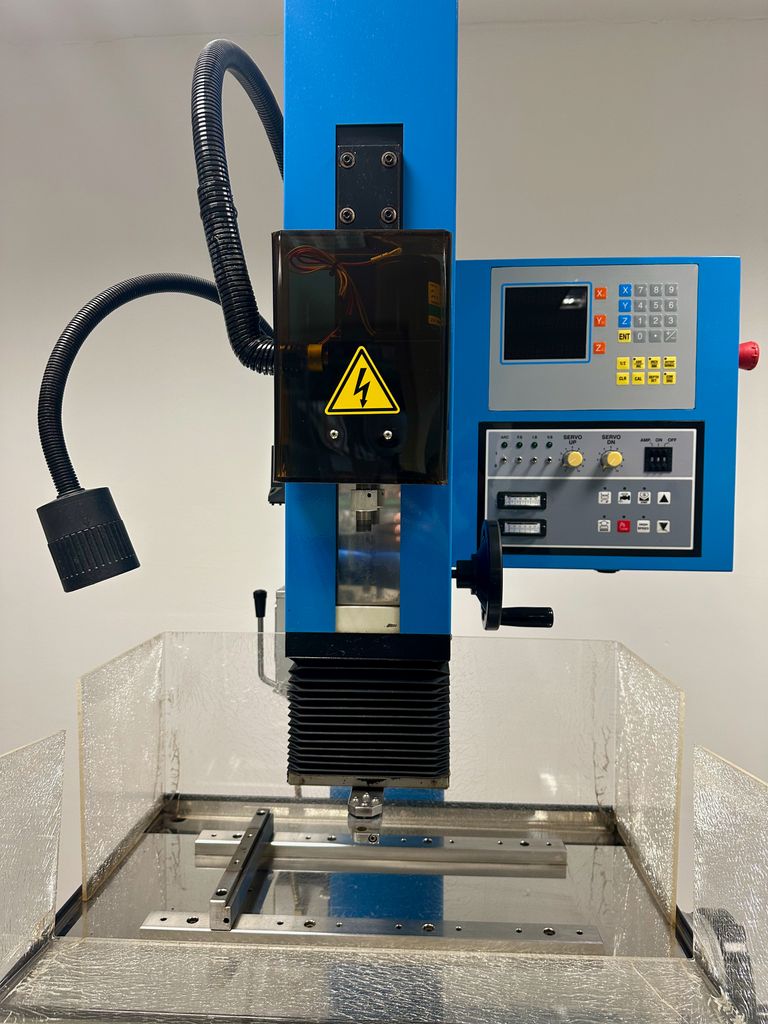

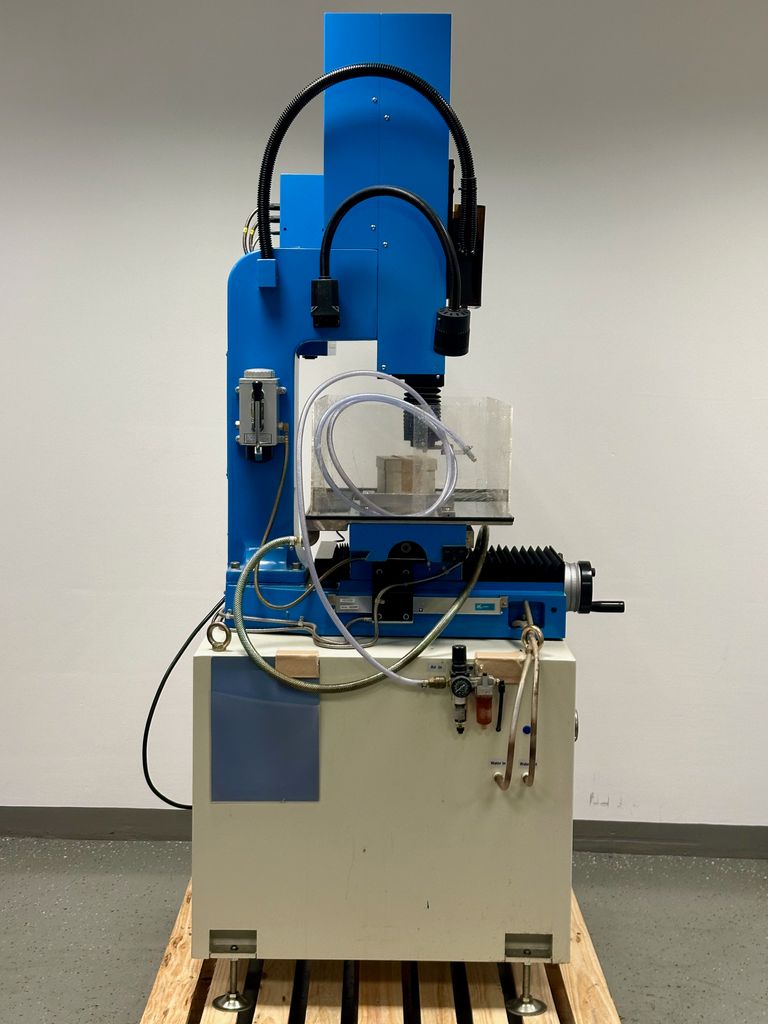

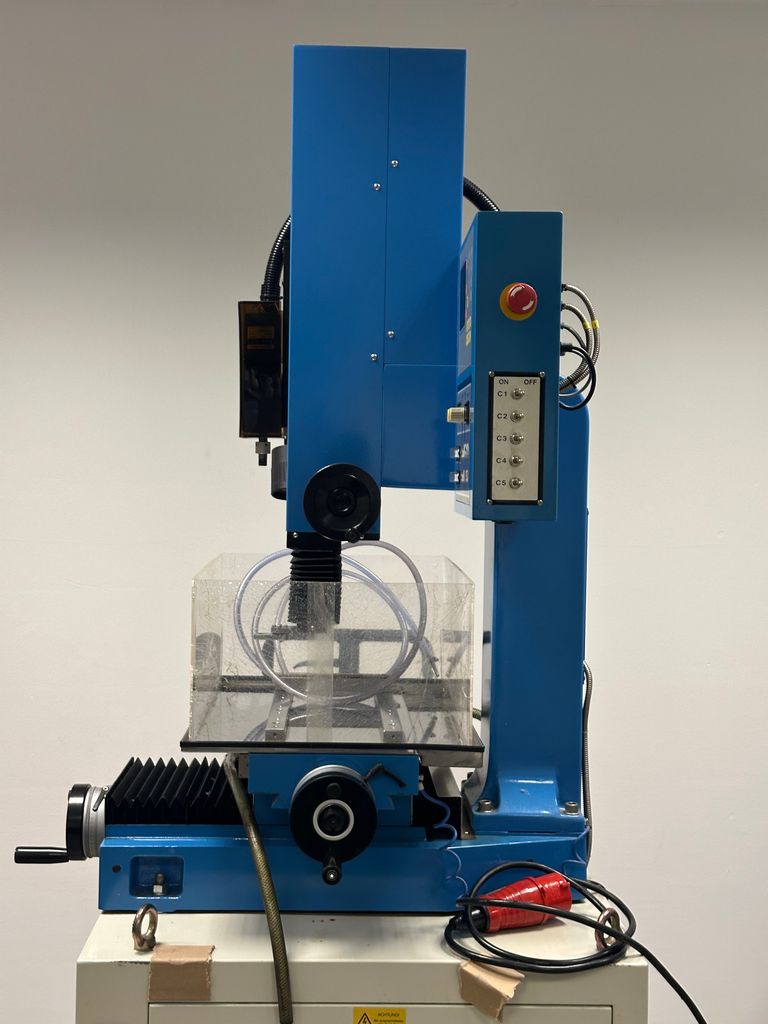

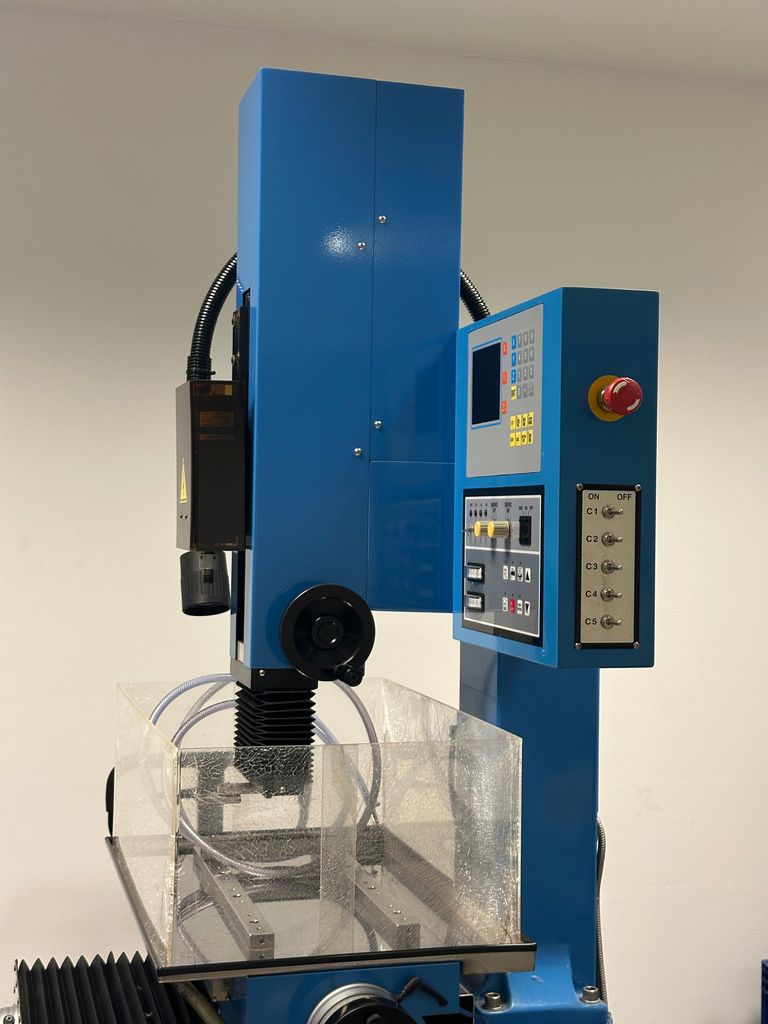

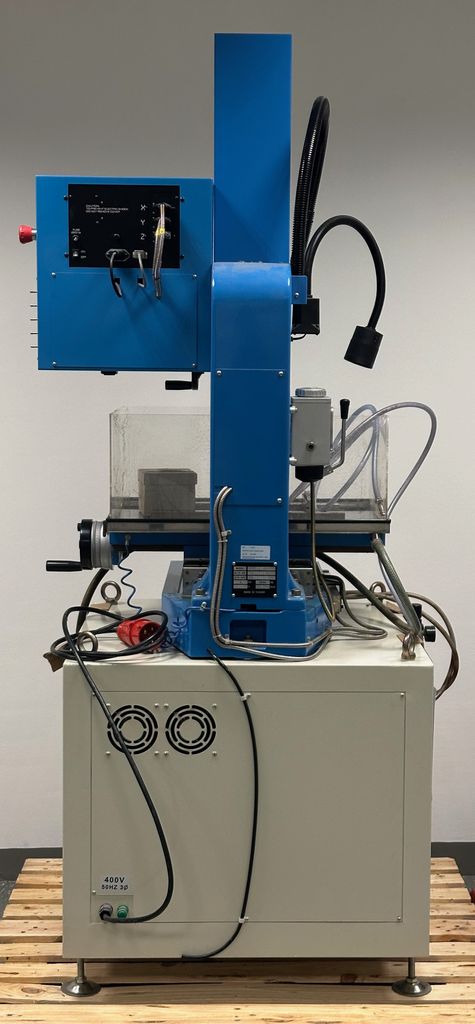

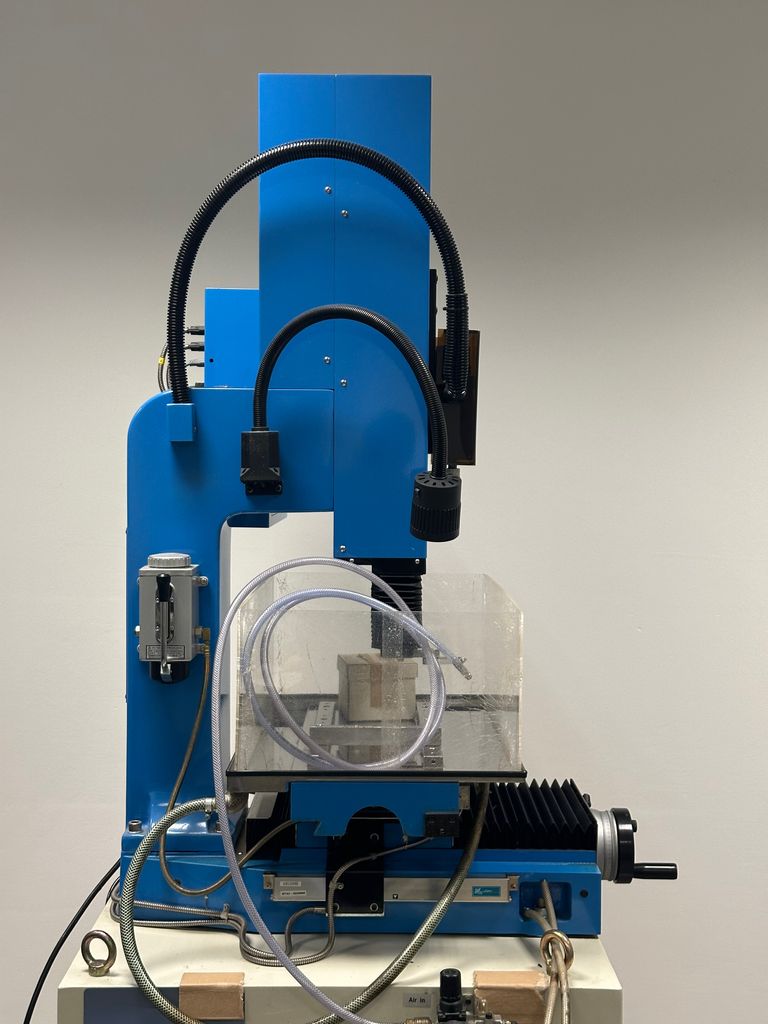

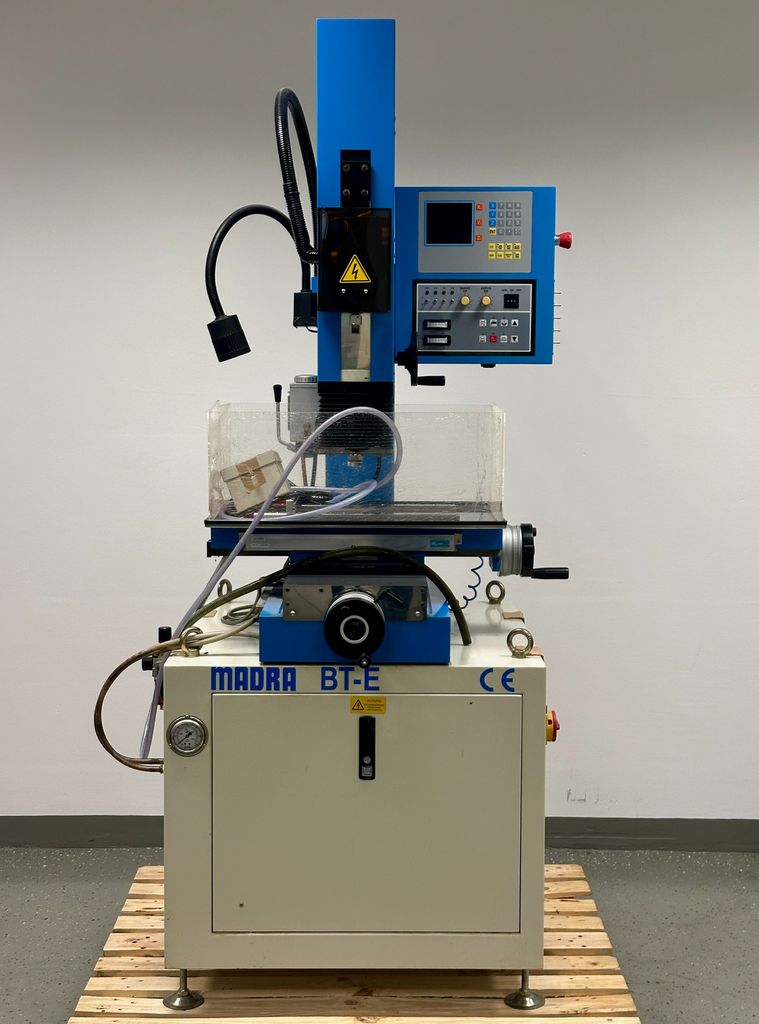

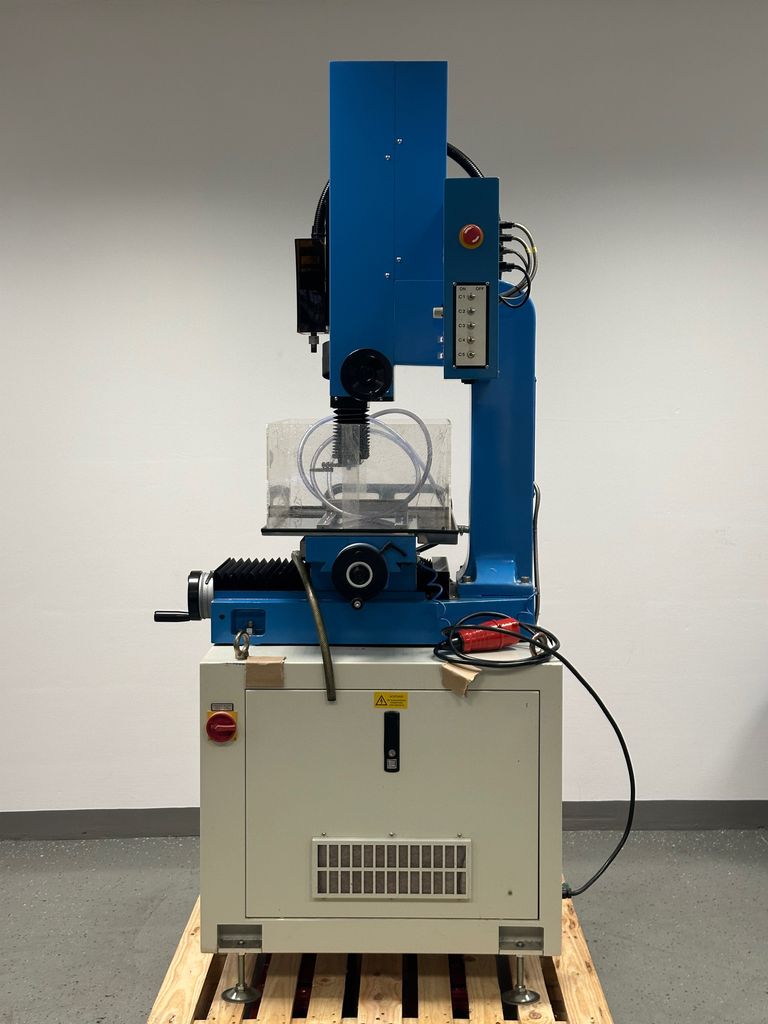

The BT-E is a compact start hole EDM machine from Madra-EDM GmbH ("Bohrteufel" series).
It is used to create start holes for wire EDM machines or precise cooling channels in tools and molds.
The model is particularly suitable for toolmaking, mold making, and hard metal processing.
Features
• Dielectric fluid: Water or WITOL-BT (for higher performance)
• Drilling diameter: Ø 0.2–3 mm
• Materials: Hard metal, hardened steel, stainless steel, copper, brass, aluminum
• Axes:
◦ X-axis: 325 mm
◦ Y-axis: 210 mm
◦ Z-axis (servo-controlled): 350 mm

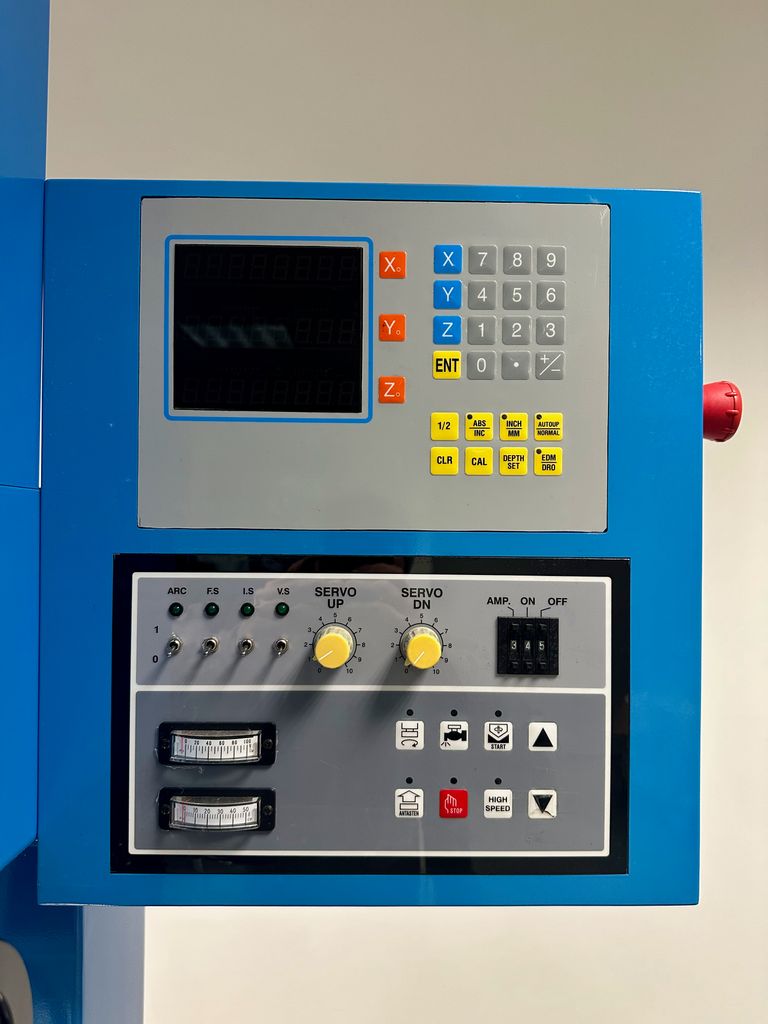

• Digital display: X/Y/Z-axis
• Electrode length: up to 400 mm
• Workpiece weight: max. 200 kg
• Dielectric fluid tank: 20 liters
It is used to create start holes for wire EDM machines or precise cooling channels in tools and molds.
The model is particularly suitable for toolmaking, mold making, and hard metal processing.
Features
• Dielectric fluid: Water or WITOL-BT (for higher performance)
• Drilling diameter: Ø 0.2–3 mm
• Materials: Hard metal, hardened steel, stainless steel, copper, brass, aluminum
• Axes:
◦ X-axis: 325 mm
◦ Y-axis: 210 mm
◦ Z-axis (servo-controlled): 350 mm
• Digital display: X/Y/Z-axis
• Electrode length: up to 400 mm
• Workpiece weight: max. 200 kg
• Dielectric fluid tank: 20 liters

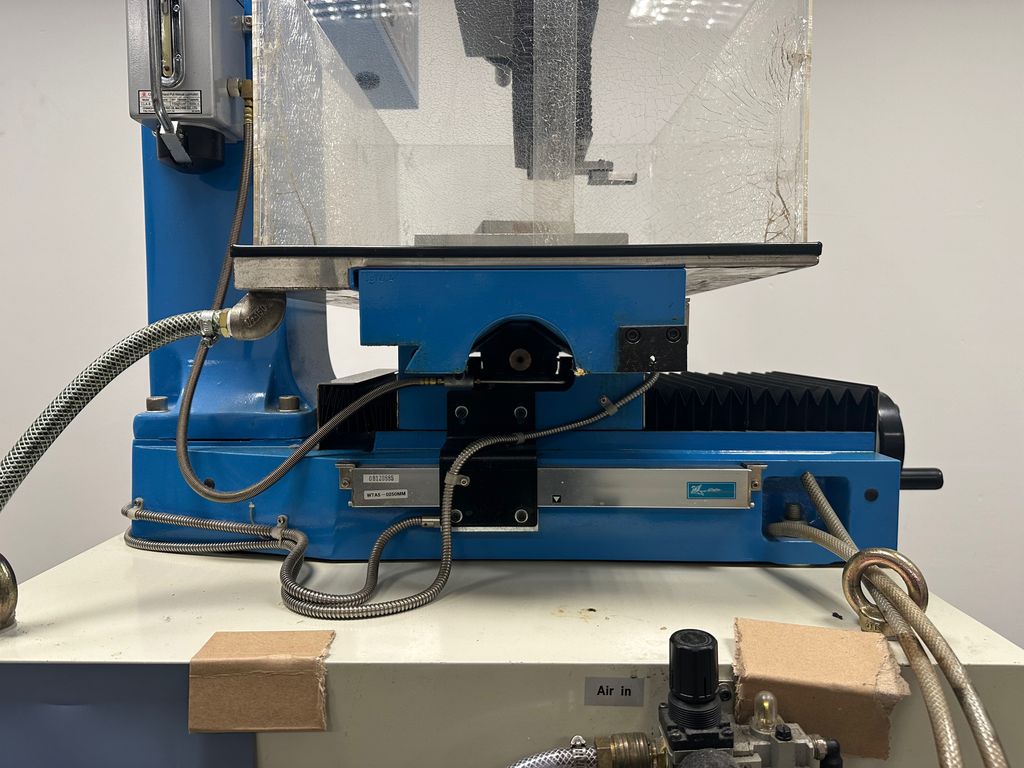

Table clamping surface: 460 × 210 mm
Travel X: 325 mm
Travel Y: 210 mm
Travel Z: 350 mm (servo-controlled)
Max. workpiece weight: 200 kg
Electrode length: 400 mm
Drilling diameter: 0.2-3 mm
Eroding fluid: Water or WITOL-BT
Tank volume: 20 liters
Travel X: 325 mm
Travel Y: 210 mm
Travel Z: 350 mm (servo-controlled)
Max. workpiece weight: 200 kg
Electrode length: 400 mm
Drilling diameter: 0.2-3 mm
Eroding fluid: Water or WITOL-BT
Tank volume: 20 liters
| Technical characteristic | Value |
|---|---|
| Condition | Used |
| Age rating | No age restriction |

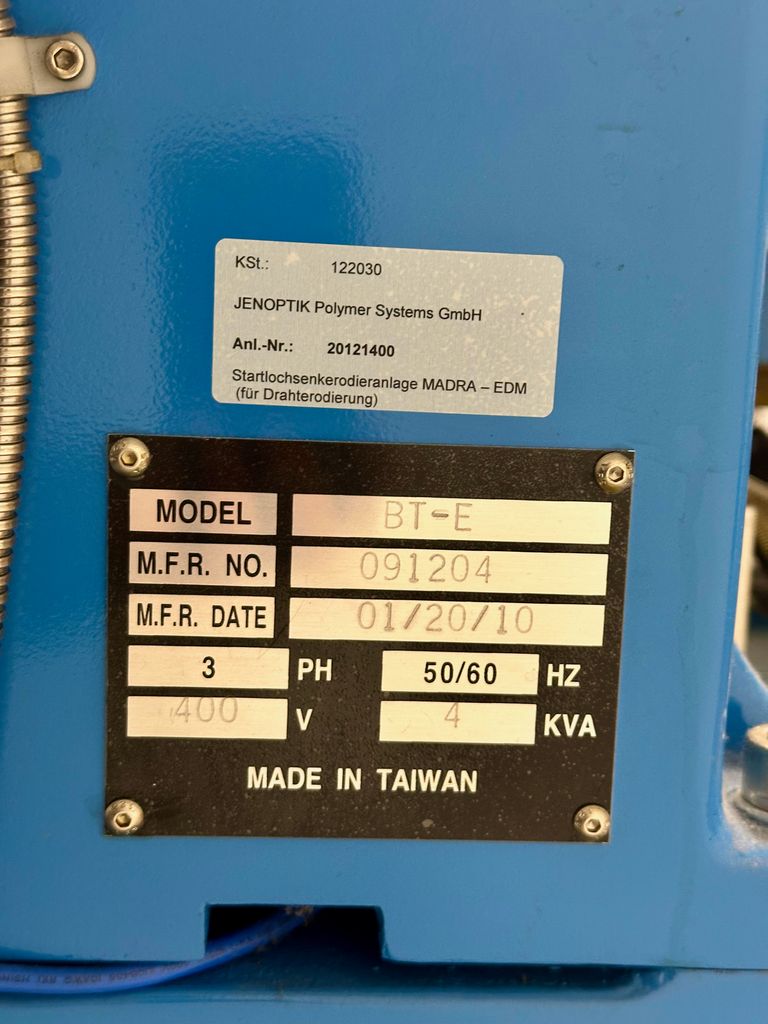

| Model | BT-E |
| Manufacturer | MADRA |
| Content | 1 piece |
| Weight | 500000 g |
| Dimensions | 1000×1000×2110mm |
| Item ID | 1234598224 |
| Item ID | 1234598224 |
MADRA
MADRA BT-E start hole sinking EDM system CNC EDM drilling machine for Ø 0.2–3 mm electrodes
Item number EQU-950
EAN
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 8,330.00
*
Content
1 piece
Unit price
EUR 8,330.00 / piece
immediately available
