Safety insulating conduit for highest requirements in the event of fire

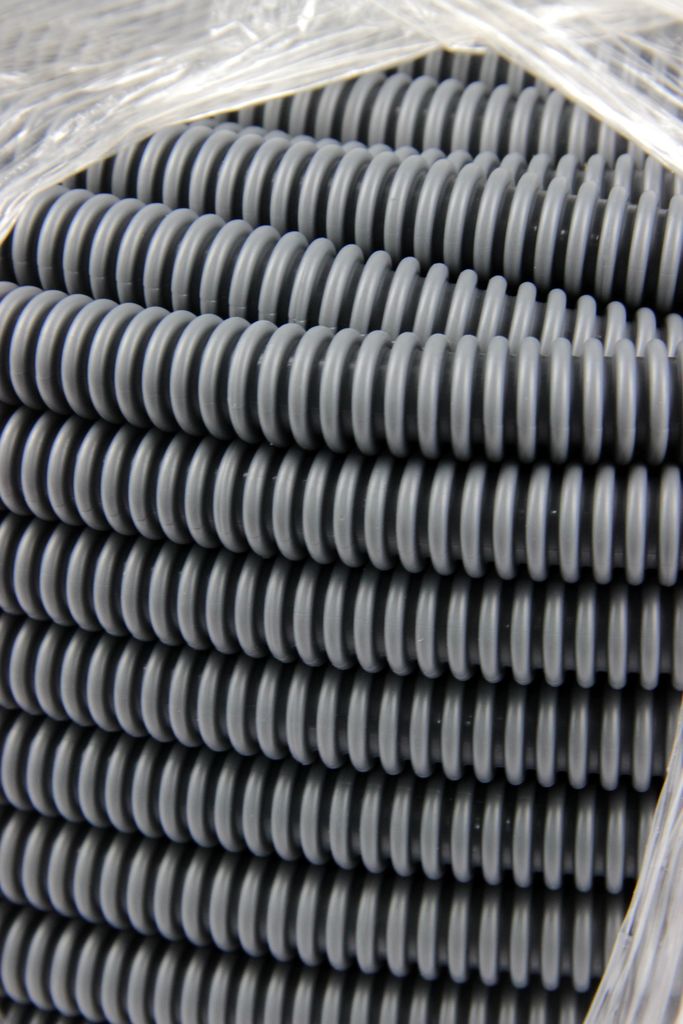

The UNI conduit system EFMP 16 is a medium-duty corrugated conduit, specially developed for installations where fire and smoke protection are crucial. As a halogen-free and low smoke (LSOH) conduit, it prevents the release of toxic gases in an emergency and reduces visibility impairment caused by smoke. With a compression strength of 750 N, it is significantly more robust than standard empty conduits and is ideally suited for installation in concrete, screed, as well as flush-mounted and hollow wall areas.
Product features
Maximum safety: Flame-retardant, halogen-free, and low smoke for optimal personal protection.
High compression strength: Loadable up to 750 N (medium-duty version).
LSOH technology: Reduced smoke development in the event of fire (Low Smoke Zero Halogen).
Versatile application: Suitable for a temperature range from -5 °C to +90 °C.
Standards compliant: VDE-tested and CE-certified according to DIN EN 61386-1 and 61386-22.
Quality: Manufactured in Germany by UNI-Rohrsysteme GmbH.
The UNI conduit system EFMP 16 is a medium-duty corrugated conduit, specially developed for installations where fire and smoke protection are crucial. As a halogen-free and low smoke (LSOH) conduit, it prevents the release of toxic gases in an emergency and reduces visibility impairment caused by smoke. With a compression strength of 750 N, it is significantly more robust than standard empty conduits and is ideally suited for installation in concrete, screed, as well as flush-mounted and hollow wall areas.
Product features
Maximum safety: Flame-retardant, halogen-free, and low smoke for optimal personal protection.
High compression strength: Loadable up to 750 N (medium-duty version).
LSOH technology: Reduced smoke development in the event of fire (Low Smoke Zero Halogen).
Versatile application: Suitable for a temperature range from -5 °C to +90 °C.
Standards compliant: VDE-tested and CE-certified according to DIN EN 61386-1 and 61386-22.
Quality: Manufactured in Germany by UNI-Rohrsysteme GmbH.

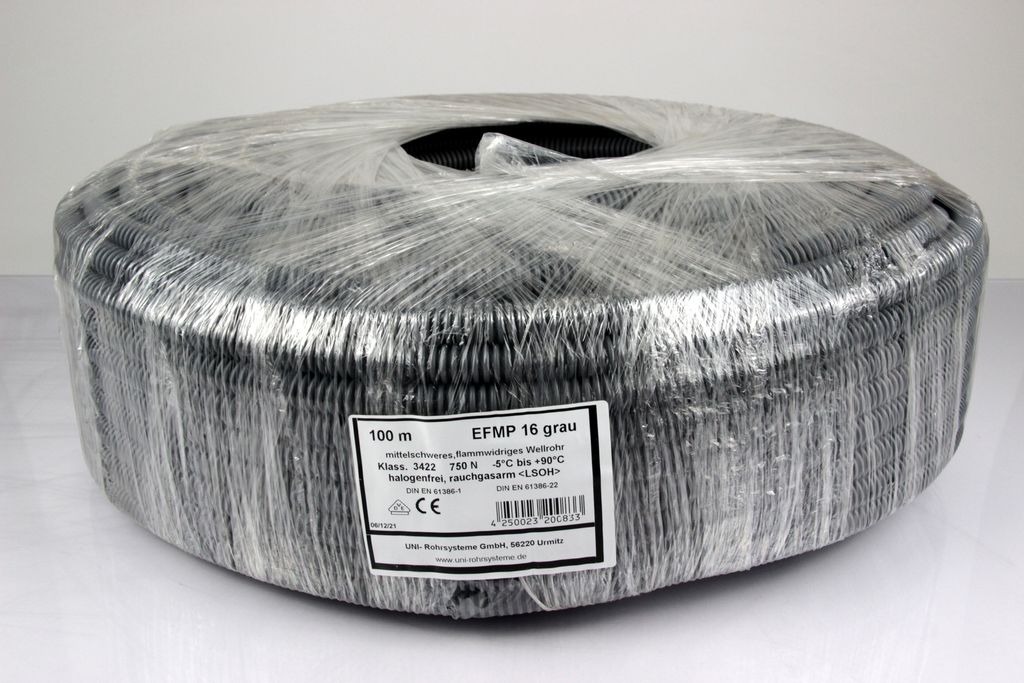

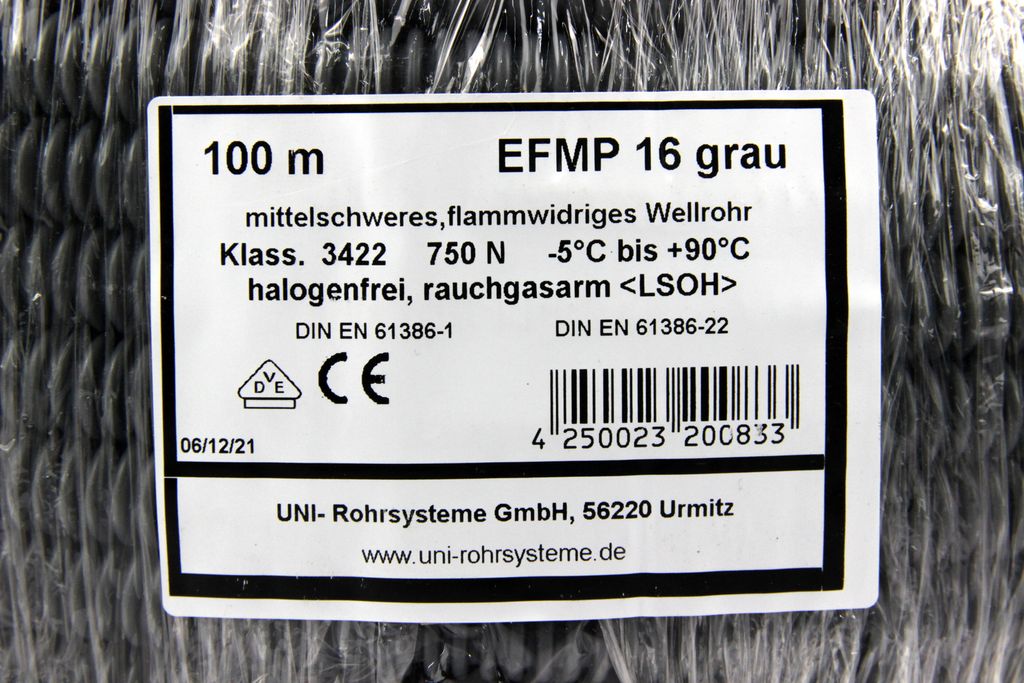

Manufacturer: UNI-Rohrsysteme GmbH, Urmitz
Type: EFMP 16 grey
Length: 100 m roll
Nominal size: 16
Compression strength: 750 N
Classification: 3422
EAN: 4250023200833
Type: EFMP 16 grey
Length: 100 m roll
Nominal size: 16
Compression strength: 750 N
Classification: 3422
EAN: 4250023200833
| Technical characteristic | Value |
|---|---|
| Condition | New |
| Age rating | No age restriction |
| Model | EFMP 16 grau |
| Manufacturer | UNI Rohrsysteme |
| Content | 100 meter |
| Weight | 4500 g |
| Dimensions | 600×600×300mm |
| Item ID | 1234599149 |
| Item ID | 1234599149 |
UNI Rohrsysteme
UNI pipe systems EFMP 16 grey 100m empty conduit corrugated pipe medium-duty flame-retardant halogen-free
Item number WZA-1875
EAN 4250023200833
Condition New
Available quantity
EUR 32.99
*
Content
100 meter
Unit price
€0.33 / meter
immediately available
* Incl. VAT excl. Shipping
