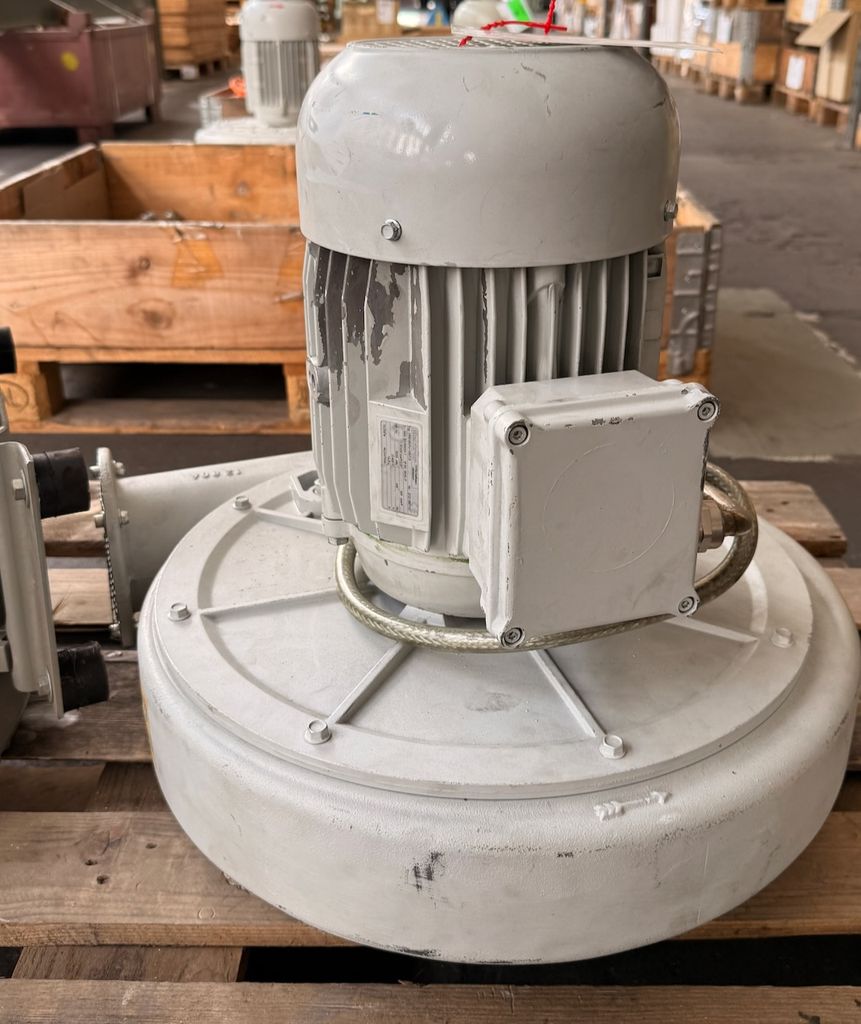

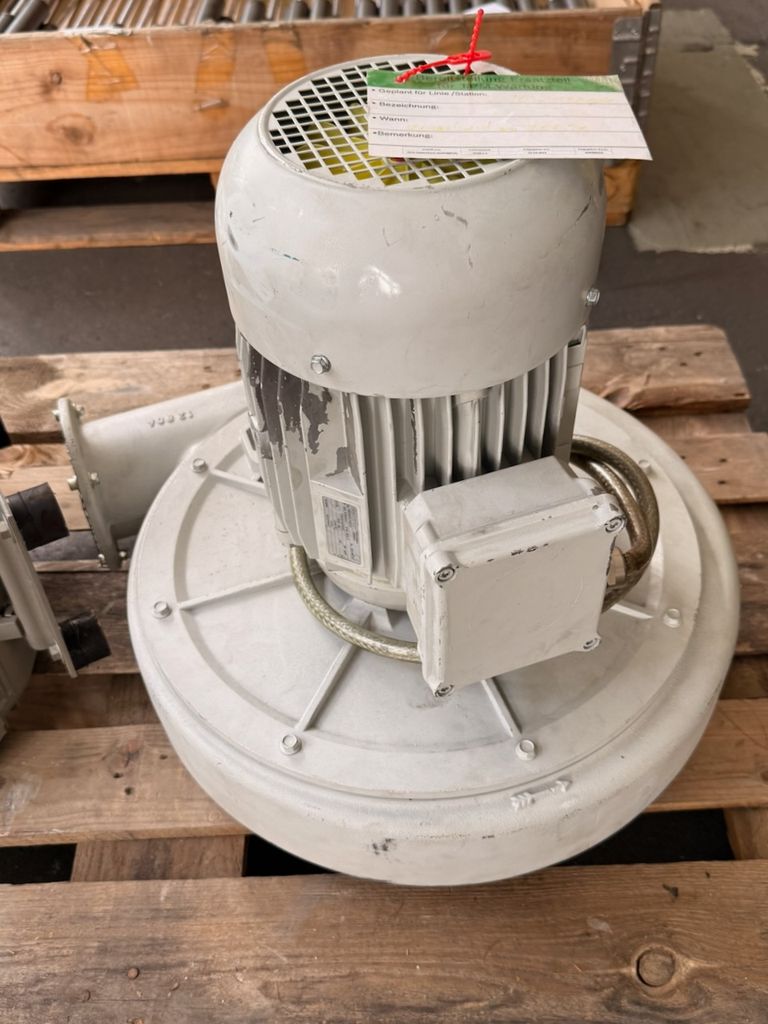

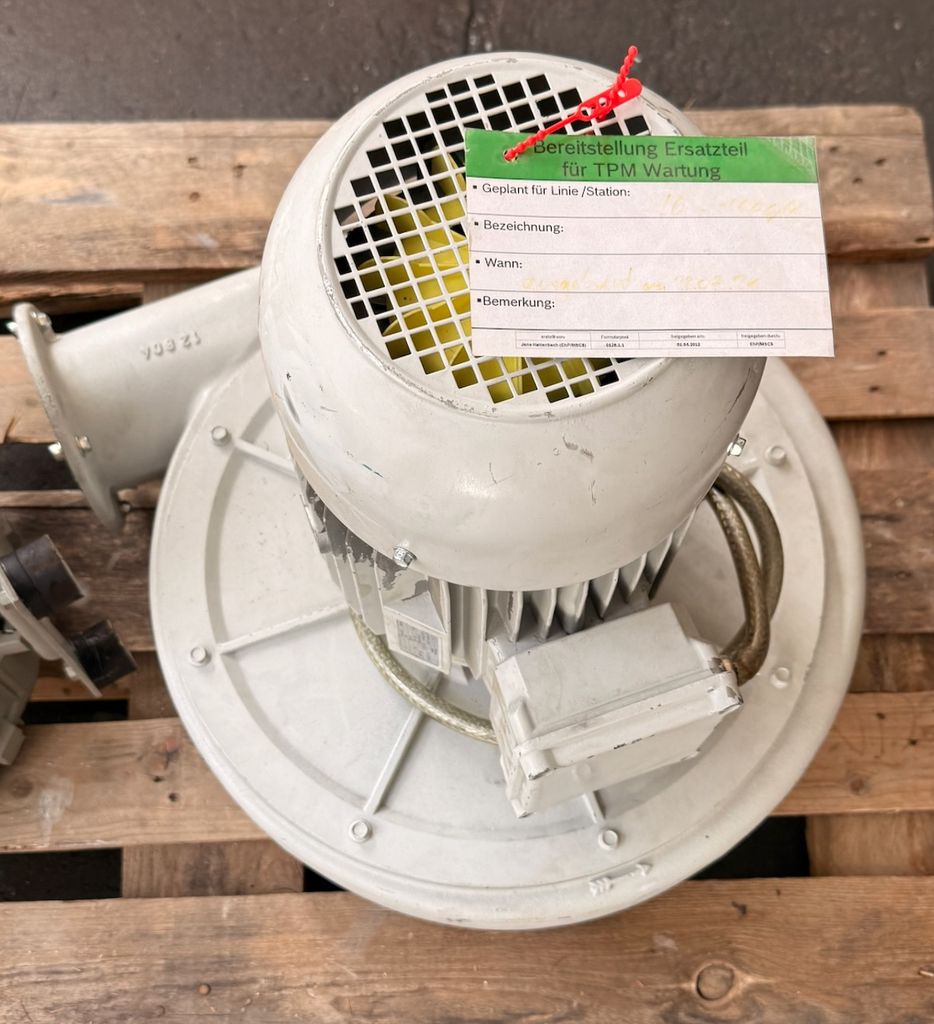

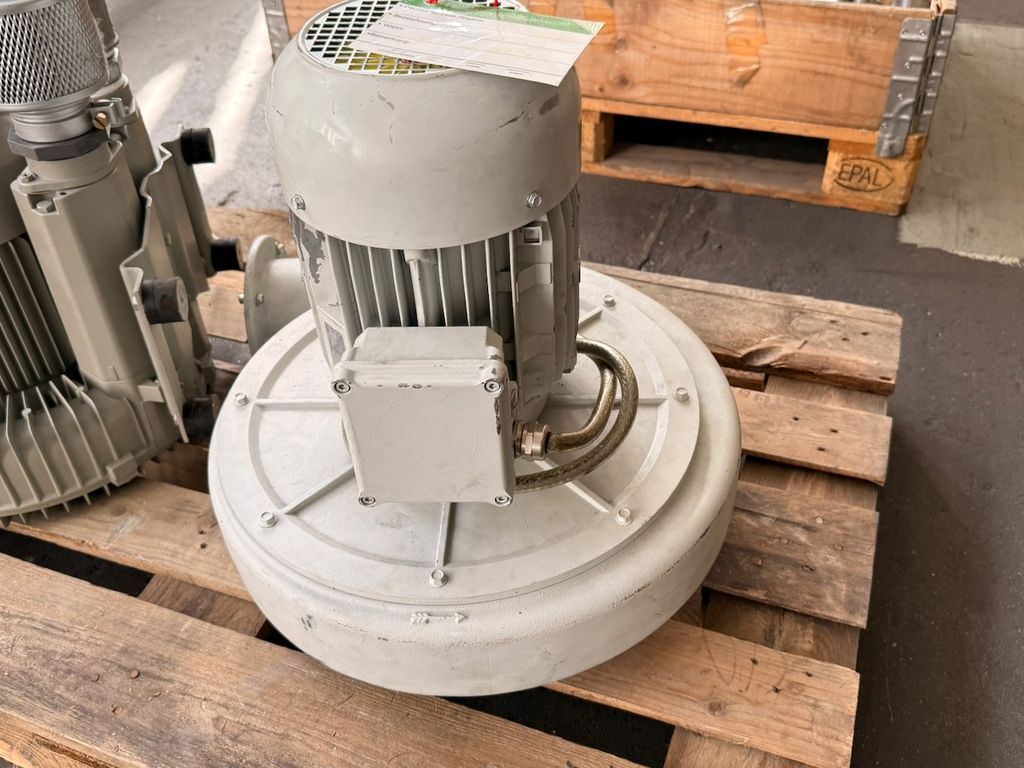

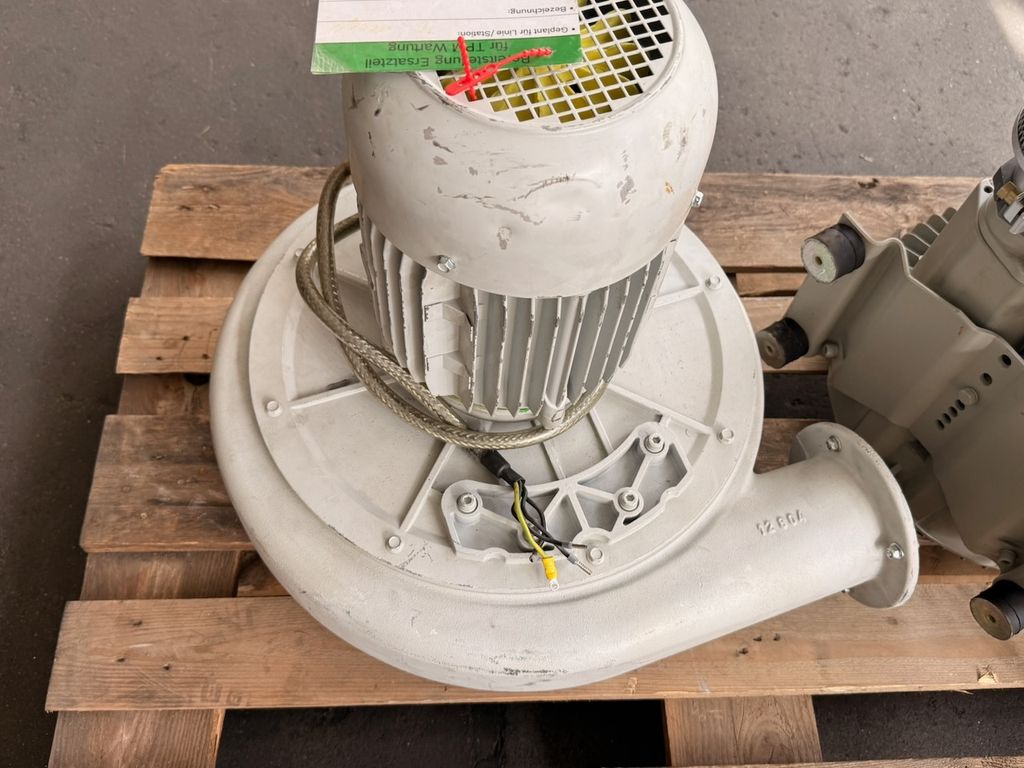

Radial fan with integrated three-phase motor and high speed for industrial use. The device achieves a motor power of 7.5 kW at up to 6235 rpm and an air flow rate of 40.0 m³/min. This type of fan is typically used for industrial ventilation and extraction as well as for pneumatic conveying and suction processes.
The device was in industrial use until recently and shows normal signs of use on the housing and paintwork. It is functional and complete.
Scope of delivery:
1 radial fan with motor
No additional accessories
The device was in industrial use until recently and shows normal signs of use on the housing and paintwork. It is functional and complete.
Scope of delivery:
1 radial fan with motor
No additional accessories

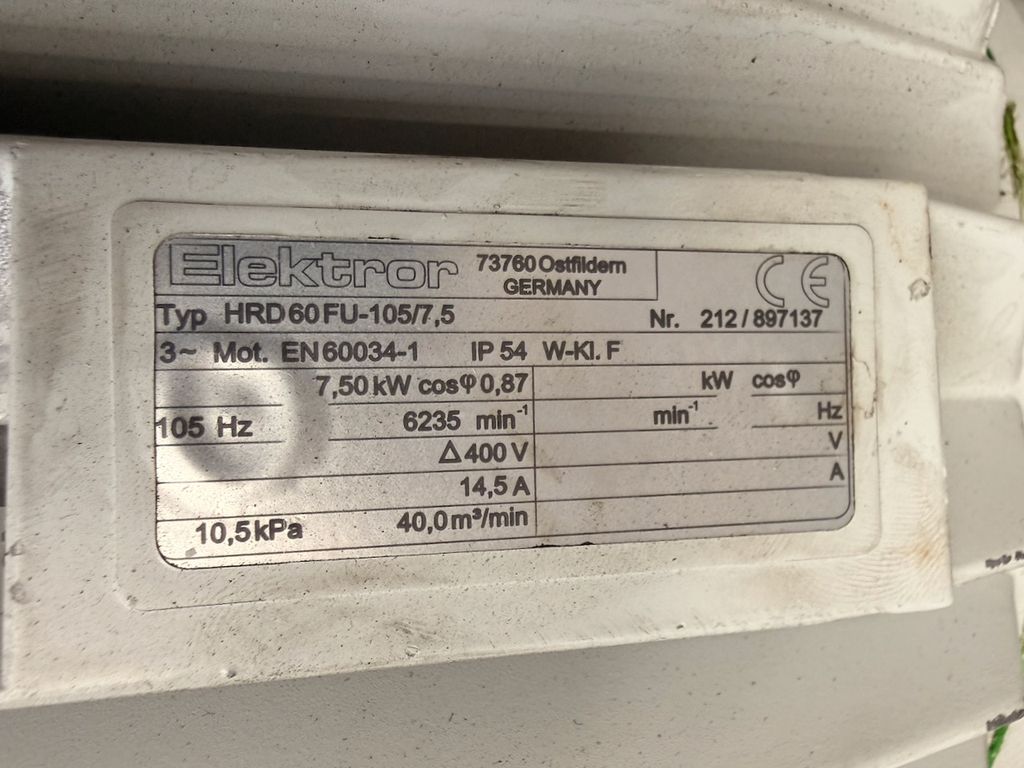

* Series: HRD 60
* Order number: HRD 60 FU-105/7.5
* Motor power: 7.50 kW
* cos phi: 0.87
* Frequency: 105 Hz
* Pressure: 10.5 kPa
* Speed: 6235 min-1
* Voltage: 400 V
* Current: 14.5 A
* Flow rate: 40.0 m³/min
* Protection class: IP 54, thermal class F
―
* Length: approx. 50 cm
* Width: approx. 50 cm
* Height: approx. 50 cm
* Weight: approx. 50 kg
* Order number: HRD 60 FU-105/7.5
* Motor power: 7.50 kW
* cos phi: 0.87
* Frequency: 105 Hz
* Pressure: 10.5 kPa
* Speed: 6235 min-1
* Voltage: 400 V
* Current: 14.5 A
* Flow rate: 40.0 m³/min
* Protection class: IP 54, thermal class F
―
* Length: approx. 50 cm
* Width: approx. 50 cm
* Height: approx. 50 cm
* Weight: approx. 50 kg
| Technical characteristic | Value |
|---|---|
| Condition | Used |
| Age rating | No age restriction |
| Variation ID | |
| Model | HRD 60 FU-105/7,5 |
| Manufacturer | Elektror |
| Content | 1 piece |
| Weight | 50000 g |
| Dimensions | 500×500×500mm |
| Item ID | 1234600420 |
| Item ID | 1234600420 |
Elektror
Elektror HRD 60 FU-105/7.5 radial fan with 7.5 kW motor
Item number EQU-1157
EAN
Condition Used
Available quantity
EUR 600.00
*
Content
1 piece
immediately available
* Incl. VAT excl. Shipping
