PCI frame grabber for capturing digital signals up to 56 bits according to CameraLink standard

Applications: Industrial applications

Information according to manufacturer
Item from plant decommissioning

For an area or line scan camera with CameraLink-BASE interface 32 MB image memory, linear transfer rates up to 240 MByte/s via PCI 64 / PCI-X With 85 MHz CameraLink transmitter and receiver Hardware-implemented scatter/gather DMA transfer enables data transfer without CPU load Online sorting of multi-tap cameras 2 independent trigger inputs (TTL, RS422 or opto-isolated) 2 independent shaft encoder interrupt support for various events 2 look-up tables (LUT) of 64 KB each RS232 interface for direct control of a camera

Technical characteristic Value
Condition Used
Age rating No age restriction
Model X64-CL iPRO\LITE
Manufacturer COREGO iMAGING (DALSA)
Content 1 piece
Weight 200 g
Item ID 1234574222
Item ID 1234574222

COREGO iMAGING (DALSA)

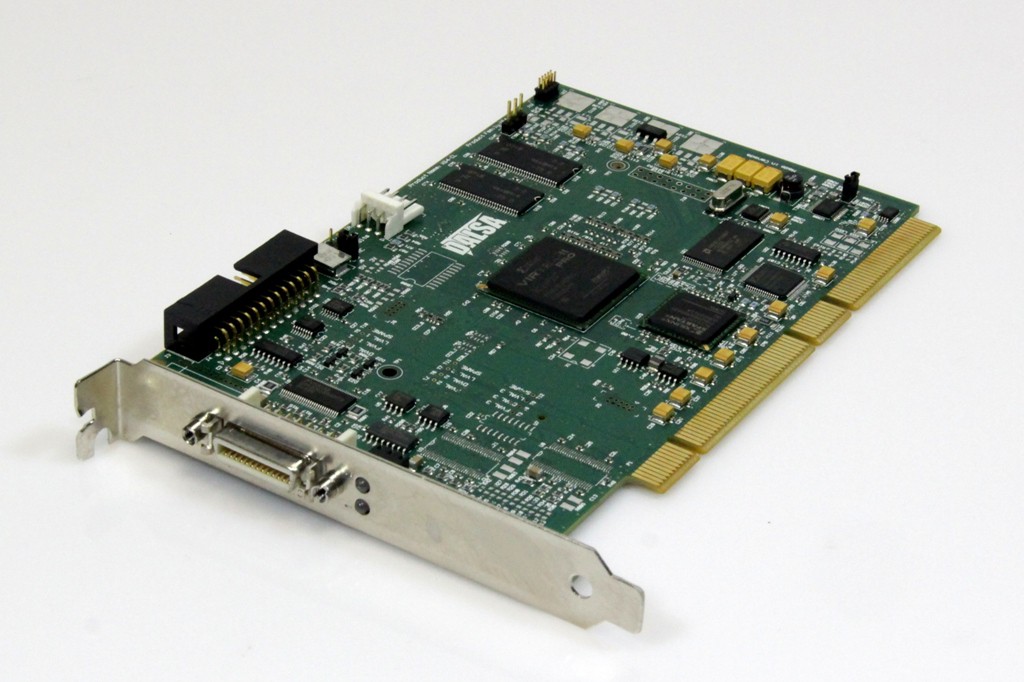

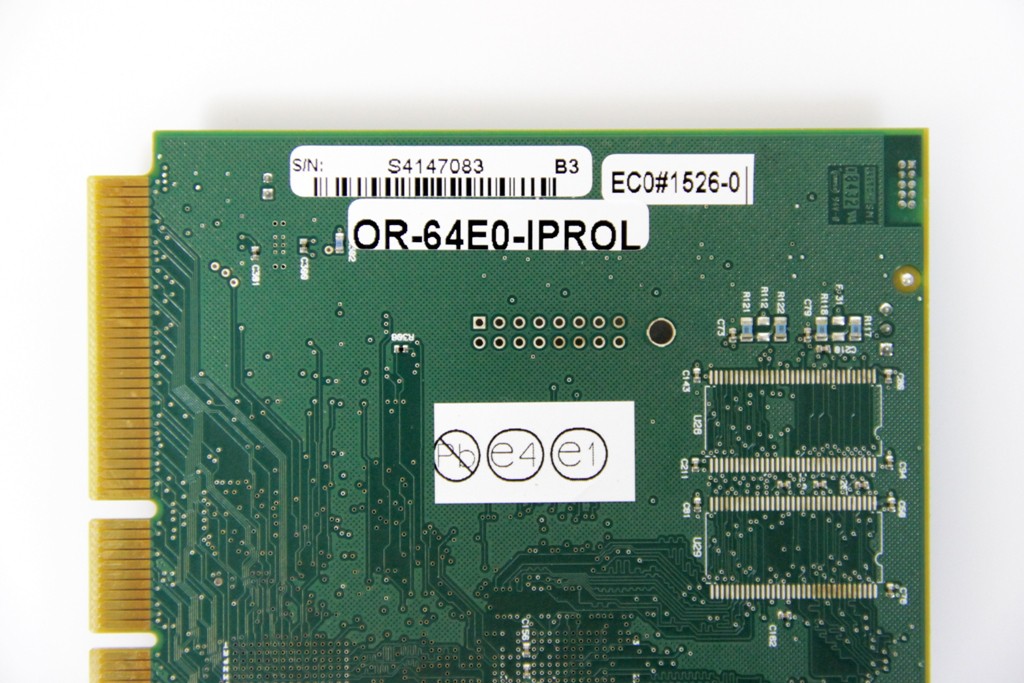

COREGO iMAGING PCI Frame Grabber CameraLink X64-CL iPRO\LITE OR-64E0-IPROL


Item number VN-4369
EAN
Condition Used
Available quantity
EUR 227.21 *
Content 1 piece
immediately available
* Incl. VAT excl. Shipping
