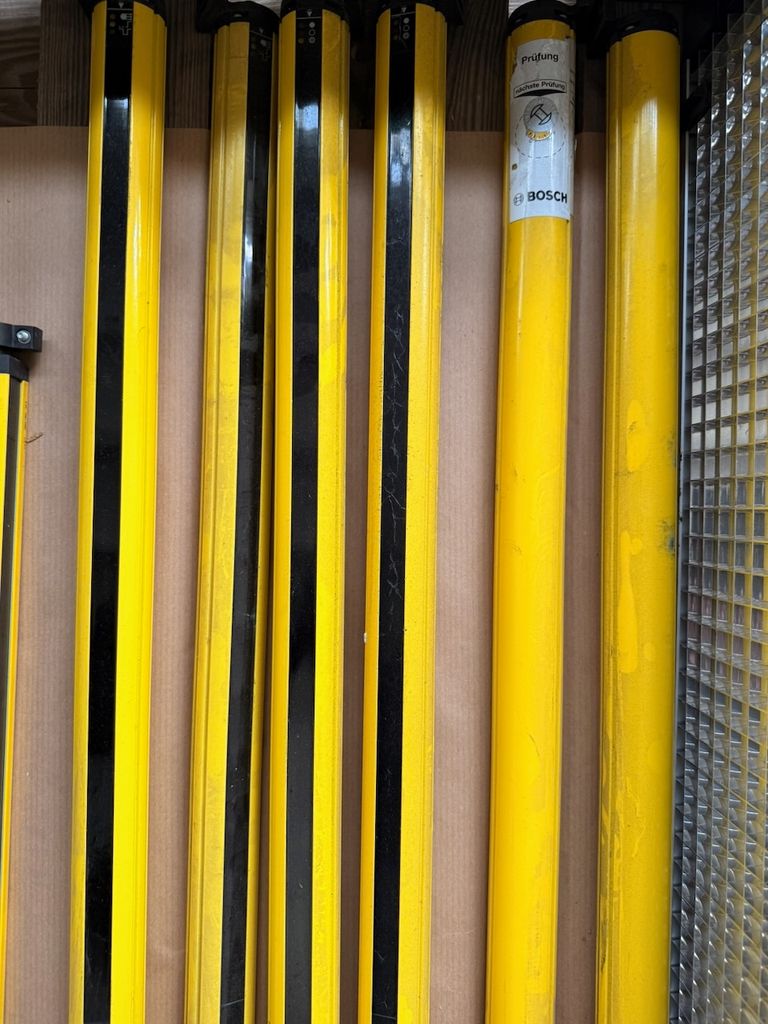

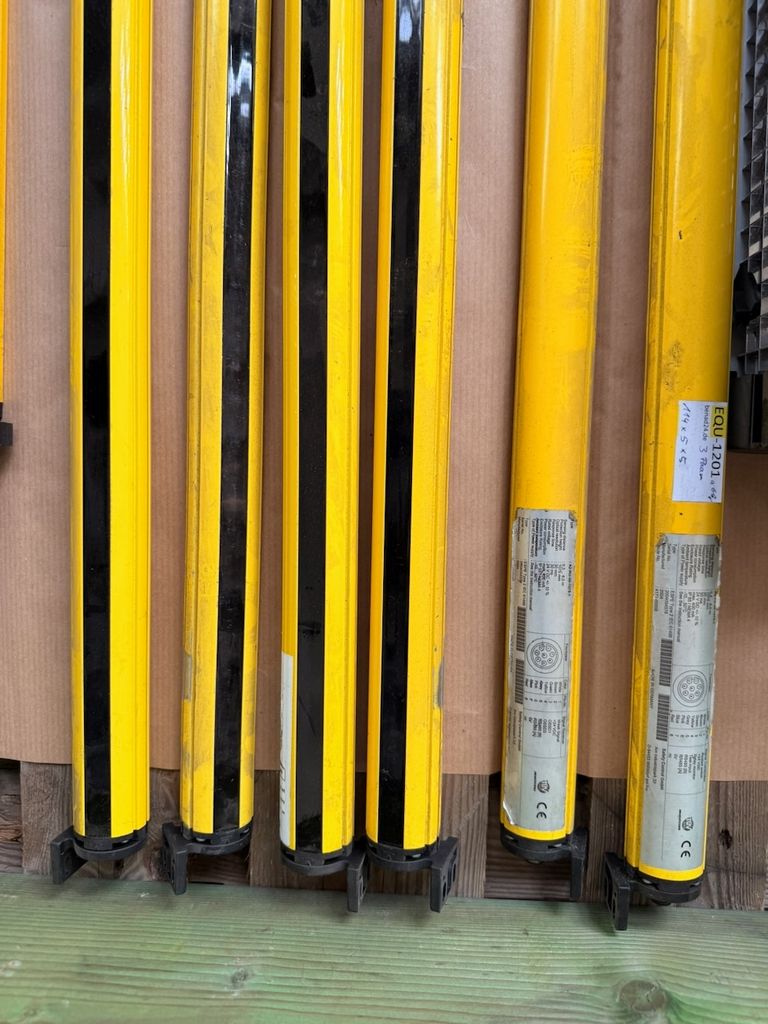

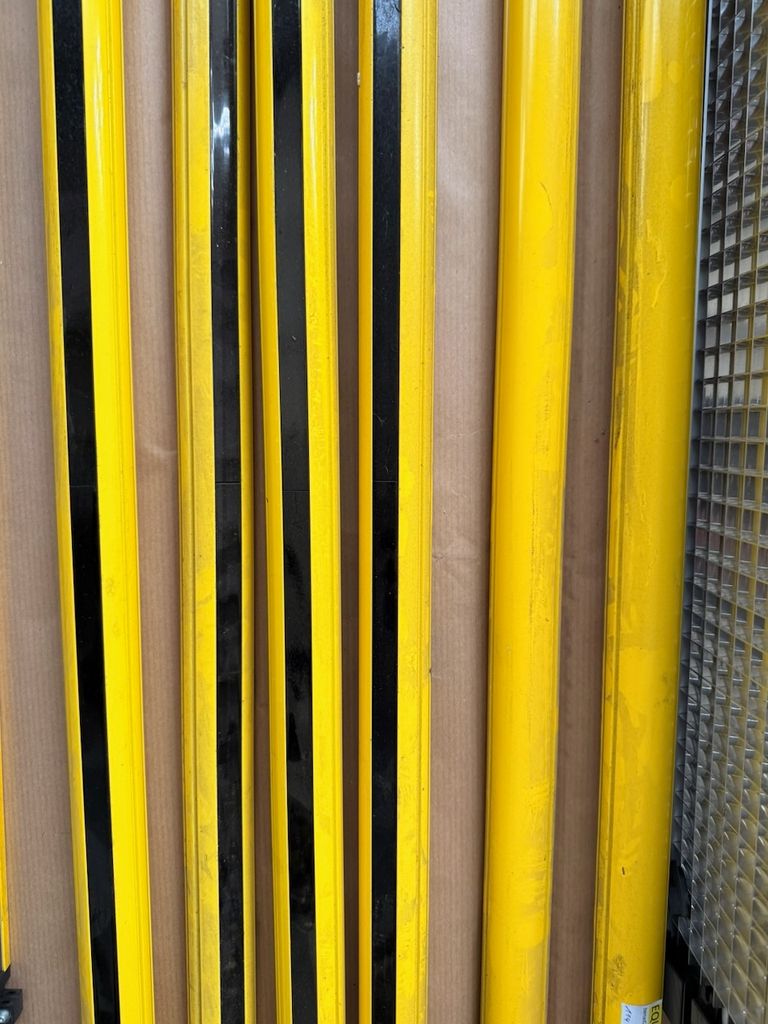

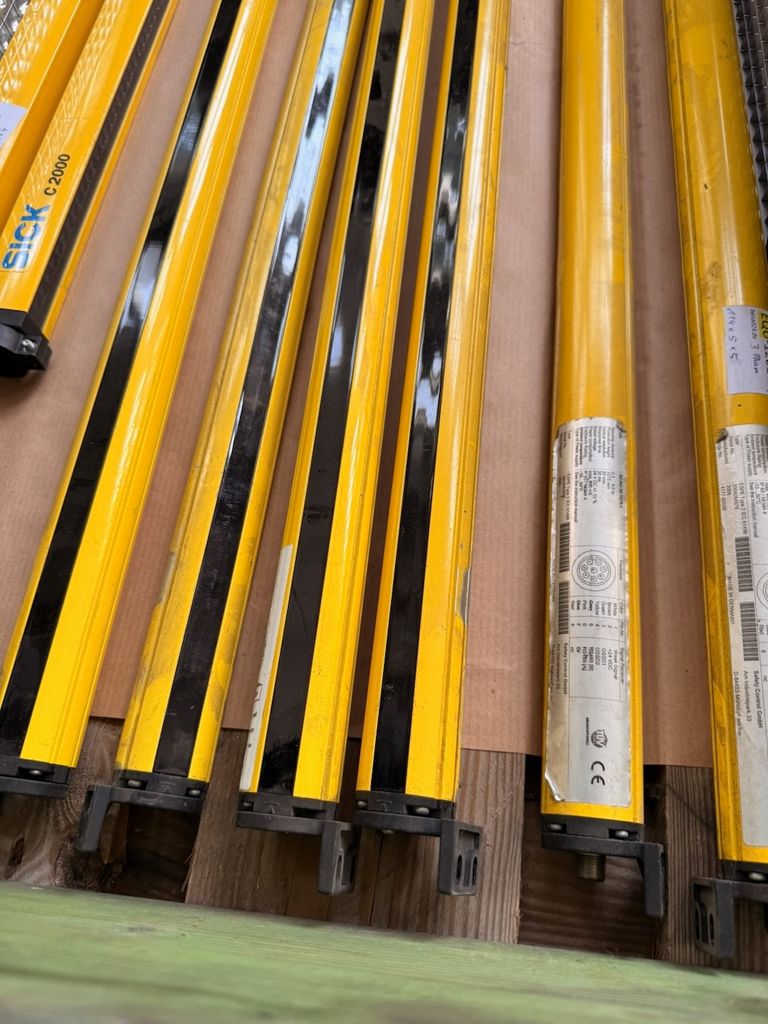

Safety light curtain (light barrier, transmitter/receiver pair) with a protective height of 1075 mm and a sensing range of 0.3 to 6.0 m. The optical resolution is 30 mm with a response time of 30 ms, operating voltage 24 V DC. The device is used for safeguarding hazardous areas on machines and systems in accordance with IEC 61496.
Used, functional, with normal signs of use on the housing and surface.
Scope of delivery:
1 pair of safety light curtains (transmitter and receiver)
Mounting brackets
Without connection cable and control unit
Used, functional, with normal signs of use on the housing and surface.
Scope of delivery:
1 pair of safety light curtains (transmitter and receiver)
Mounting brackets
Without connection cable and control unit

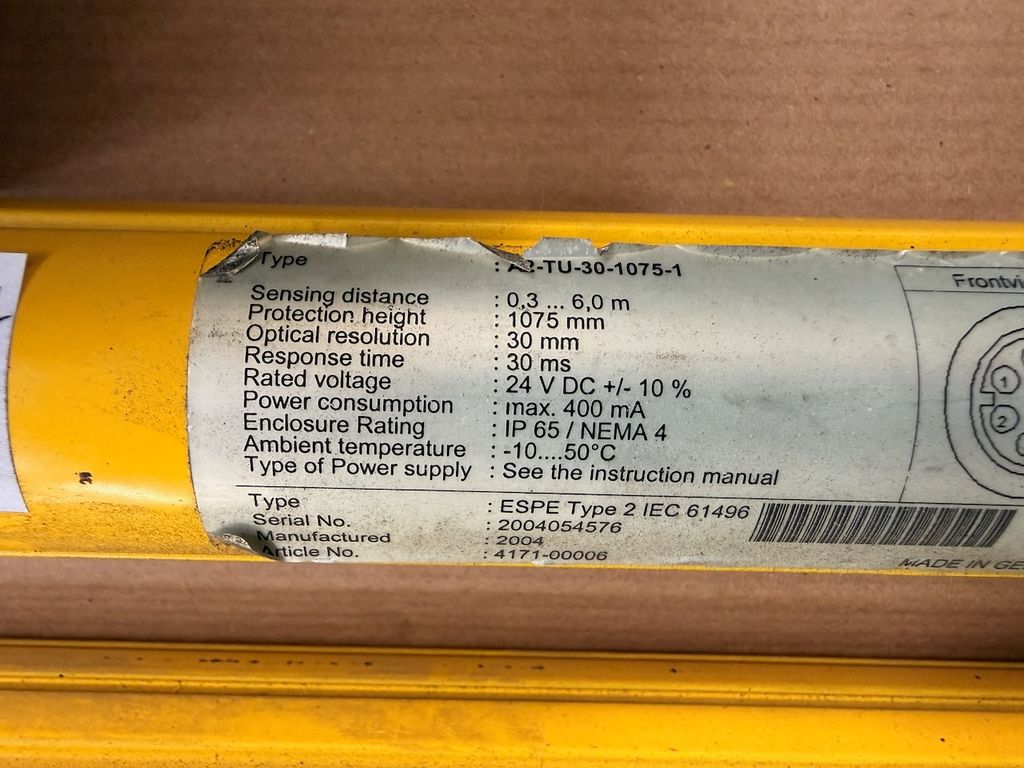

* Order number: 4171-00006
* Year of manufacture: 2004

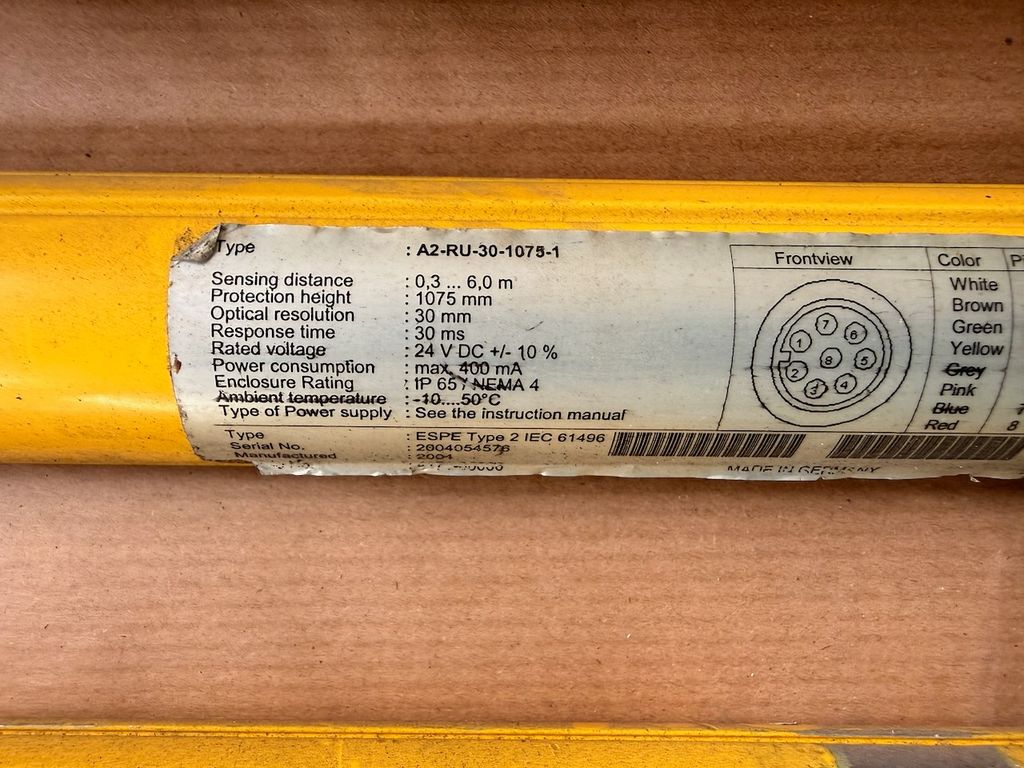

* Model designation: A2-RU-30-1075-1
* Safety class: ESPE Type 2 IEC 61496
* Range: 0.3 ... 6.0 m
* Protective height: 1075 mm
* Optical resolution: 30 mm
* Response time: 30 ms
* Rated voltage: 24 V DC +/- 10 %
* Power consumption: max. 400 mA
* Protection class: IP 65 / NEMA 4
* Ambient temperature: -10 to 50 °C

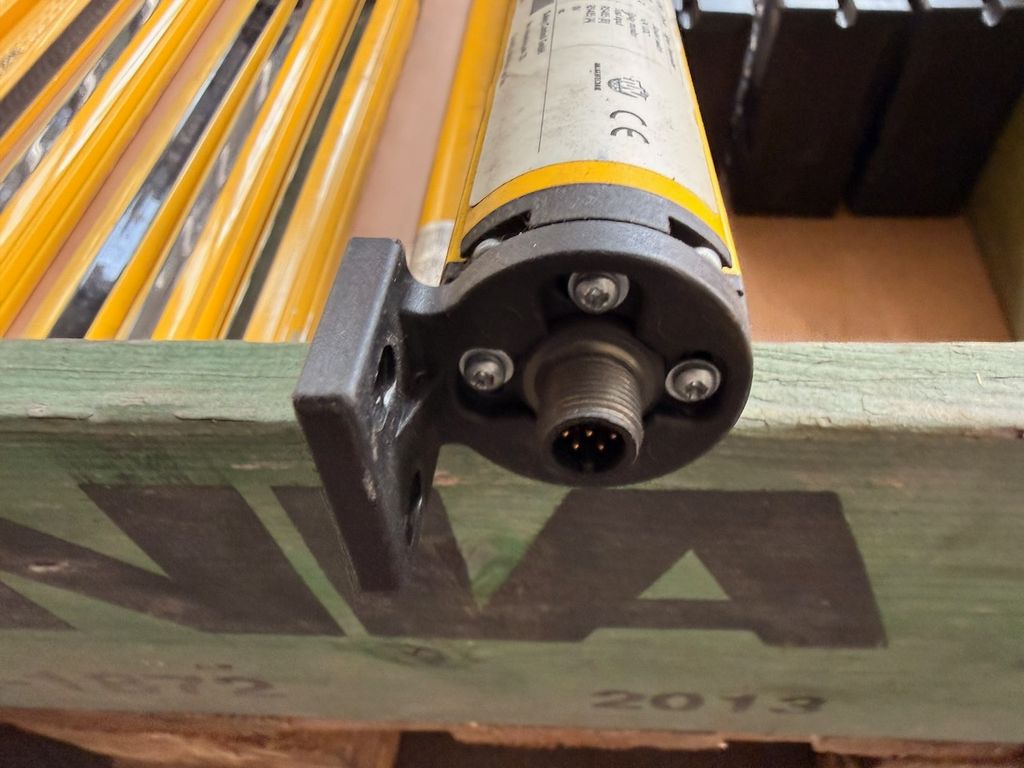

* Connection: Circular connector, multipole
―
* Length: 114 cm
* Width: 5 cm
* Height: 5 cm
* Year of manufacture: 2004
* Model designation: A2-RU-30-1075-1
* Safety class: ESPE Type 2 IEC 61496
* Range: 0.3 ... 6.0 m
* Protective height: 1075 mm
* Optical resolution: 30 mm
* Response time: 30 ms
* Rated voltage: 24 V DC +/- 10 %
* Power consumption: max. 400 mA
* Protection class: IP 65 / NEMA 4
* Ambient temperature: -10 to 50 °C
* Connection: Circular connector, multipole
―
* Length: 114 cm
* Width: 5 cm
* Height: 5 cm
| Technical characteristic | Value |
|---|---|
| Condition | Used |
| Age rating | No age restriction |
| Variation ID | |
| Model | A2-RU-30-1075-1 |
| Manufacturer | Safety Control |
| Content | 1 piece |
| Weight | 5000 g |
| Dimensions | 1140×50×50mm |
| Item ID | 1234600397 |
| Item ID | 1234600397 |
Safety Control
Safety Control A2-RU-30-1075-1 Light Curtain Safety Light Barrier 1075 mm
Item number EQU-1201
EAN
Condition Used
Available quantity
EUR 180.00
*
Content
1 piece
immediately available
* Incl. VAT excl. Shipping
