One-way light barrier for standard applications, miniature design, range 4.5 m, red light, dark switching, PNP output, test input, fixed cable

- Reliable sensor for standard applications
- Miniature design with various mounting options
- Automatic sensitivity adjustment via Teach-In
- Interference-proof: Reliable operation under all conditions
- Certified according to ECOLAB

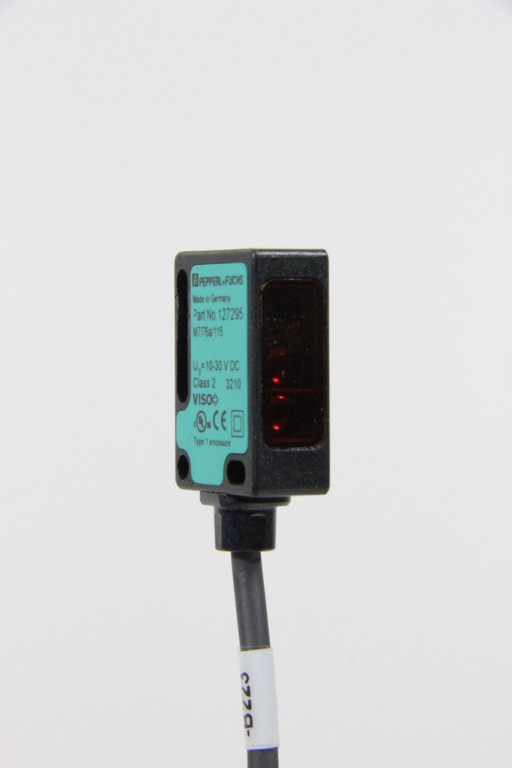

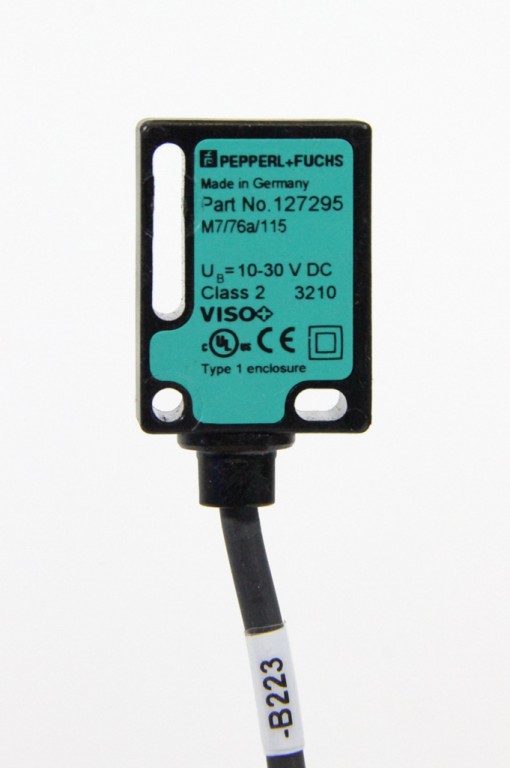

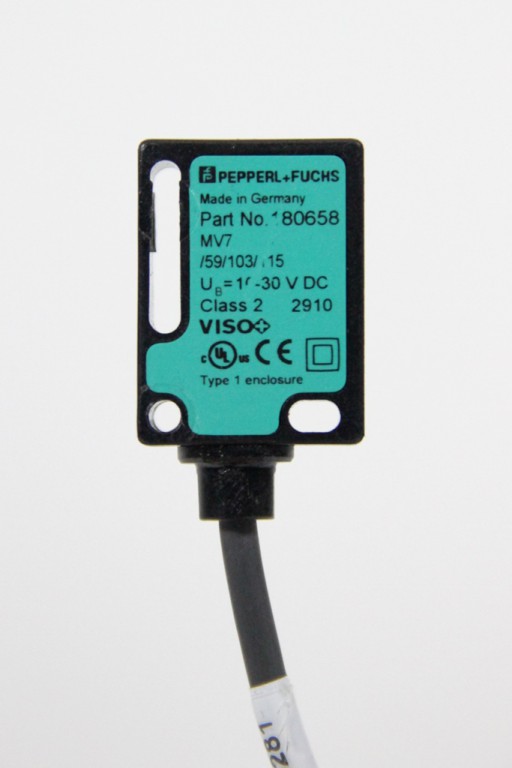

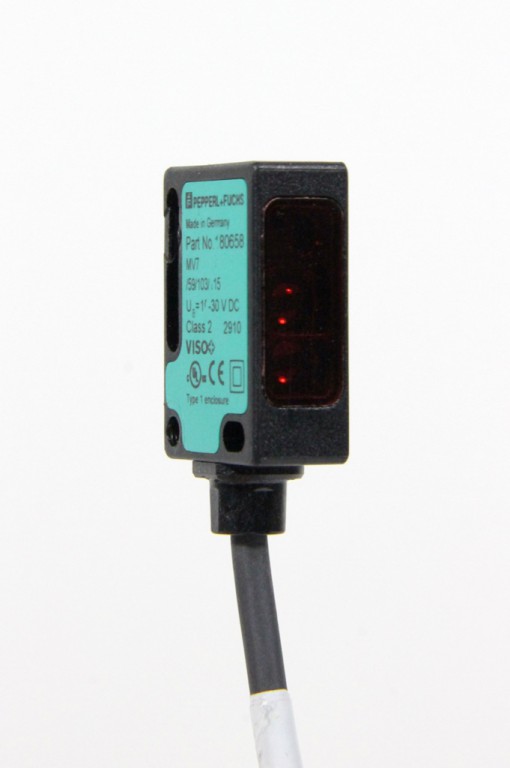

Transmitter: M7/76a/115 Receiver: MV7/59/103/115

General Data Operating range 0 ..3.5 m Limit range 4.5 m Light transmitter LED Light type red, alternating light Obstacle size min 7 mm Light spot diameter approx. 180 mm at a distance of 3.5 m Opening angle approx. 3 ° Functional safety characteristics MTTFd 1130 years Service life (TM) 20 years Diagnostic coverage (DC) 60 % Indicators/Controls Function indicator Receiver: yellow LED, lights up with free light beam, blinks when functional reserve is undershot Controls Receiver: Teach-In button Electrical Data Operating voltage 10 ..30 V DC, class 2 Output Switching type dark-switching Signal output 1 PNP output, short-circuit proof, reverse polarity protected, open collector According to manufacturer specifications.

Condition Used
Age rating No age restriction
Model M7/MV7/59/76a/103/115
Manufacturer Pepperl+Fuchs
Content 1 piece
Weight 200 g
Item ID 1234575221
Item ID 1234575221

Pepperl+Fuchs

PEPPERL+FUCHS through-beam sensor 0...4.5 m M7/MV7/59/76a/103/115


Item number VN-4945
EAN
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 28.95 *
Content 1 piece
immediately available
