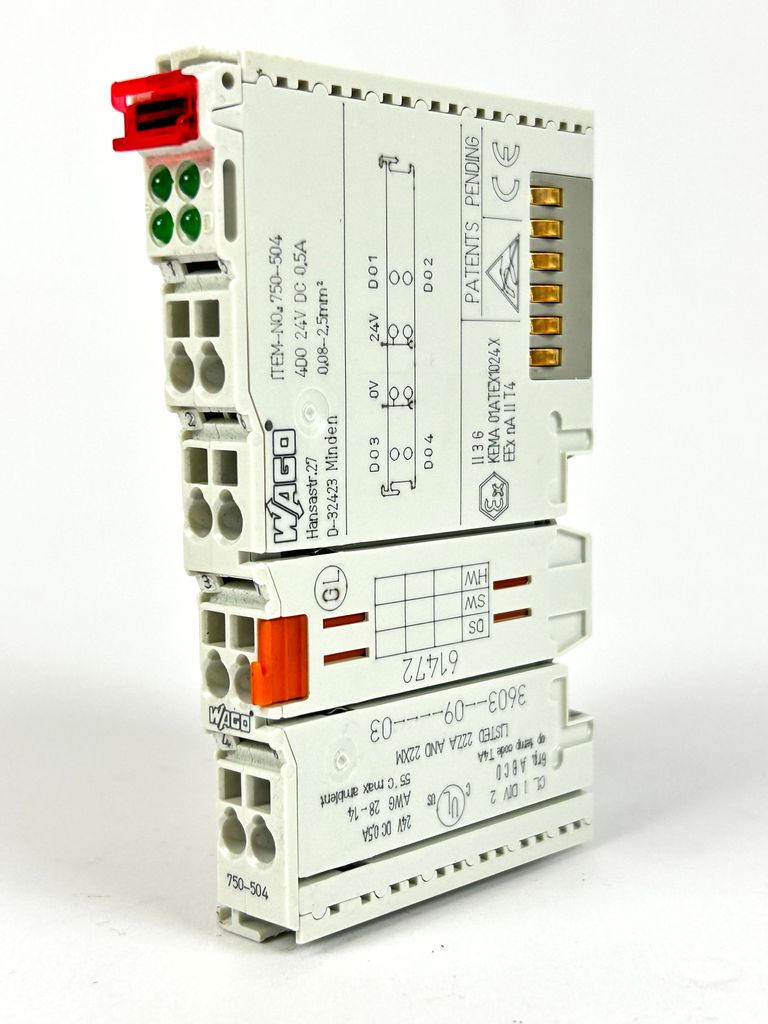

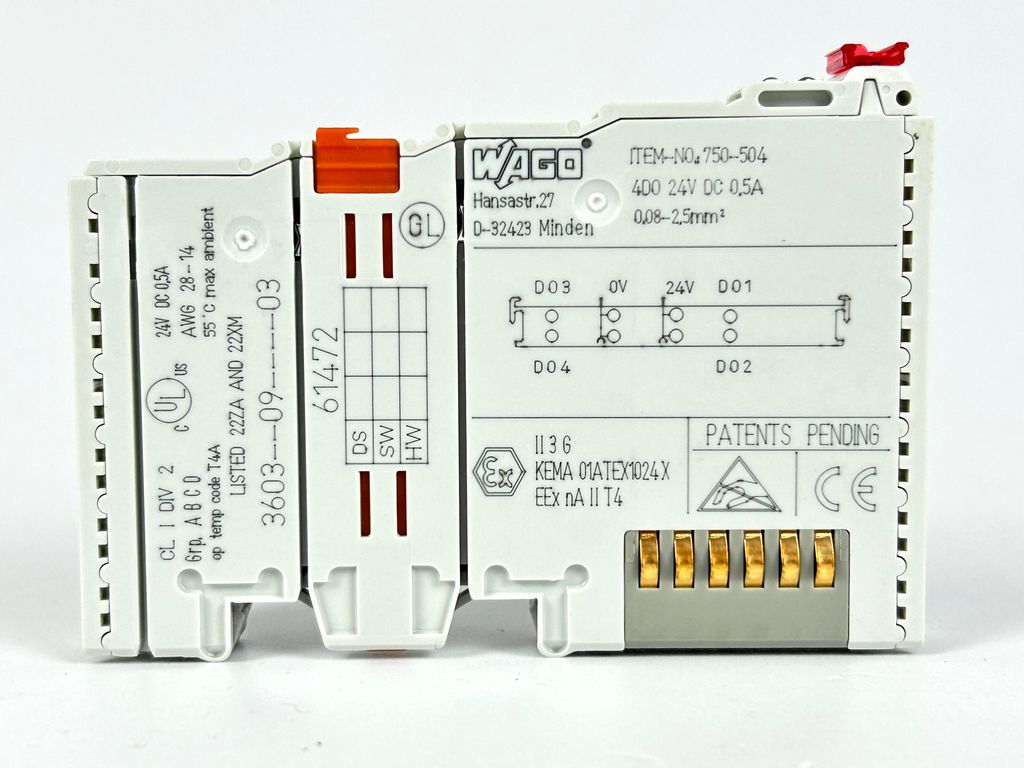

4-channel digital output terminal; DC 24 V; 0.5 A; positive switching; short-circuit proof
The digital output terminal transmits control signals from the automation device to the connected actuators
All outputs are designed to be short-circuit proof
Field and system levels are galvanically isolated
Item from plant decommissioning.
The digital output terminal transmits control signals from the automation device to the connected actuators
All outputs are designed to be short-circuit proof
Field and system levels are galvanically isolated
Item from plant decommissioning.
Name Value Unit Color light gray Conformity marking CE Number of outputs 4 Potential separation 500 V system/supply Voltage over power contacts DC 24 V (-25% ..+30%) Current consumption (internal) [mA] 10 mA Current consumption typ (field side) 30 mA / module + load Output current max. 0.5 A short-circuit proof Load type resistive, inductive, lamp load Max switching frequency 1 kHz Absorbable energy W max (single shutdown) 0.3 J; L max = 2 x W max / I2 Data width internal 4 Bit Protection class IP20 Connection technology 1 CAGE CLAMP® single-wire, connectable 1 0.08 … 2.5 mm² / 28 … 14 AWG fine-wire, connectable 1 0.08 … 2.5 mm² / 28 … 14 AWG Stripping length 1 8 … 9 mm / 0.31 … 0.35 in Fire load [MJ] 1.427 MJ Weight [g] 48.5 g Width 12 mm / 0.472 in Height from top edge of mounting rail [mm] 64 mm Height from top edge of mounting rail 64 mm / 2.52 in Depth 100 mm / 3.937 in Storage temperature -25 °C ..+85 °C Relative humidity (without condensation) [%] 95 % Mounting type DIN rail 35 Operating temperature 0 °C ..+55 °C EMC emission according to EN 61000-6-4, ship area EMC immunity according to EN 61000-6-2, ship area Shock resistance according to IEC 60068-2-27 Vibration resistance according to IEC 60068-2-6
| Technical characteristic | Value |
|---|---|
| Condition | Used |
| Age rating | No age restriction |
| Model | 750-504 |
| Manufacturer | WAGO Kontakttechnik GmbH & Co. KG |
| Content | 1 piece |
| Weight | 200 g |
| Item ID | 1234574734 |
| Item ID | 1234574734 |
WAGO Kontakttechnik GmbH & Co. KG
WAGO 750-504 4-channel digital output terminal DC 24 V
Item number VN-4706
EAN 4045454582326
Condition Used
Available quantity
EUR 6.99
*
Content
1 piece
Unit price
€6.99 / piece
immediately available
* Incl. VAT excl. Shipping
