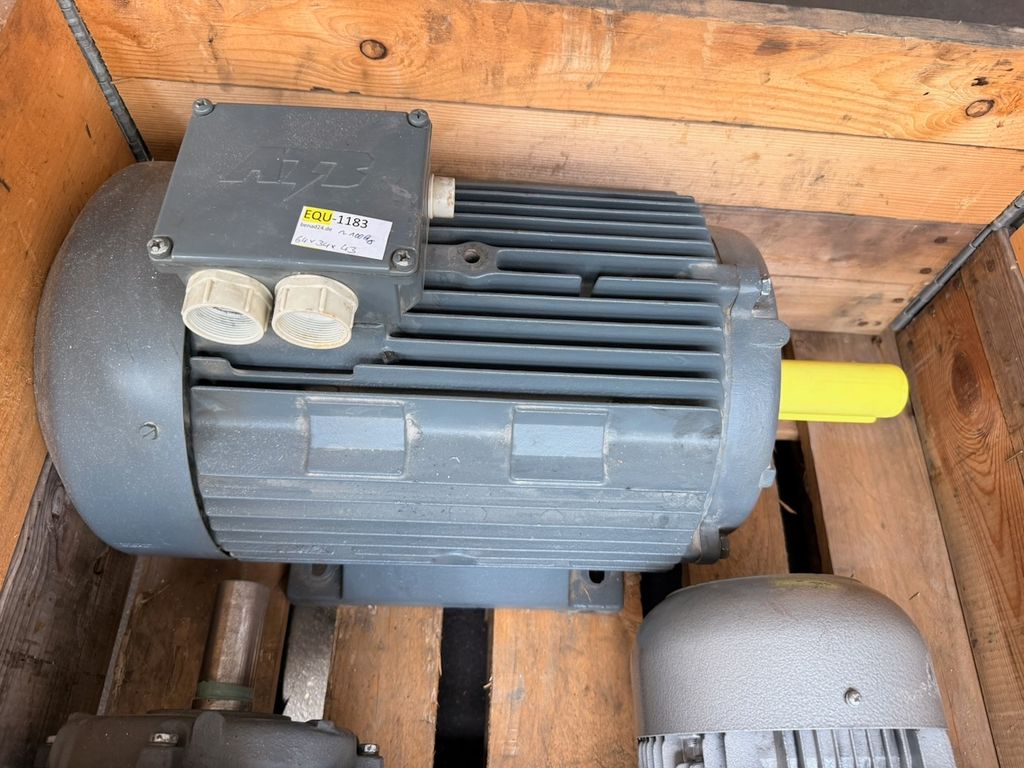

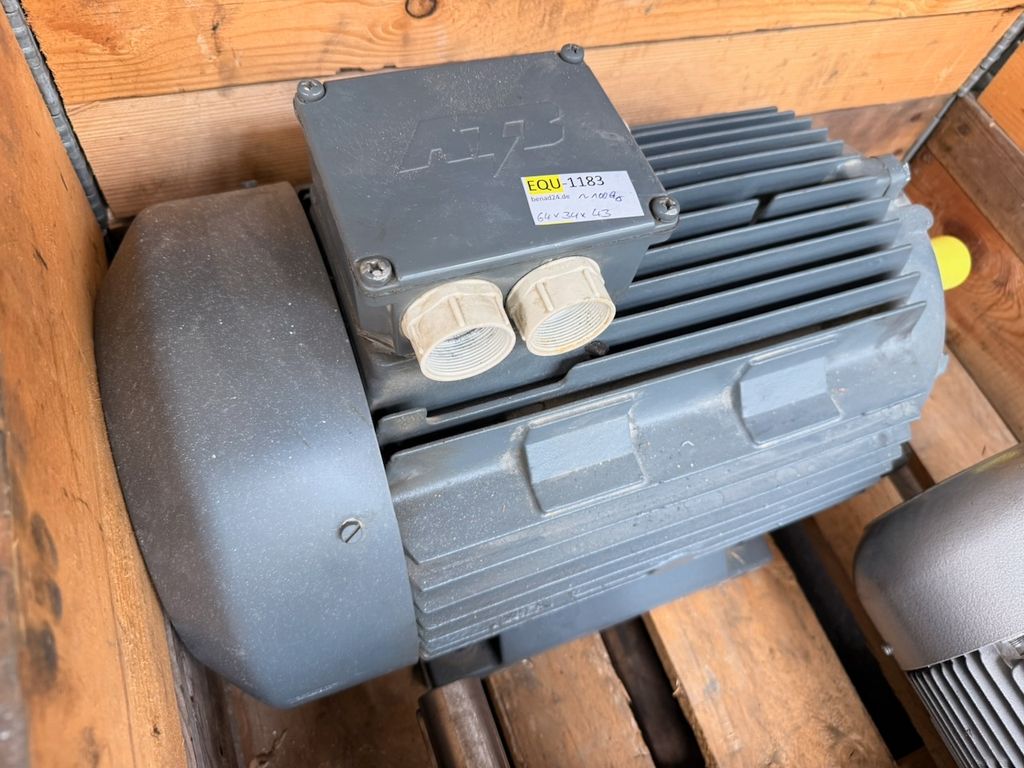

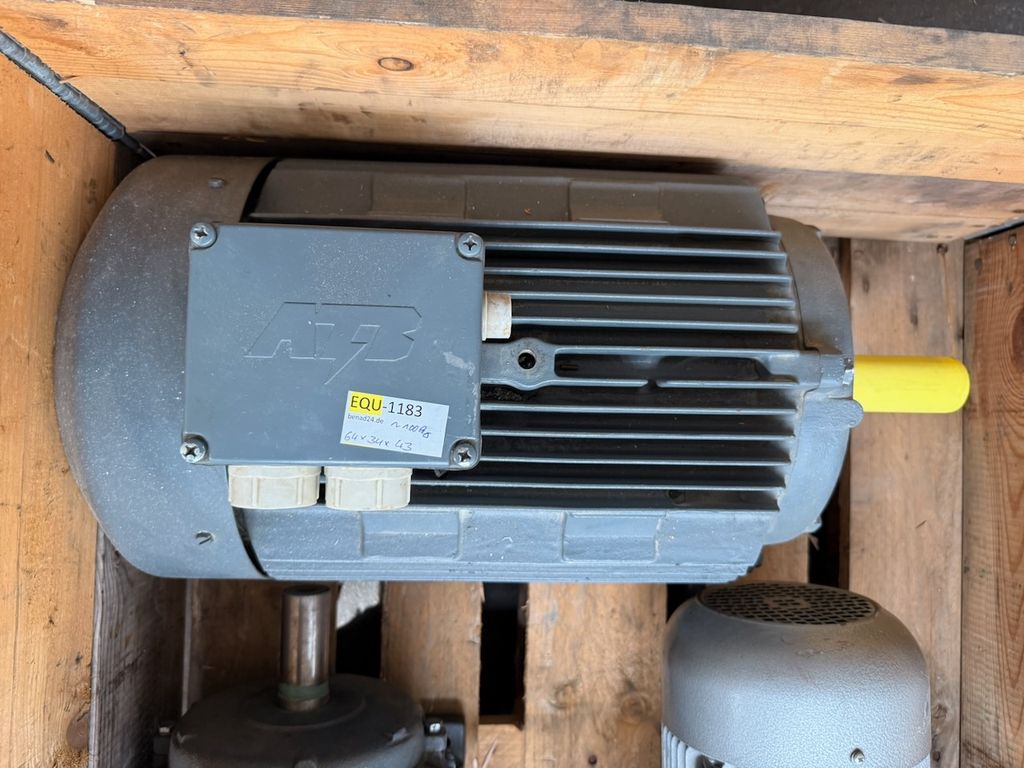

Three-phase electric motor in pole-switchable design with 14.0 kW at 1470 rpm and 3.5 kW at 730 rpm. The motor operates at 380 V, 50 Hz and has protection class IP 54. Electric motors of this type are used to drive pumps, fans, compressors, and other industrial machines.

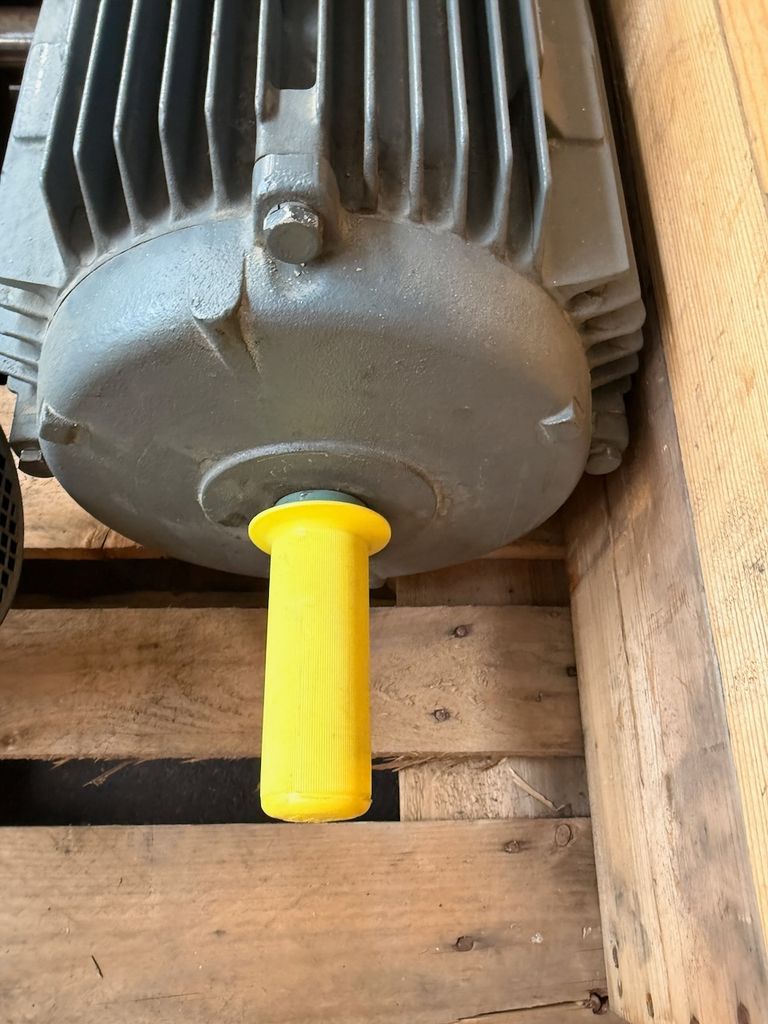

The device was in industrial use until recently and shows normal signs of use. The shaft is equipped with transport protection.
Scope of delivery:
1 three-phase electric motor ATB 160L
Terminal box with terminals
Transport protection on the shaft
The device was in industrial use until recently and shows normal signs of use. The shaft is equipped with transport protection.
Scope of delivery:
1 three-phase electric motor ATB 160L
Terminal box with terminals
Transport protection on the shaft

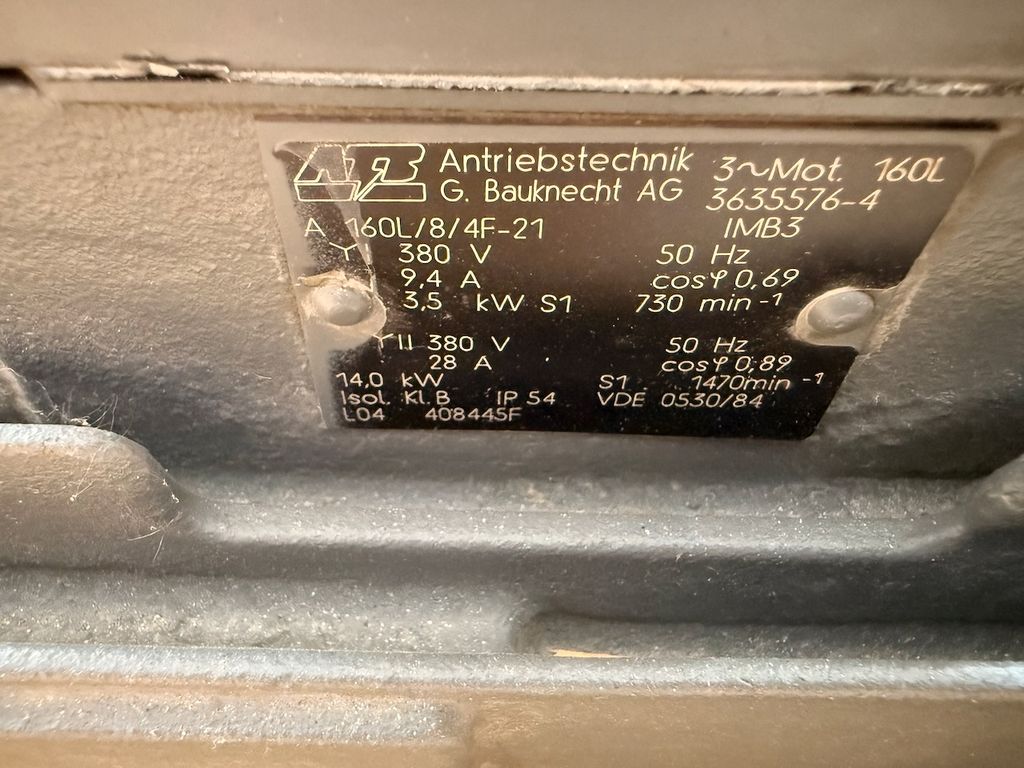

* Series: 160L
* Connection: 380 V / 3~ / 50 Hz
* Power Y: 3.5 kW S1 at 730 min-1
* Power YII: 14.0 kW S1 at 1470 min-1
* Current Y: 9.4 A
* Current YII: 28 A
* Cos phi: 0.69 / 0.89
* Insulation class: B
* Protection type: IP 54
* Design: IMB3
* Order number: A 160L/8/4F-21
* Series: 160L
―
* Length: approx. 64 cm
* Width: approx. 34 cm
* Height: approx. 43 cm
* Connection: 380 V / 3~ / 50 Hz
* Power Y: 3.5 kW S1 at 730 min-1
* Power YII: 14.0 kW S1 at 1470 min-1
* Current Y: 9.4 A
* Current YII: 28 A
* Cos phi: 0.69 / 0.89
* Insulation class: B
* Protection type: IP 54
* Design: IMB3
* Order number: A 160L/8/4F-21
* Series: 160L
―
* Length: approx. 64 cm
* Width: approx. 34 cm
* Height: approx. 43 cm
| Technical characteristic | Value |
|---|---|
| Condition | Used |
| Age rating | No age restriction |
| Variation ID | |
| Model | A 160L/8/4F-21 |
| Manufacturer | ATB |
| Content | 1 piece |
| Weight | 100000 g |
| Dimensions | 640×340×430mm |
| Item ID | 1234600459 |
| Item ID | 1234600459 |
ATB
ATB A 160L/8/4F-21 three-phase motor electric motor 14.0 kW pole-switchable
Item number EQU-1183
EAN
Condition Used
Available quantity
EUR 380.00
*
Content
1 piece
immediately available
* Incl. VAT excl. Shipping
