Manufacturer: Siemens
Type: 3RV1011-0DA10EAN: 4011209263451
CLASS 10, Size S00

Unused stock in original packaging.

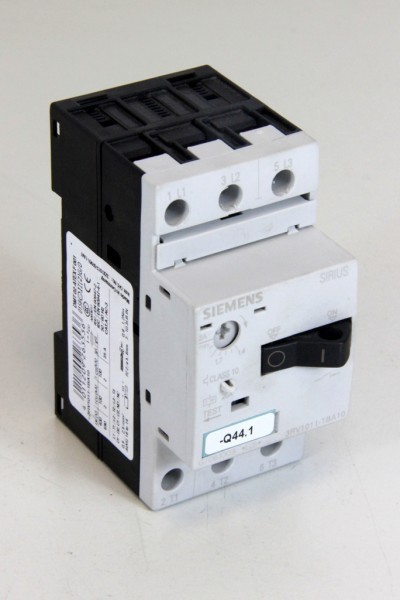

Example illustration.

Setting range overload release: 0.22..0.32 ASetting range of the instantaneous short-circuit release: 4.2..4.2 APhase failure sensitive: yesRelease technology: thermomagneticRated continuous current Iu: 0.32 ARated operational power at AC-3, 400 V: 0.09 kWConnection type main circuit: screw connectionDevice design: built-in device fixed installation technologyWith integrated auxiliary switch: noWith integrated undervoltage release: noNumber of poles: 3Rated limit short-circuit breaking current Icu at 400 V, AC: 100 kADegree of protection (IP): IP20

Technical characteristic Value
Condition New
Age rating No age restriction
Model 3RV1011-0DA10
Manufacturer SIEMENS
Content 1 piece
Weight 300 g
Item ID 1234571422
Item ID 1234571422

SIEMENS

SIEMENS

Siemens circuit breaker motor protection switch 0.22-0.32A 3RV1011-0DA10


Item number VN-2297
EAN 4011209263451
Condition New
Available quantity
EUR 9.00 *
Content 1 piece
immediately available
* Incl. VAT excl. Shipping
